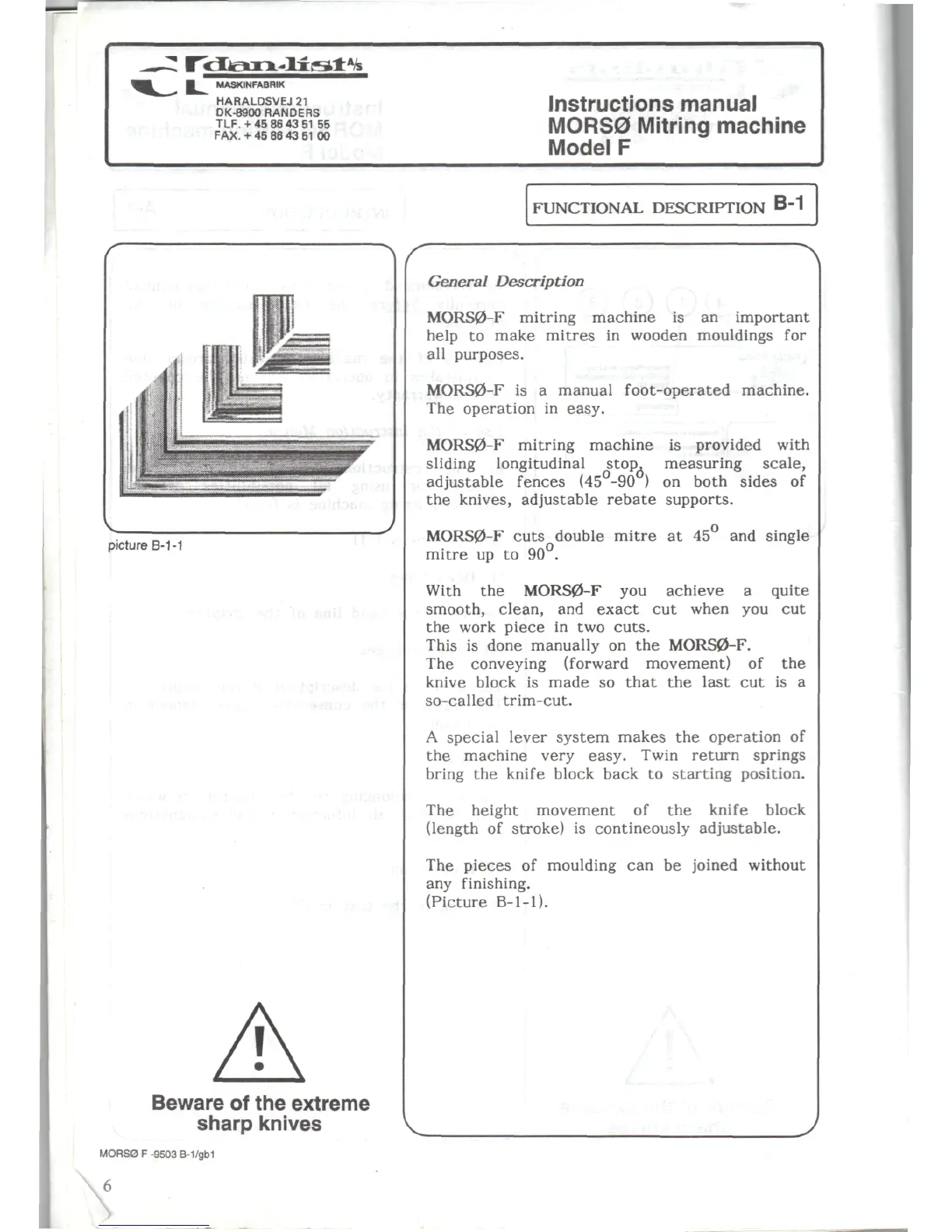

Instructions

manual

MORS0

Mitring machine

Model

F


B-1-1

FUNCTIONAL

DESCRIPTION

B-1

Beware

of

the

extreme

sharp

knives

General

Description

MORS0-F

mitring machine

is an

important

help

to

make

mitres

in

wooden mouldings

for

all

purposes.

MORS0-F

is a

manual foot-operated machine.

The

operation

in

easy.

MORS0-F

mitring machine

is

provided with

sliding

longitudinal stop, measuring

scale,

adjustable

fences

(45°-90

) on

both

sides

of

the

knives, adjustable

rebate

supports.

MORS0-F

cuts

double

mitre

at 45 and

single

mitre

up to

90°.

With

the

MORS0-F

you

achieve

a

quite

smooth, clean,

and

exact

cut

when

you cut

the

work

piece

in two

cuts.

This

is

done manually

on the

MORS0-F.

The

conveying

(forward

movement)

of the

knive

block

is

made

so

that

the

last

cut is a

so-called

trim-cut.

A

special

lever

system

makes

the

operation

of

the

machine very

easy.

Twin return springs

bring

the

knife

block back

to

starting position.

The

height movement

of the

knife

block

(length

of

stroke)

is

contineously adjustable.

The

pieces

of

moulding

can be

joined without

any

finishing.

(Picture B-1-1).
