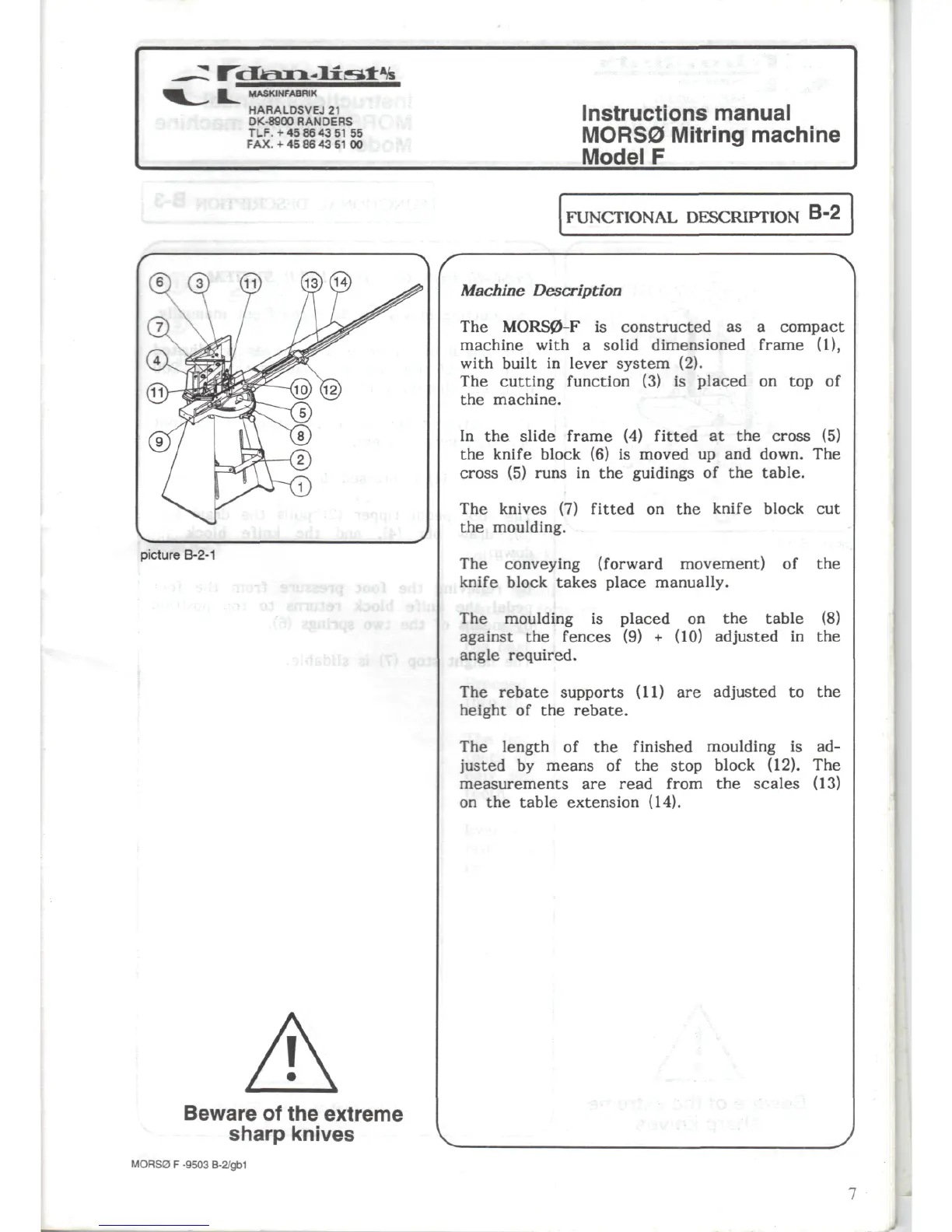

Instructions

manual

MORS0 Mitring machine

Model

F

FUNCTIONAL

DESCRIPTION

B-2


B-2-1

I

Beware

of

the

extreme

sharp knives

Machine

Description

The

MORS0-F

is

constructed

as a

compact

machine with

a

solid dimensioned frame (1),

with

built

in

lever

system

(2).

The

cutting function

(3) is

placed

on top of

the

machine.

In

the

slide frame

(4)

fitted

at the

cross

(5)

the

knife

block

(6) is

moved

up and

down.

The

cross

(5)

runs

in the

guidings

of the

table.

The

knives

(7)

fitted

on the

knife

block

cut

the

moulding.

The

conveying

(forward

movement)

of the

knife

block

takes

place

manually.

The

moulding

is

placed

on the

table

(8)

against

the

fences

(9) +

(10) adjusted

in the

angle

required.

The

rebate

supports

(11)

are

adjusted

to the

height

of the

rebate.

The

length

of the

finished moulding

is ad-

justed

by

means

of the

stop block (12).

The

measurements

are

read

from

the

scales

(13)

on

the

table extension (14).

MORS0

F

-9503

B-2/gb1
