helio A7

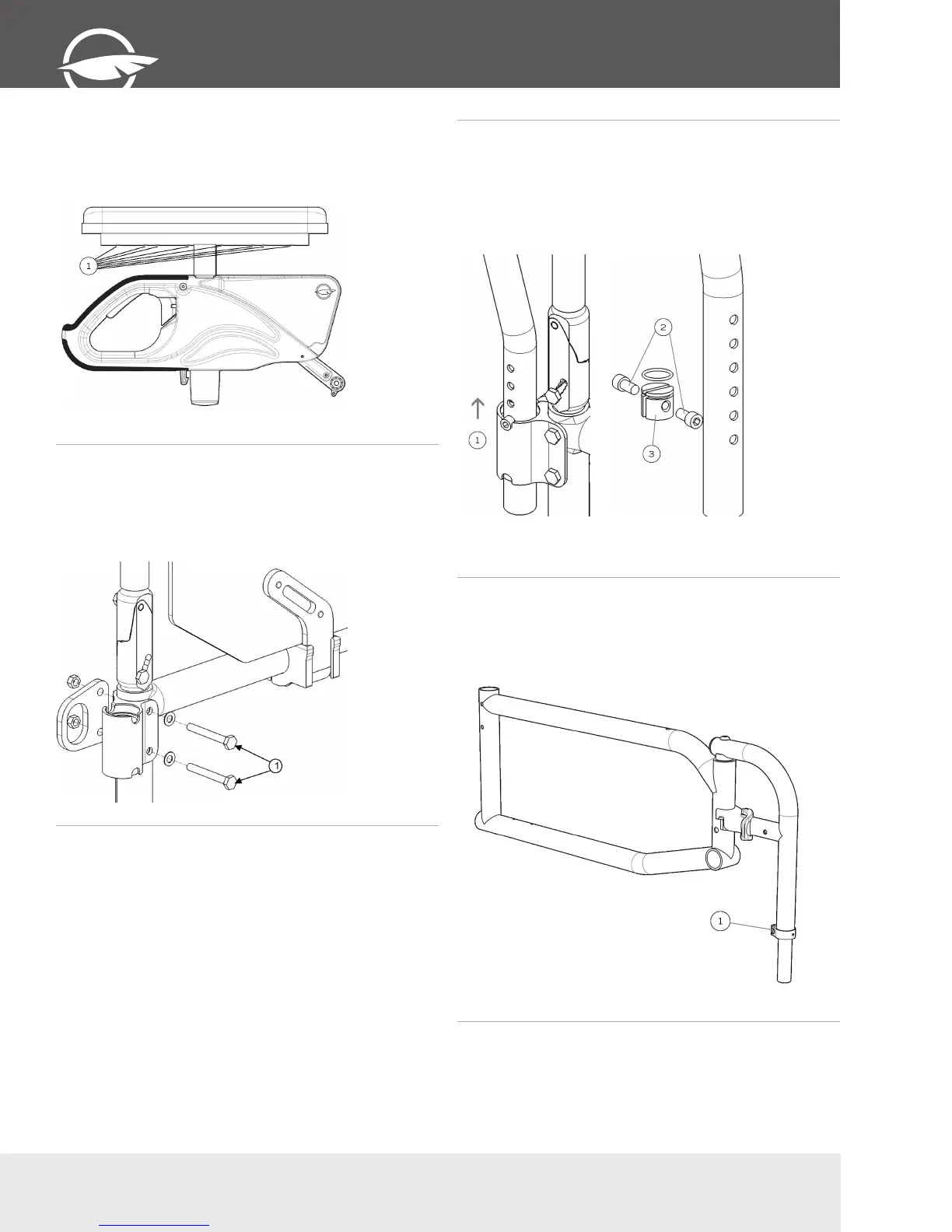

10.6.4 Replacing Armrest Pad

• Remove screws (1) located under pad (through the tube).

• Replace with new armrest pad.

• Reinstall screws (1) and tighten ﬁrmly.

10.6.5 Installing the Swing-away Armrest

receiver

• Remove the two bolts (1).

• Align the armrest receiver with the mounting holes of the

frame and of the transit securement anchor.

• Reinstall the bolts and tighten ﬁrmly.

10.6.6 Adjusting Swing-away Armrest height

• Pull the armrest out of the receiver (1).

• Remove screws (2).

• Inside the armrest tube, slide the dowel nut with a long

screwdriver at the desired height (3)

• Reinstall screws (2).

• Reinsert armrest in receiver.

10.7 Front riggings

10.7.1 Adjusting Footrest length

• Loosen screw (1).

• Slide the extension tube inside the front rigging at the desired

length.

• Tighten screw (1) ﬁrmly.
