Feature Description
Universal Time Display Displays universal time on the home screen.
User Profile List Displays the list of available User Profiles.
Shortcuts List Displays the list of shortcuts.
3.6
Display
This section presents the default home screen elements of the radio.

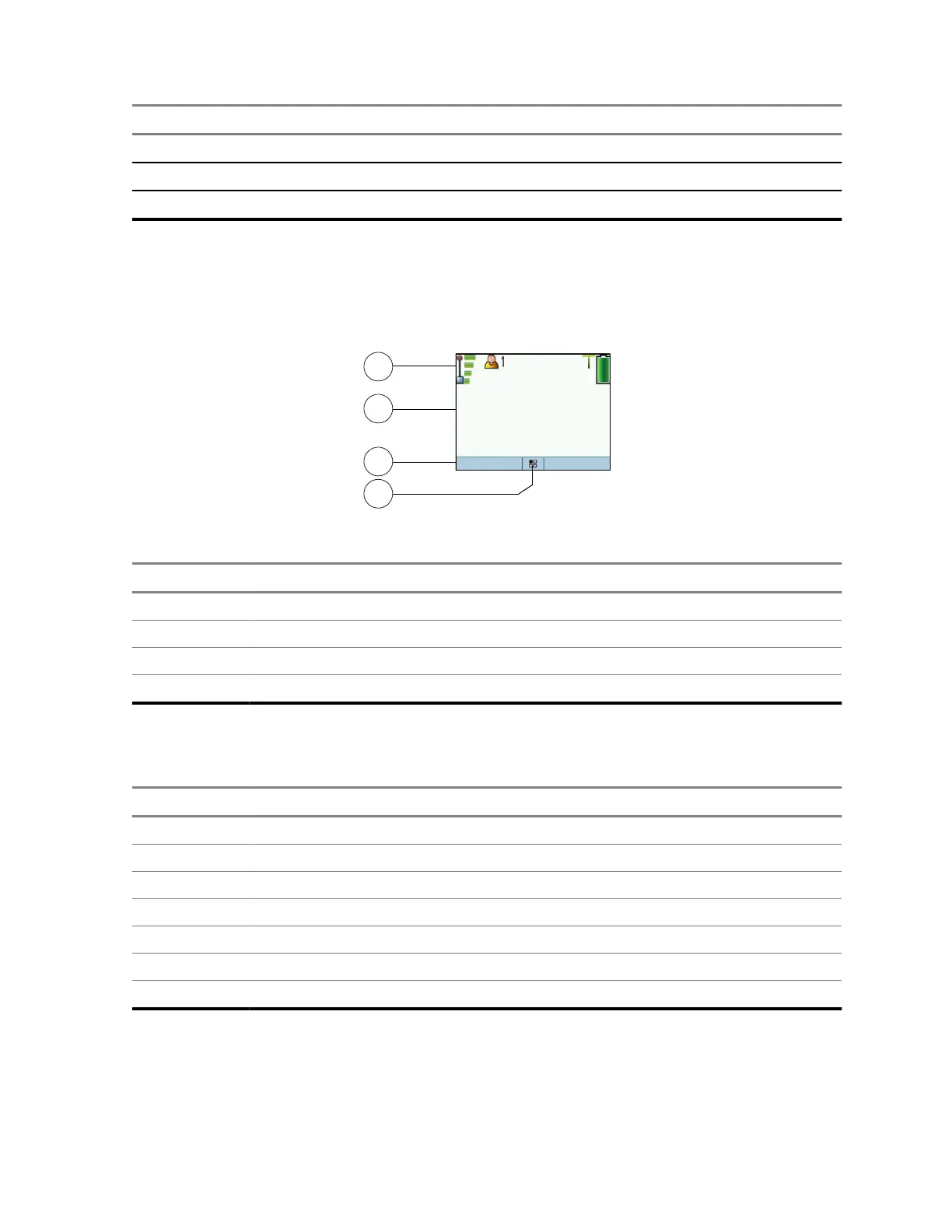

Figure 9: Default Home Screen with Icons
1
2
3
4
Network
Talk Group
User Profile 1
Options Messages
Table 13: Display
Annotation Description
1 Status icon area
2 Text display area
3 Soft key area
4 Menu/Context sensitive icon
The color of the Soft key area changes according to the mode the radio is in.
Table 14: Colors of the Soft Key Area
Color Mode or State
Light blue Normal TMO and DMO Modes
Light red Emergency Mode or Disaster Alert Call
Olive Local Site Trunking Mode
Yellow Call Out – Standby
Red Call Out – Alert
Green Call Out – Accepted
Blue Radio Messaging Service (RMS)
