Motorola DP1400 Series

4-2 Radio Programming and Tuning: AirTracer Application Tool
4.3 AirTracer Application Tool
The MOTOTRBO AirTracer application tool has the ability to capture over-the-air digital radio traffic
and save the captured data into a file. The AirTracer application tool can also retrieve and save
internal error logs from MOTOTRBO radios. The saved files can be analyzed by trained Motorola
personnel to suggest improvements in system configurations or to help isolate problems.
4.4 Radio Tuning Setup
A personal computer (PC), Windows 8/7/Vista/XP and a tuner program are required to tune the
radio. To perform the tuning procedures, the radio must be connected to the PC and test equipment
setup as shown in Figure 4-2.

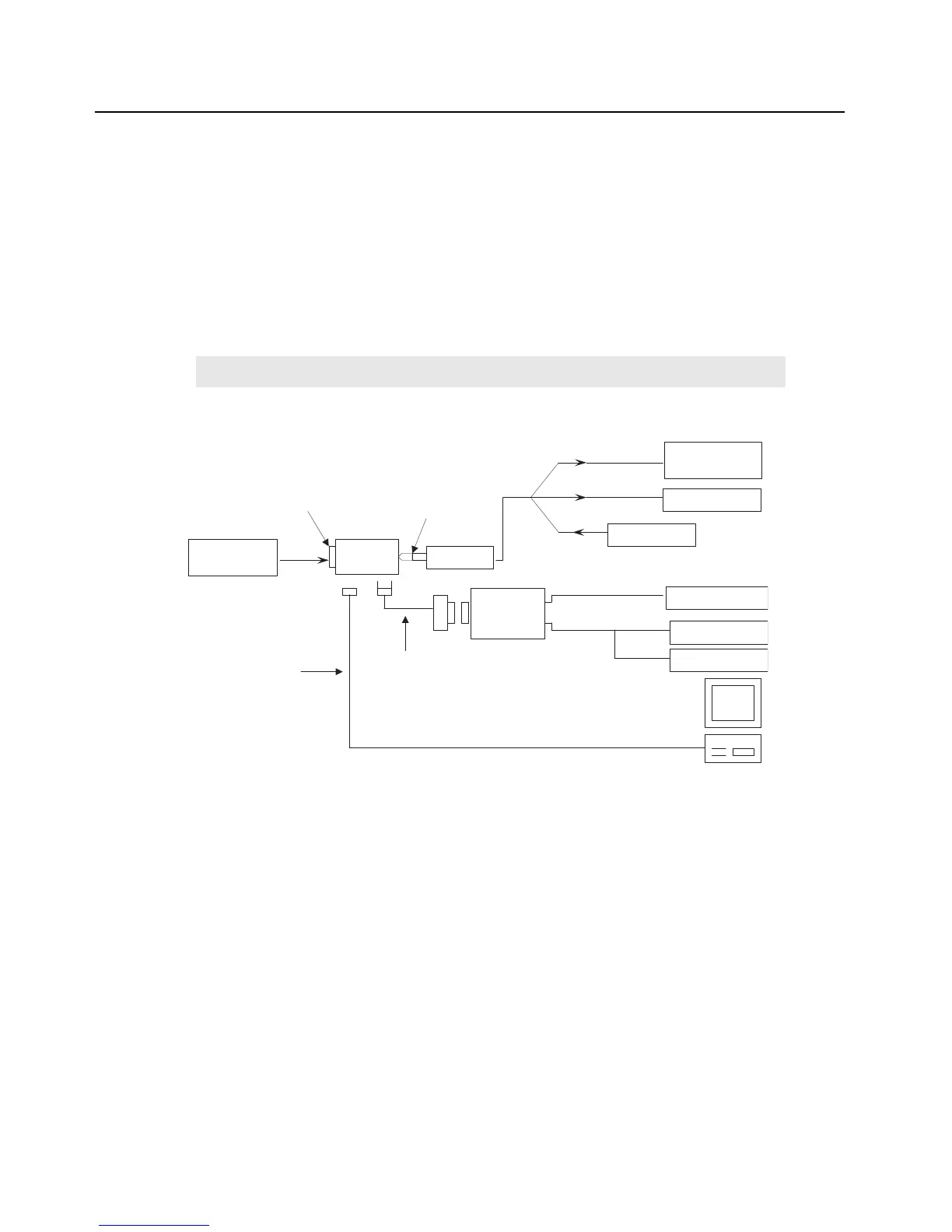

Figure 4-2. Radio Tuning Equipment Setup
NOTE
Refer to the appropriate program online help files for the tuning procedures.
Service Monitor
Or Counter
Wattmeter
RF Generator
Audio Generator
Sinad meter
AC Voltmeter
Test Box
RLN4460_
Radio
+12VDC
Power Supply
Battery Eliminator
7.5V Reg. 0180305K08EPP
10dB pad
RF Adaptor
Transmit
Receive
Audio In
Tx
Rx
PC
Portable Programming
Cable PMKN4128_
Portable Test
Cable PMKN4156_
