Motorola MBP33BU User Manual

1. Display (LCD screen)
2. Vol + Key
)
Normal Mode: Vol Up
Menu Mode: Up
3. Vol - Key
(
Normal Mode: Vol Down
Menu Mode: Down
4. Brightness + Key
]
Normal Mode: Brightness up
Menu Mode: Right
5. Brightness - Key
[
Normal Mode: Brightness down
Menu Mode: Left
6. Menu Key
M
Press to open the Menu options
7. OK Key O
8. Video ON/OFF Key
V
Press to turn OFF the LCD
display
Press again to turn ON the
LCD display
9. Tal k Key
T
Press and hold to speak to
your baby
10. Power Adapter / Battery LED
BLUE when mains adapter
power on.
Flashes BLUE when battery
charging.
Flashes RED when battery low.
11. Unit ON/OFF LED (Green)
12. Audio Level LED (Green,
Orange, Red, Red)
13. Microphone
14. Power Key
P
Press and Hold to turn the unit
ON/OFF
15. Antenna
Lift the antenna for optimal
reception
16. Battery cover
17. Stand
18. Speaker
19. USB connector
Connection to AV output
* AV Cable (Optional accessory,
to be purchased separately)
20. Power Adaptor connector

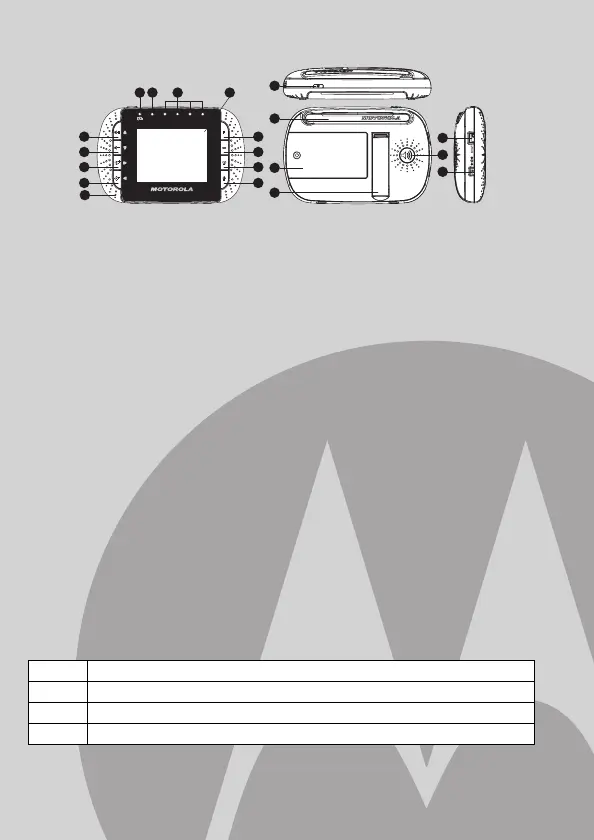

Overview of the Parent Unit
18
15
11
14
13
16
17
19
20
6
7
8
9
2
3
4
5
10 12
1
Parent unit menu icons
1
Signal Level (5 Levels)
N
Night Vision Mode (Screen changes to Black/White)
T
Talk Mode
Battery Level Control (4 Levels)
B

Motorola MBP33BU Specifications

General

Brand	Motorola
Model	MBP33BU
Category	Baby Monitor
Language	English
