Motorola MCS2000 Series User Manual

10/03

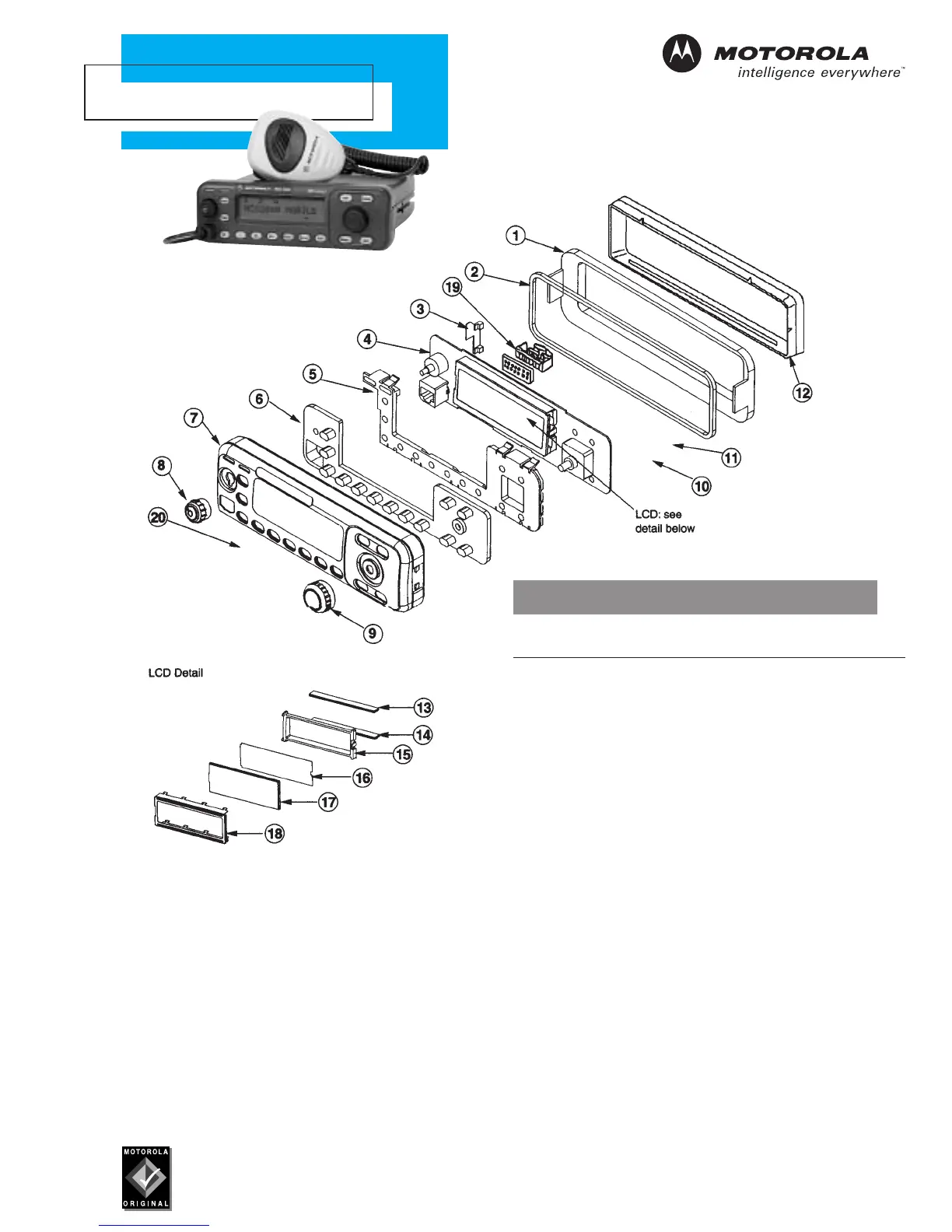

Parts List
MCS2000 Series
REF.
NO. PART NO. DESCRIPTION
1 1502455Y05 Housing, Back
2 3202462Y03 Gasket, Housing
3 4602100U01 PCB Retainer
4 HCN4058 PCB Assembly*
5 6102082U04 Light Guide
6 7502565Y04 Keypad, standard with Text
6a 7505241Z03 Keypad, for use with Replaceable
Pushbuttons
7 1502100U14 Housing, Control Head Model II
8 3605893W02 Volume Knob
9 3602100U01 Rotary Knob
10
--- Ferrite Plate†
11 1580365K01 Shroud, white†
12 0704779P01 Retention Frame
13 2802102U01 Connector, Elastomeric – Gray
14 2802101U01 Connector, Elastomeric – Pink
15 0702103U01 Frame, LCD
16 9102102U01 Reflector Sheet
17 7202076U04 Display Glass
18 1302100U01 Bezel
19 3280542K01 Adhesive Pad
20
--- Replaceable Pushbutton**
* Radios with SDLN4192 may use HCN4058 as replacement
** Refer to Service Manual
† Parts have been eliminated
Control Head Model II
