Motorola MCS2000 Series User Manual

10/03

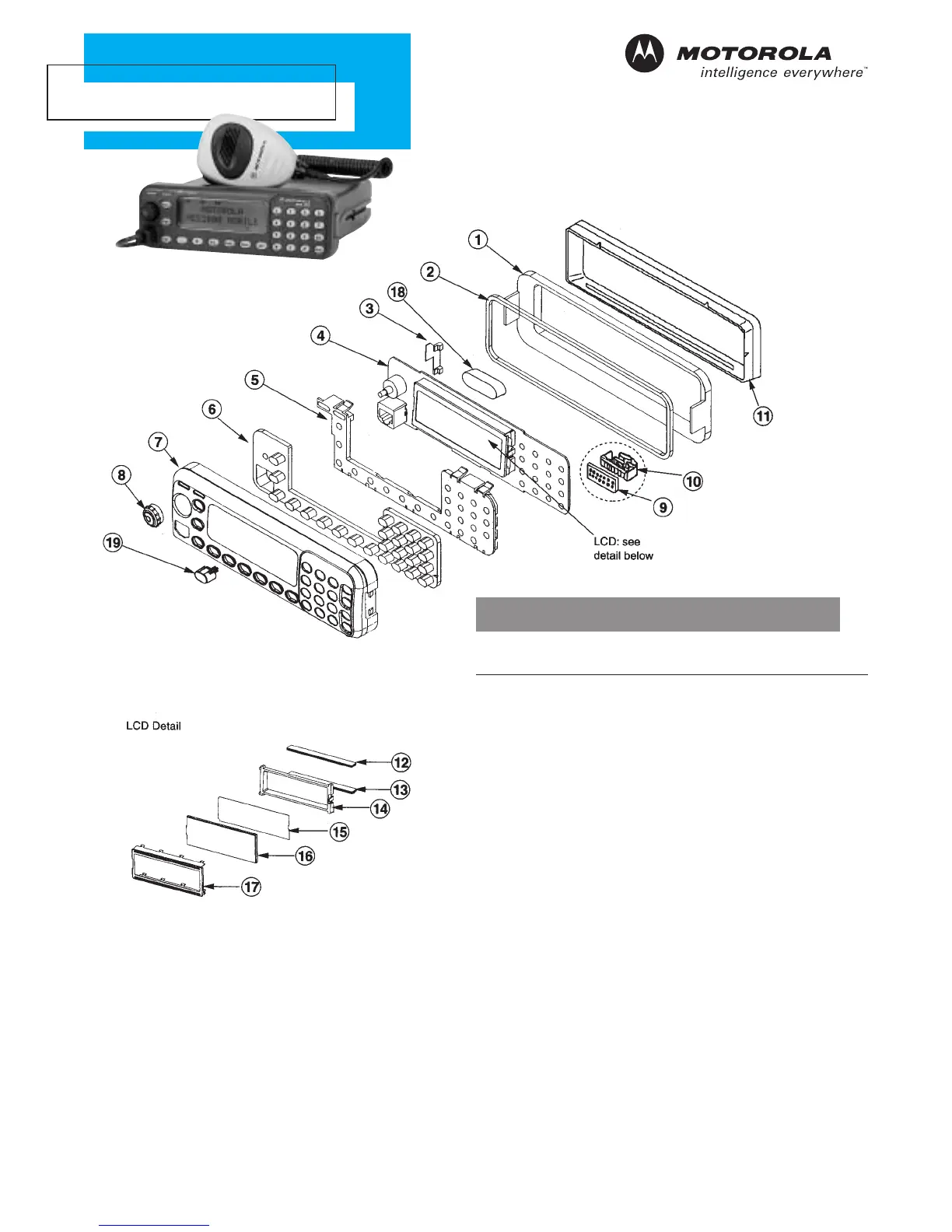

Parts List
MCS2000 Series
REF.
NO. PART NO. DESCRIPTION
1 1502455Y05 Housing, Back
2 3202462Y03 Gasket, Housing
3 4602100U01 PCB Retainer
4 HCN4059 PCB Assembly
1
5 6102082U04 Light Guide
6 7502566Y04 Keypad
6a 7505242Z03 Keypad, for use with Replaceable
Pushbuttons
7 1502100U15 Housing, Control Head Model III
8 3605893W02 Volume Knob
9
--- Ferrite Plate
2
10 1580365K01 Shroud, white
2
11 0704779P01 Retention Frame
12 2802102U01 Connector, Elastomeric – Gray
13 2802101U01 Connector, Elastomeric – Pink
14 0702084U02 Frame, LCD
15 9102102U01 Reflector Sheet
16 7202076U03 Display Glass
17 1302085U01 Bezel
18 3280542K01 Adhesive Pad
19
--- Replaceable Pushbutton
3
1 Radios with SDLN4193 may use HCN40589 as replacement
2 Parts have been eliminated
3 Refer to Service Manual
Control Head Model III
