Motorola MCS2000 Series User Manual

10/03

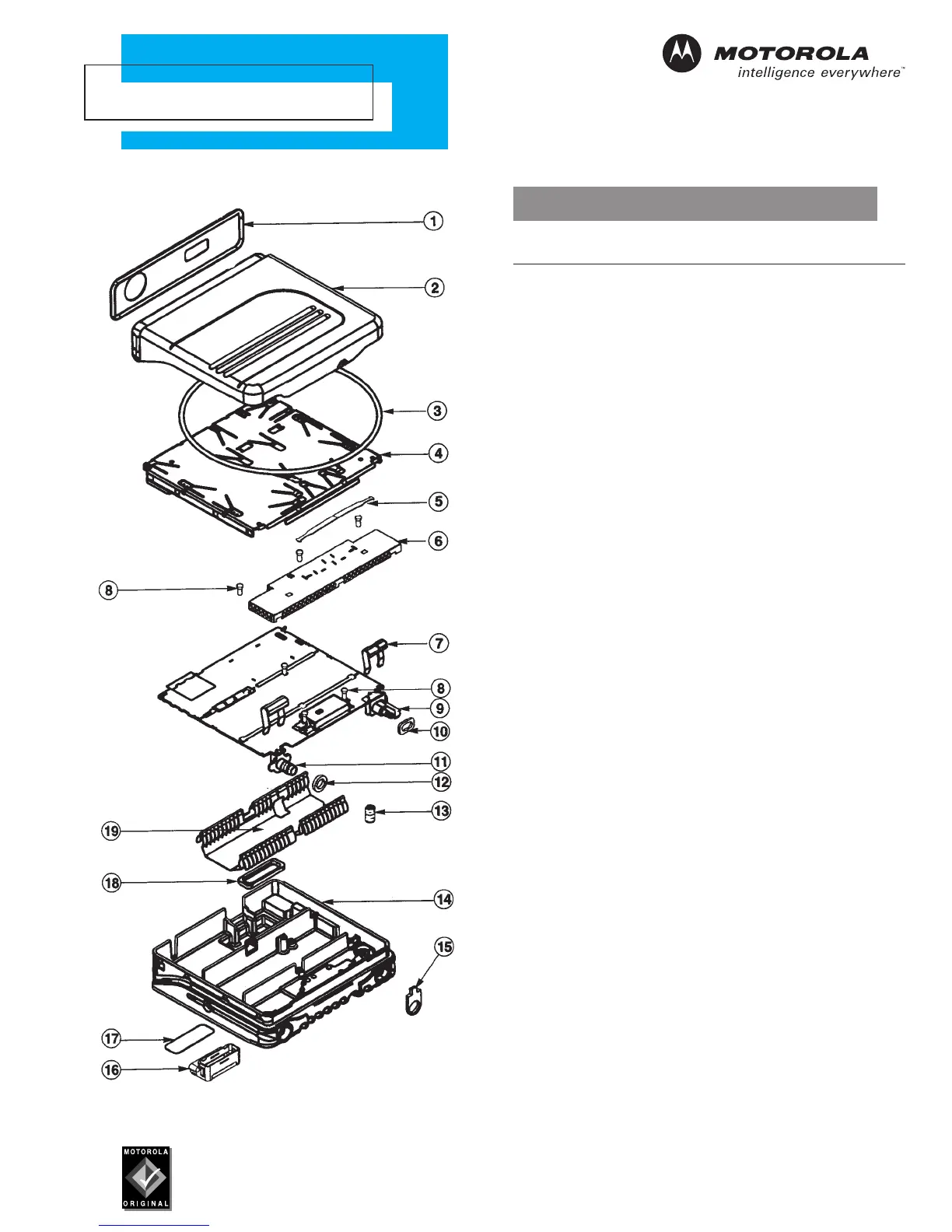

Parts List
MCS2000 Series
REF.
NO. PART NO. DESCRIPTION
1 3205931V02 Gasket, Front Cover
2 1505908V02 Top Cover
3 3205934V01 Gasket, Top Cover
4 2605652W02 Pressure Plate
5 5584300B04 Handle, 800 MHz only
6 2604802K01 PA Shield, 800 MHz only
7 4205938V01 Clip Spring, 2 pcs.
8
--- Screw, M3X0.5X10, 6 pcs.*
9 --- Power Connector
10 3205457Z02 Gasket, Power Connector
11 0905901V08 Antenna Connector
12 3205457Z01 Gasket, Antenna Connector
13 4105783W01 Spring Diode
14 2705920V07 Chassis, Low Power
15 4205940V01 Retainer, Accessory Connector Cable
16 HLN6412 Accessory Connector
17
--- Label
18 3205935V01 Gasket, 25 D Connector
19 2604555E01 Board Slot Shield, 800 MHz only
