Motorola MCS2000 Series User Manual

10/03

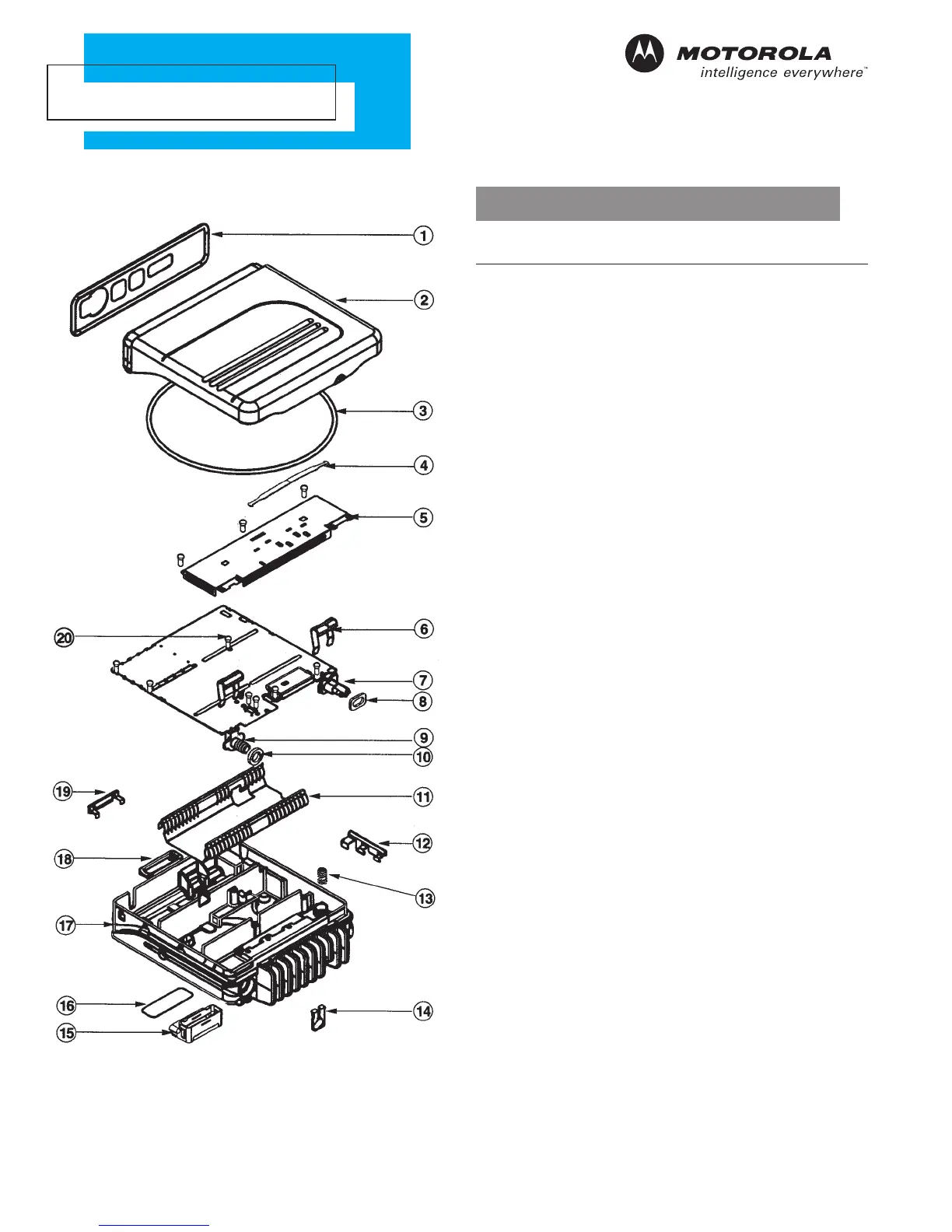

Parts List
MCS2000 Series
REF.
NO. PART NO. DESCRIPTION
1 3205931V02 Gasket, Front Cover
2 1505764X01 Top Cover Assembly
3 3205082E97 Gasket, Top Cover
4 5584300B04 Handle
5 2605625X03 PA Shield
6 4205938V01 Clip Spring, 2 pcs.
7 0905902V04 Power Connector
8 3205457Z04 Gasket, Power Connector
9 0905901V08 Antenna Connector
10 3205457Z01 Gasket, Antenna Connector
11 2604693P01 Board Slot Shield, 800 MHz only
12 4205727X02 Clip, Audio PA
13 4105783W01 Spring Diode
14 4205627X01 Retainer, Accessory Connector Cable
15 HLN6412 Accessory Connector
16 3305873U04 Label, Rear Cover
17 2705816W06 Chassis, Mid Power
18 3205935V01 Gasket, 25 D Connector
19 4205496Y01 Clip, PCB
20 0310907A20 Screw M3X0.5X10, 12 pcs.*
21 0310911A12 Screw M3X0.5X10, 6 pcs.*
* Number of screws can vary depending on the model.
Mid Power Radio

Motorola MCS2000 Series Specifications

General

Frequency Range	VHF: 136-174 MHz
Modulation	FM
Signaling	MDC1200
Channel Spacing	12.5 kHz
Operating Voltage	13.6 V DC
Operating Temperature	-30°C to +60°C
