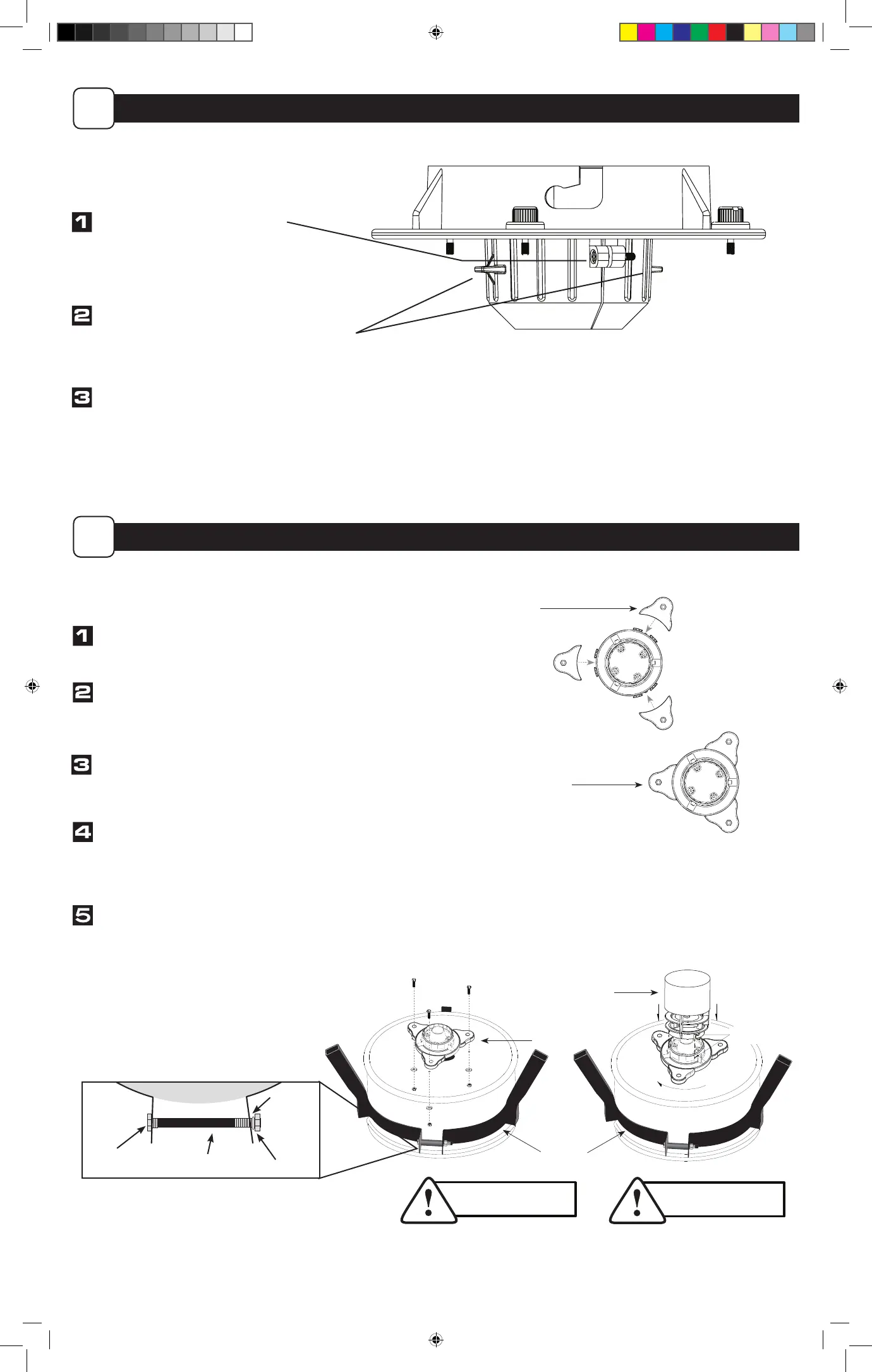

Moultrie Pro Hunter II - Adjust Funnel Height; Position Funnel; Assemble Quick-Lock Adapter; Prepare Barrel and Adapter

1
1
ALIGN LUGS AND
L-SLOTS
2
DO NOT EXCEED 400 LBS
OF FEED IN 55-GAL FEEDERS
Quick-Lock
Feeder Kit
Quick-Lock
Adapter
NOTE: DO NOT LOAD FEEDER until it is standing up and in place (see Section D-4).
Belly Band
Ring
Bolt
Spacer
Lock
Washer
Nut
DO NOT EXCEED 200 LBS
OF FEED IN 30-GAL FEEDERS
Belly Band
Ring
ASSEMBLE WITH MOULTRIE QUICK-LOCK ADAPTER
C
55-Gallon or 30-Gallon Barrel*
Assemble Quick-Lock adapter by snapping bolt tabs in place as shown.
Turn the metal drum upside down and slide the belly band ring
around perimeter and make sure that belly band is snug against
the bottom structure ring as shown (Moultrie barrel only).
Slide the bolt through the belly band ring, spacer and
lock washer as shown. Tighten nut on bolt until metal
belly band ring tabs are touching spacer on each side.
Mount Quick-Lock adapter using (3) 1/4” x 1” bolts, nuts and
washers provided in the pre-drilled holes (Moultrie barrel only).
Or use the Quick-Lock adapter as a template to mark and drill
the mounting holes (non-Moultrie barrel).
Connect Quick-Lock feeder kit to assembled adapter as shown.
*Can also be used on a 6.5-gallon bucket.
Assembled
Quick-Lock
Adapter
Bolt Tabs
ADJUSTING FUNNEL HEIGHT
B
Once the funnel is in desired position,
retighten the screw with Phillips-head
screwdriver. Do not overtighten.
To adjust funnel height:
With a Phillips-head screwdriver,
loosen screw.
With screw loosened, use tabs to position funnel
in one of the two positions by either pushing
down or up depending on desired position.
