Mount-It! MI-15001 - Page 12

12

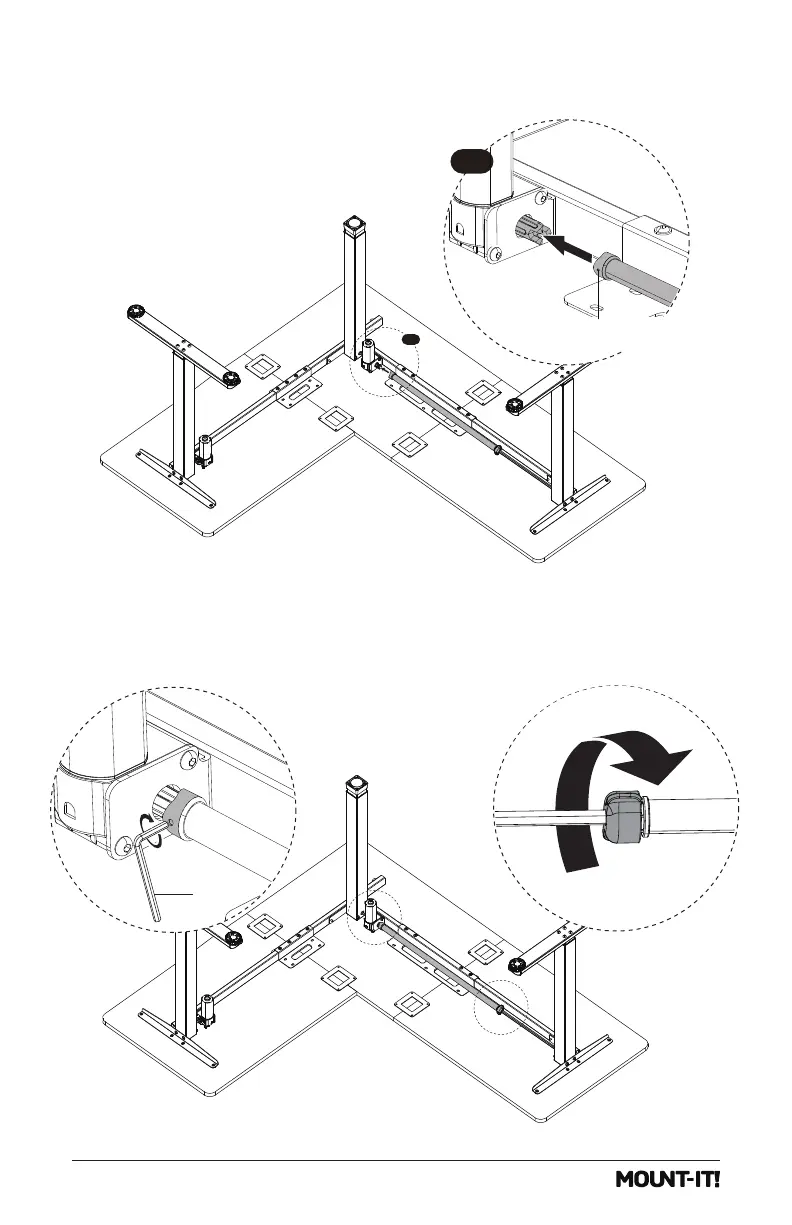

Ensure the transmission rod is properly inserted into the hole in the
left leg. Extend the rod to connect the other end to the motor drive shaft on the Middle Desk Leg.
Secure the transmission rod to the motor drive shaft by turning the set screw clockwise.
Then tighten the coupling nut to fine-tune transmission rod fit.
2
2
NOTE: Make sure the
set screw faces out.
