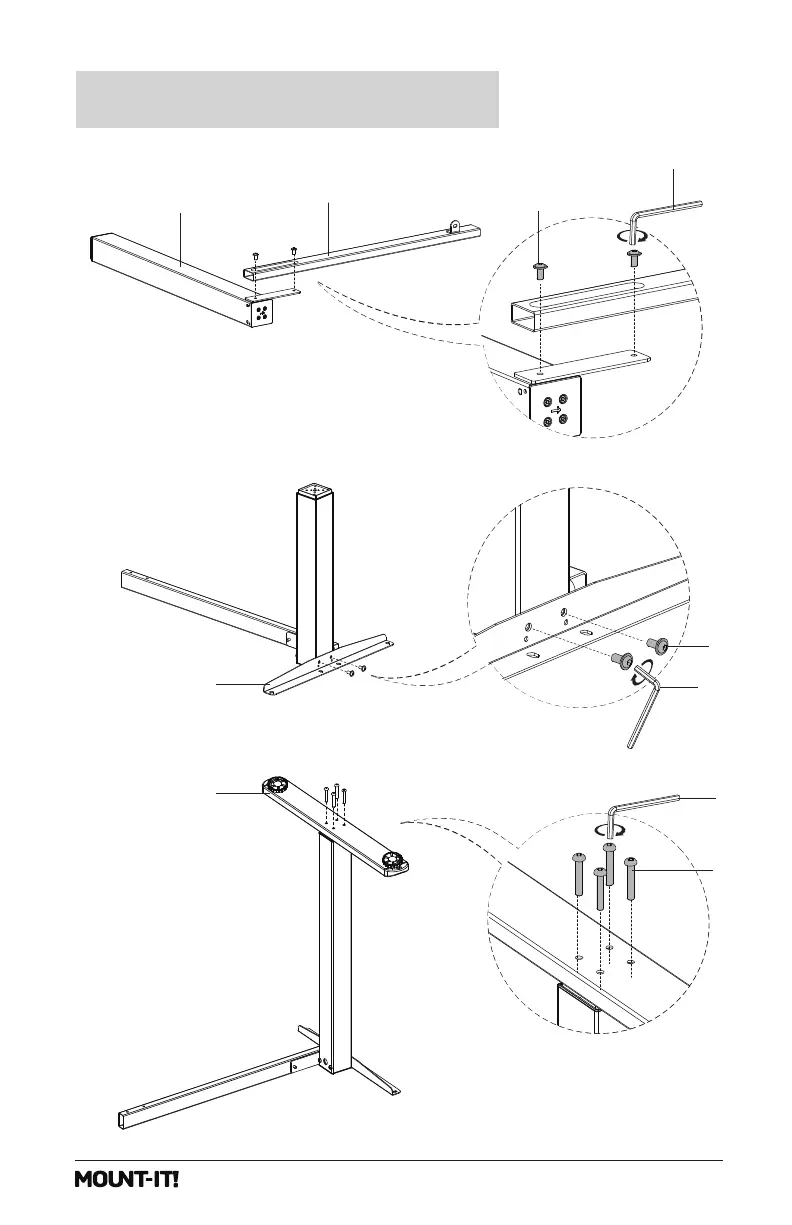

On a flat and open section of the floor, position the Left Leg (#E) and Left Crossbar (#H)
in the configuration shown here. As shown in magnification bubble, using the Bolts (#a)
tighten until secure using the 5mm Hex Wrench (#f).
1-1 Assemble the left leg section
Assembling the Leg Sections
Step 1
f
a
E
H
f
M
L
a
b
f
Attach the Side Plate (#M) to the Left Leg (#E) using Bolts (#a) and tighten until secure using
the 5mm Hex Wrench (#f).Ensure that the Side Plate are oriented as shown in the image.
Attach one of the Feet (#L) to the Leg (#E), using Bolts (#b) and tighten until secure using
the 5mm Hex Wrench (#f).
