6

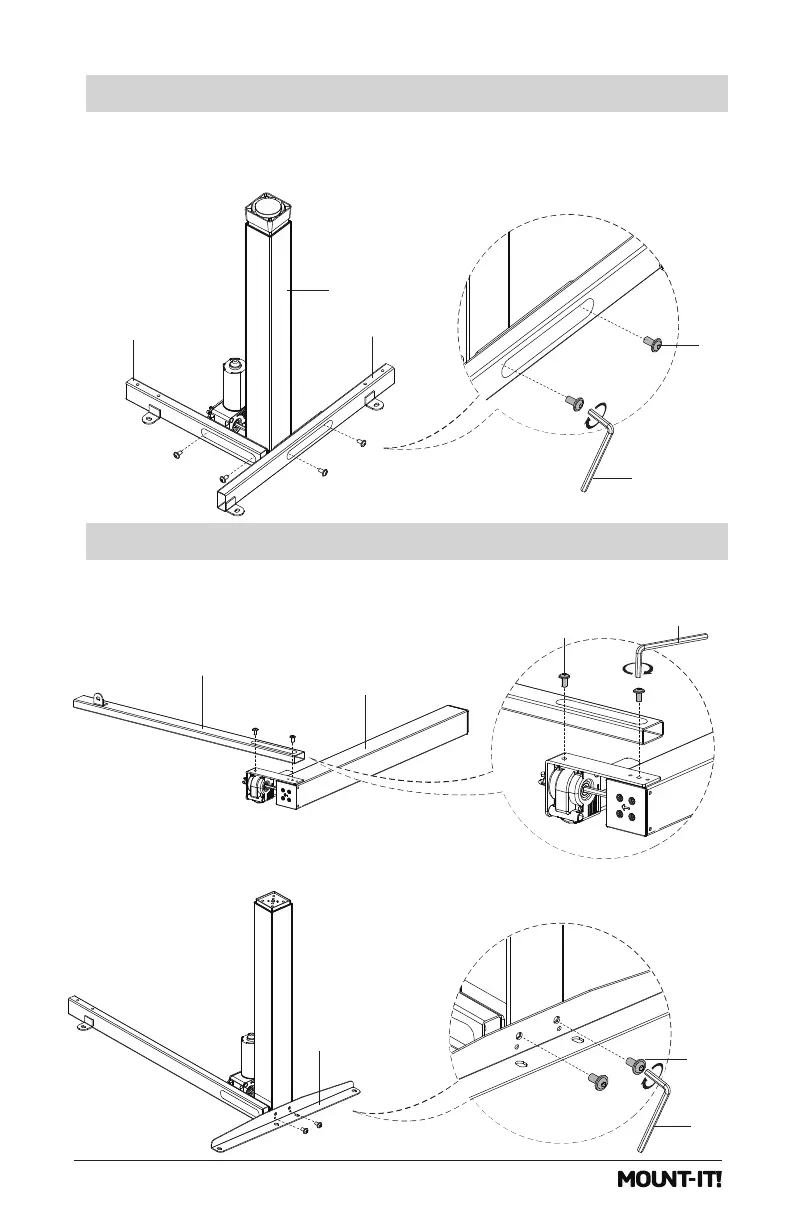

1-2 Assemble the middle leg section
1-3 Assemble the right leg section
On a flat and open section of the floor, position the Middle Leg (#F) and Middle Crossbars (#I
and #J) in the configuration shown here.
As shown in magnification bubble, connect the Leg to the Crossbars using the
Bolts (#a) and tighten until secure using the 5mm Hex Wrench (#f).
position the Right Leg (#G) and Right Crossbars (#K) in the configuration shown here.
As shown in magnification bubble, connect the Leg to the Crossbar using the
Bolts (#a) and tighten until secure using the 5mm Hex Wrench (#f).
Attach the Side Plate (#M) to the Right Leg (#G) using Bolts (#a) and tighten until secure using
the 5mm Hex Wrench (#f).Ensure that the Side Plate are oriented as shown in the image.
M
f
f
I
J
K
G
f
a
a
a
F
To Next Page
