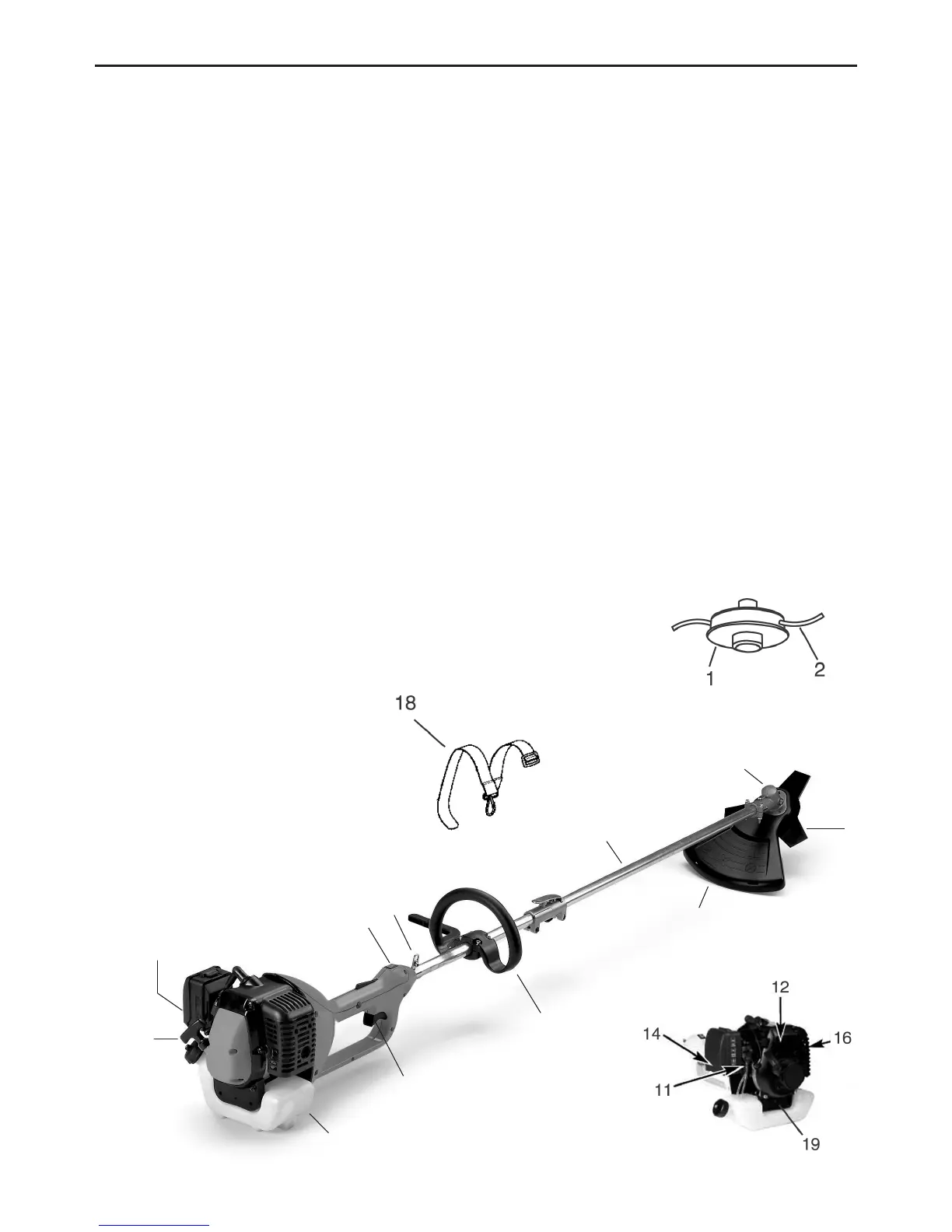

General description
1 Cutting head with nylon
line
2 Cutting line
3 Cutting disk
4 Clutch housing
5 Guard*
6 Drive shaft
7 Handgrip
8 Harness attachment
9 Accelerator control trigger
10 Start-Stop switch
11 Starter control
12 Fan and starter seat
13 Fuel tank
14 Air filter
15 Starting handle
16 Exhaust silencer guard
17 Carburettor ignition
18 Strap
19 Serial number label
SAFETY SPECIFICATIONS
The number preceding the
description is the one identif-
ying the position in the general
description.
5 GUARD must be installed to
prevent foreign bodies from
being thrown up and to prevent
the cutting line from exceeding
the required length
16 EXHAUST SILENCER
GUARD prevents parts of the
body (such as hands) and/or
combustible material from
coming into contact with the hot
parts of the exhaust silencer.
NOTE: for further information
See safety measures and
instructions for maintenance.
