8
ENGLISH
GB
• Always seek professional help when the carbu-
rettor requires adjustment.
• Clean the air filter according to the directions.

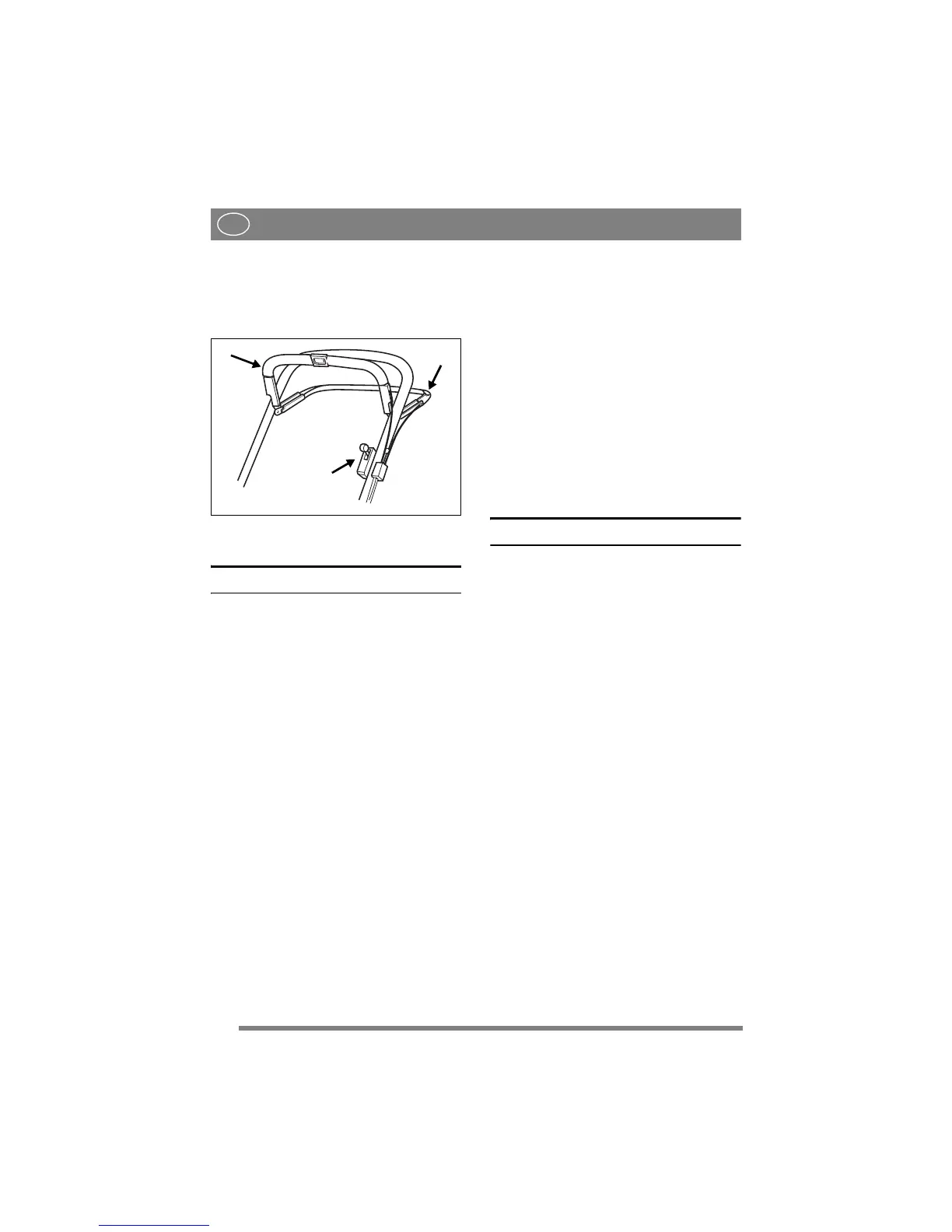

INTRODUCTION
1. Throttle control
2. Power drive lever
3. OPC
INSTALLATION
LOOSE PARTS IN THE BOX
2 brackets for the grass collector
4 screws for the brackets
1 Allen key
1 socket wrench
+ Instruction books
HANDLE
1. Fold up the lower part of the handle.
2. Install the upper part of the handle mounts using
screws, washers and locking wheels. A lug is
installed on the right hand side for the starter
handle (fig. 1).
3. Then tighten the locking wheels onto the lower
part of the handle. When these have been tight-
ened, the height of the handle can be adjusted by
tightening the screws B with the wrench provid-
ed. (fig. 2)
ENGINE BRAKE CABLE
Secure the engine brake cable to the engine brake
(fig. 3). Note that the cable should be installed in
the direction of the handle.
CABLE HOLDER
Secure the cables in the cable holders (fig. 4):
D: Start/Stop cable + Clutch cable
E: Throttle cable + Clutch cable
GRASS COLLECTOR
Raise the collector flap and attach the two brackets
to the grass collector with the screws provided.
The brackets are marked with L and R and should
be installed at the corresponding mark on the rear
of the mower (fig. 5).
Fit the fabric bag over the steel frame and then
snap the bag onto the plastic lid (fig. 6).
Open the flap on the machine and attach the grass
collector to the brackets.
NOTE! The lawnmower can be operated without
the grass collector. The grass is then left in a line
behind the machine.
USING THE MOWER
COMBI
Your new lawnmower combines two different
functions in the same machine:
1. “MULTICLIP“
The machine comes equipped with a plug to install
in the ejector opening (fig. 19). The machine can
be used for ‘Multiclip’ i.e. the blade finely cuts up
the grass during mowing. The grass then falls into
the lawn where it is allowed to rot. This provides
the lawn with nourishment.
To install the plug, press in the catch (S) and en-
sure that both pins are pressed firmly into the holes
so that the plug snaps in place.
2. COLLECTION
Assemble the grass collector provided (fig. 6).
Open the flap, remove the plug and instead hook
the collector onto the rear of the machine.
When mowing, the grass is collected in the collec-
tor. Empty the grass onto the compost heap or
spread it over borders as fertiliser. The machine is
also ideal for collecting up leaves in the autumn.
STOP
1
3
2
