Mountup MU0005 - Assembly Steps

OPTION A: Clamp Installation

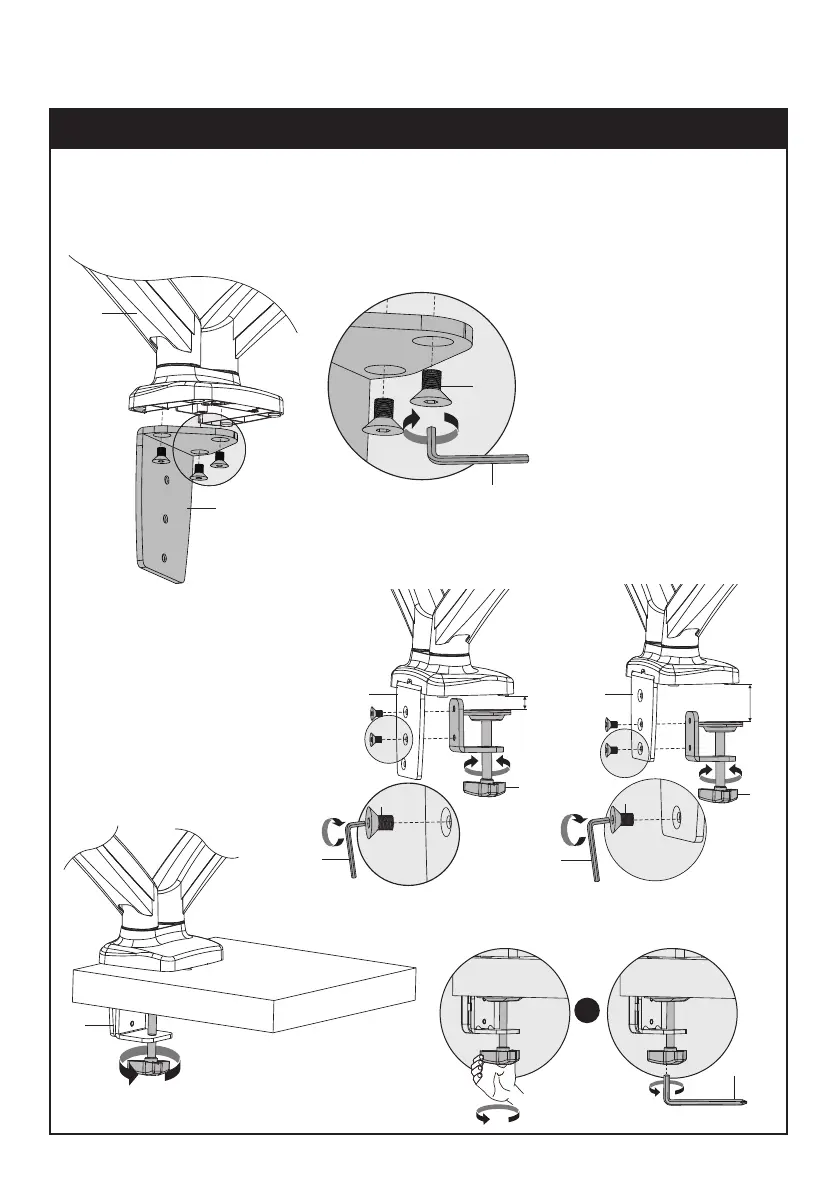

Mount bracket (C) to bottom of gas spring arm (A) using bolts (E). Tighten using 4mm allen key (K).
Attach clamp (D) to bracket (C) using bolts (E) and 4mm allen key (K). Mount according to thickness of desktop.
Secure stand to desktop by tightening clamp (D) or by using 6mm allen key (M).
ASSEMBLY STEPS
STEP 1: Clamp Installation OR Grommet Base Installation
02
D
K
10-90mm
E
D
10-60mm
K
E
-2a
M
OR
C
D
C
A
K
E
C
