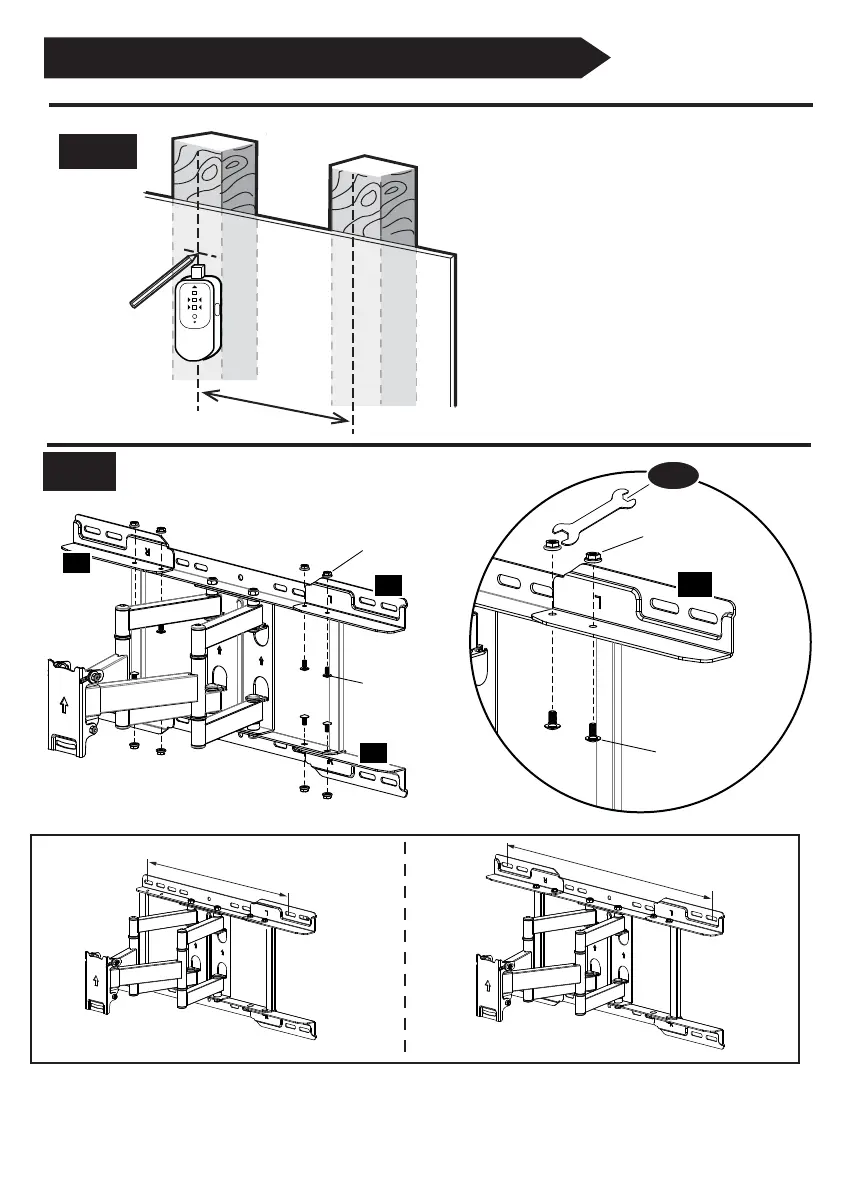

STEP 2A Wall Plate Installation (Wood Stud)
2A-1
Locate your studs. Verify and mark
the center of the studs by finding
the stud edges using an awl, a thin
nail, or an edge-to-edge stud finder,
then measure the space of the
studs and record.
18in to 24in
2A-2 Attach the Extensions to the Wall Plate
Only one side need to attach each of extension L and R
For studs with the 18” sapce
6L
6R
6R
Bolts
M6 x 12
Nuts
M6
6L
Nuts M6 from
extention kit
Bolts M6 x12 from
extention kit
18“
For studs with the 24” sapce
24“
- 6 -
C
To Next Page
