2A-3
2A-4

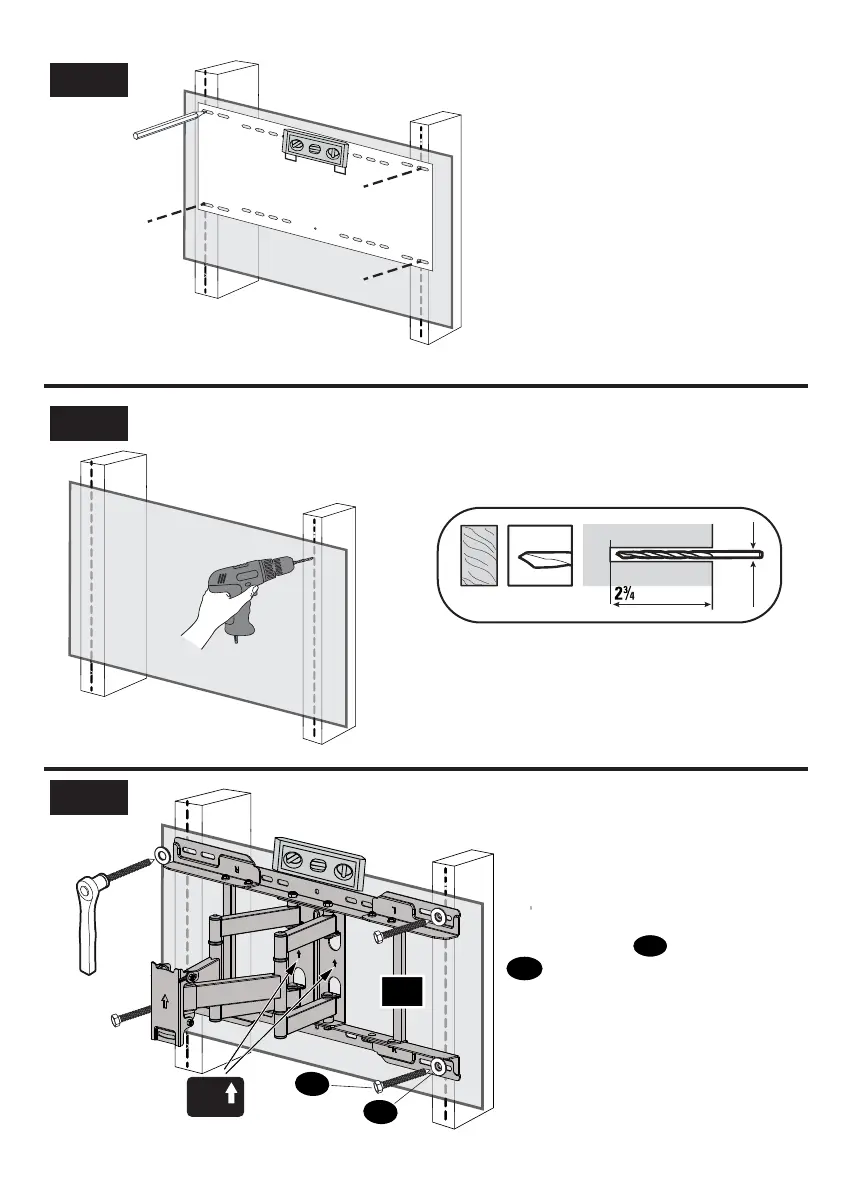

Position the mounting template
at your desired height and line
up the holes with your stud
center line. Level the
mounting
template
and mark the pilot
hole locations.
Drill pilot holes using a 7/32 in. (5.5 mm)
diameter drill bit.
Drill Pilot Holes
2A-5
01
UP
X
X
X
X
7/32 in.
Ø5.5 mm
in. (70 mm)
2
A
B
Mount wall plate using 4 sets of
5/16 lag bolts (a) and washers
B with a 1/2 in. socket wrench
(not included).
B
A
- 7 -
Mounting template
