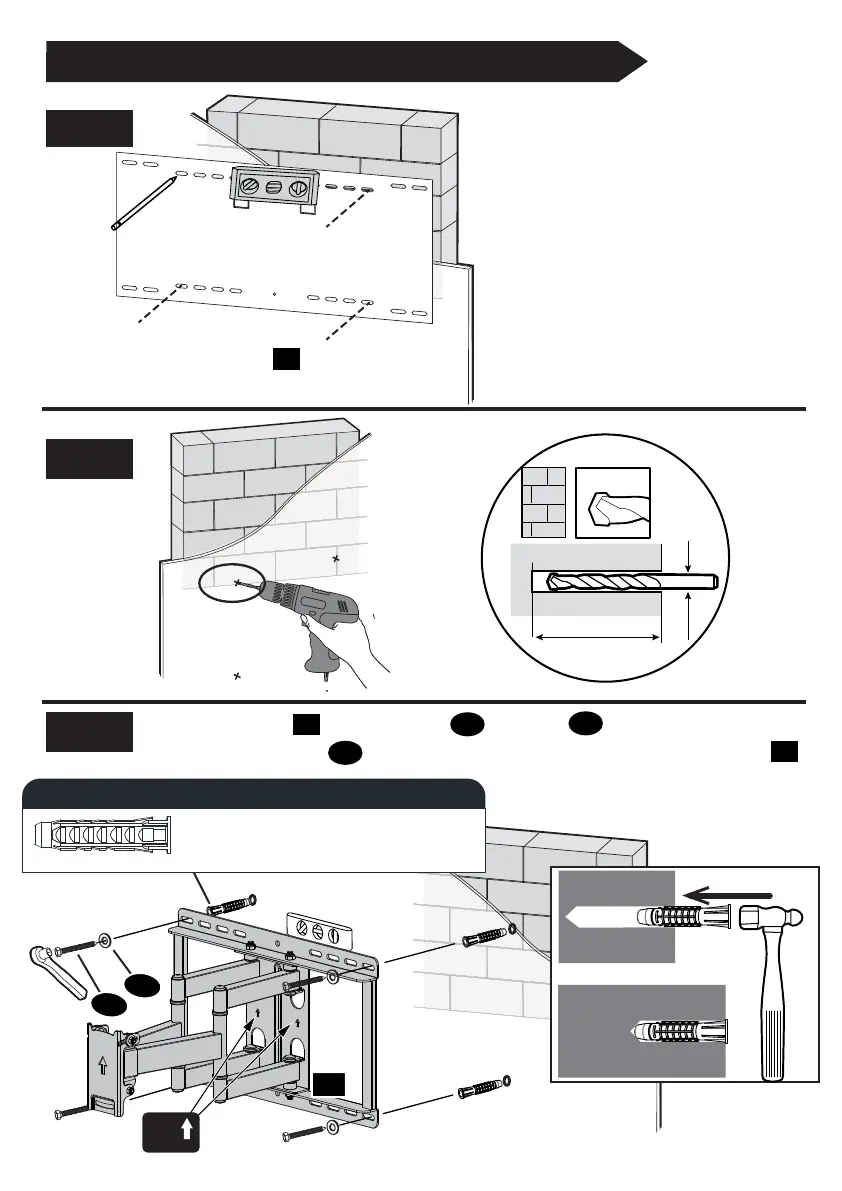

STEP 2B Wall Plate Installation (Concrete or Brick)
- 7 -
2B-1
Position the mounting template
at your desired height , level
the mounting template and
mark the pilot hole locations.
(no need to use the extensions
for the concrete or brick
installing).
Mounting template
01
Drill pilot holes
2B-2
2B-3
2.75in 70 mm
Ø 10 mm
Ø 10 mm
Concrete Wall
Concrete Wall
01
A
B
01
Install wall plate using lag bolts , washer and anchor (not included).
Tighten the lag bolts until they are pulled firmly against the wall plate .
A
A
B
Contact us by email help@jollyholding.com to have
these additional pieces shipped directly to you.
Concrete Wall Anchor 4pcs
Concrete wall anchor (NOT INCLUDED)
01
UP
- 8 -
