3-3
P1
P2
Remove the preassembled screws and washers to save to use.
STEP 3
Install wall plate using lag bolts , washer and anchor (not included).
Tighten the lag bolts until they are pulled firmly against the wall plate .
P2
P1

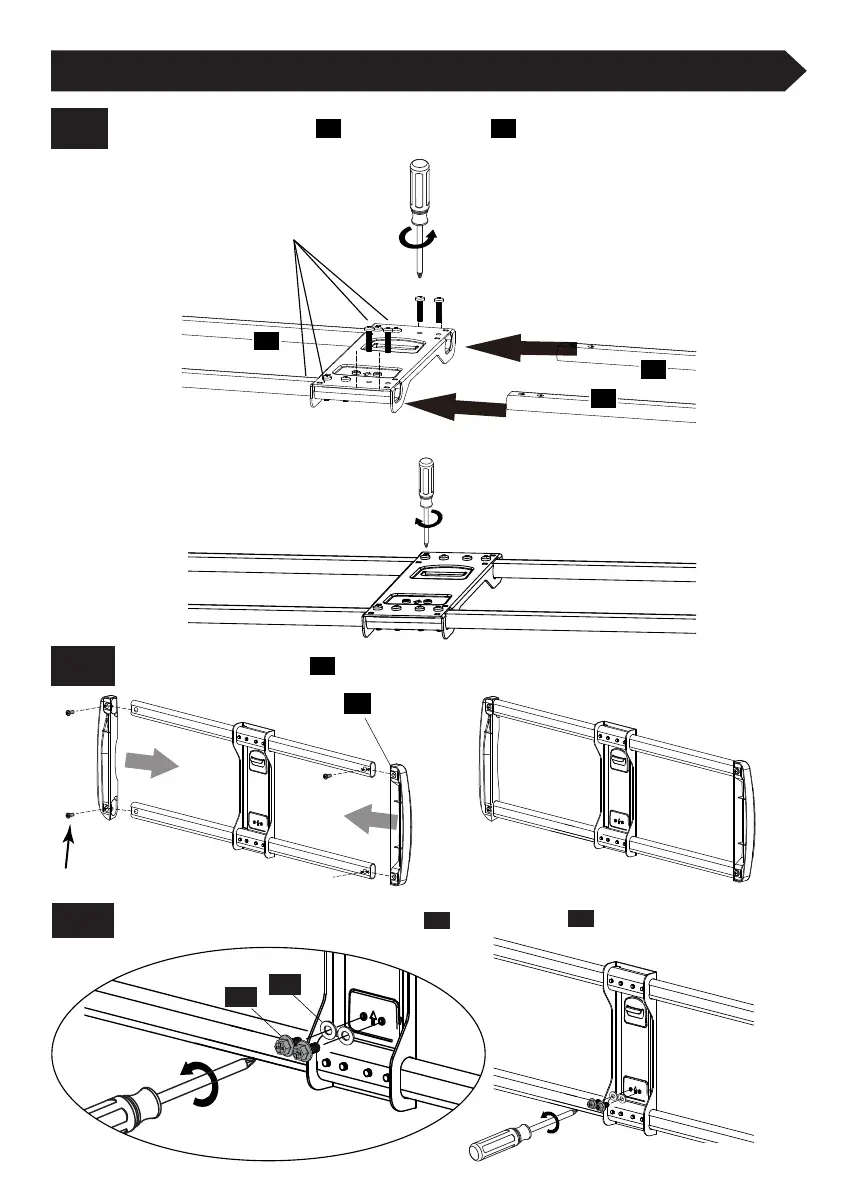

STEP 3 Install Front Support and Extensions and End Cap together
Install the extensions [03] to front support [02] with the pre-assembled screws.
Install the end cover [03] to front support with the pre-assembled screws.
3-1
3-2
Pre-assembled scews
Finished
05
- 9 -
2. Remove the pre-assembled screws x4
3. Insert the arm extension
1. Loosen a little
02
03
03
03 02
05
4. Fasten the all 8 screws
To Next Page
