STEP 3: (Continued)

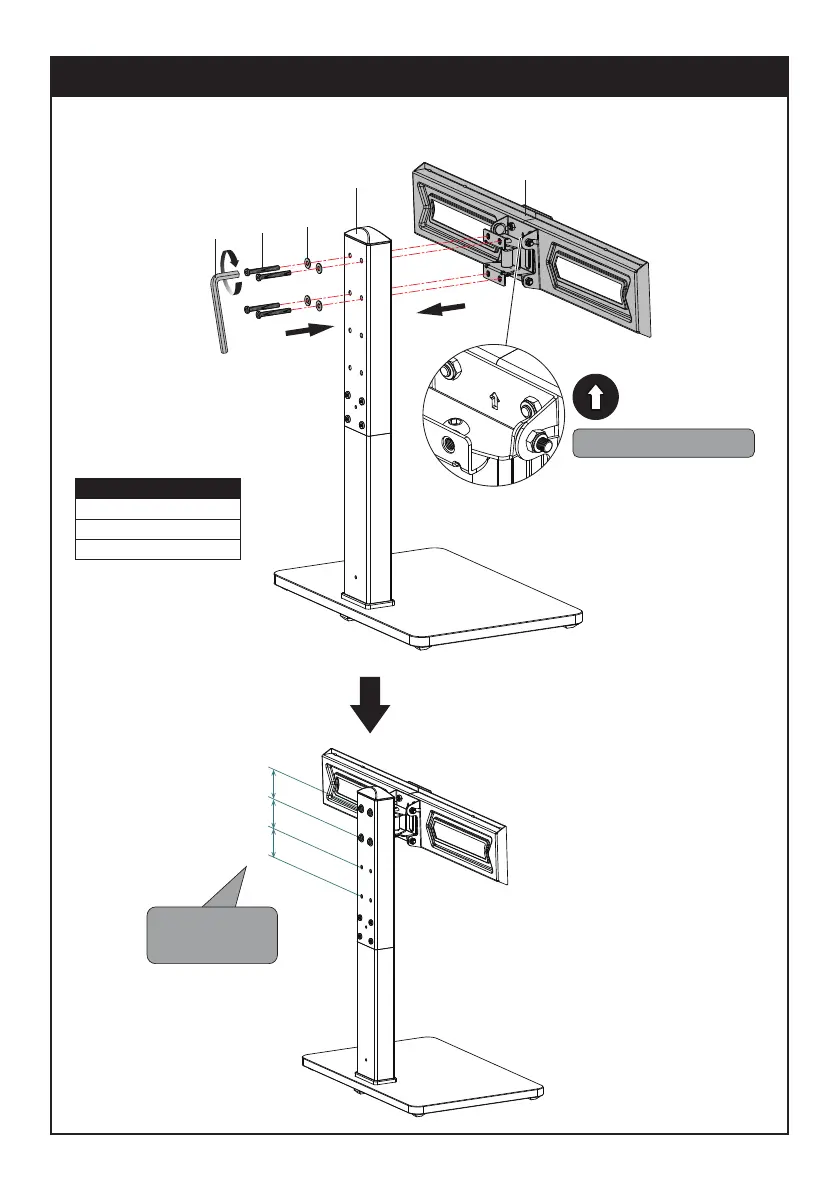

Step 3-2: Choose the appropriate position (three options) for your TV Plate, connecting TV Plate Unit to
Support Pillar( ② ) by using Bolts(D1) and Washers(D2). Use the 4mm allen key(J1) to tighten them.
55mm
55mm
55mm
②
TV Plate Unit
D1
D2
J1
Note:
Three choices for
height adjustment.
Note: Arrow must be up!
Checklist
D1 (x4) Bolt M6×50mm
D2 (x4) D6 Washer
J1 (x1) 4mm Allen Key
