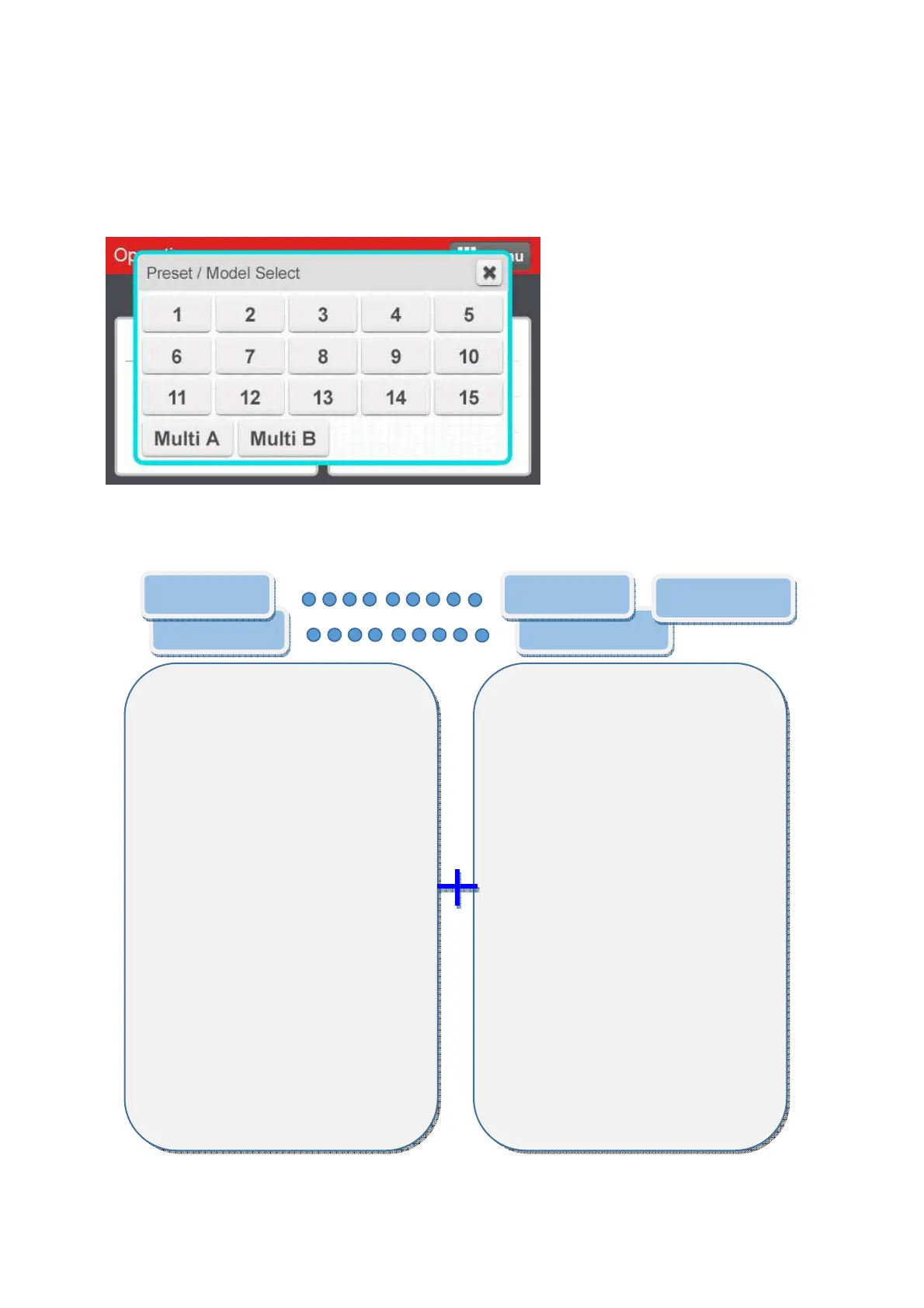

7.2 Presets or Model select
To use Model, Controller 7

M
odel select ON setting required
There are 15 presets of program.
Ea
ch preset contains the following
parameters
- Torque
- Speed
- verifying angles
- soft start duration time
- free speed tightening.
Advanced #15 Advanced #1
Fastening parameter
1. Type ( TC/AM or AC/TM)
2. Target Torque or Max torque
3. Torque limit(%) or Min torque
4. Target angle or No use
5. Min angle
6. Max angle
7. Snug torque
8. Speed
9. Angle for free speed
10. Free speed
11. Soft start
12. Seating point
13. Torque rising time
14. Ramp-up speed
15. Torque compensation
Advanced Function parameter
1. Free reverse rotation
- Speed, Angle
2. Prevailing
- Min /Max torque
- Speed, Angle
- Angle start from prevailing
3. Engaging torque detection
- Speed, Torque(%)
- Angle limit (turn)
- Time limit (sec)
- Angle start from engaging
4. Angle after torque-up
- Speed
- Angle
-
Direction
Preset #1 Preset #15
Multi A,B
