Movement C5 INDOOR CYCLE - Page 59

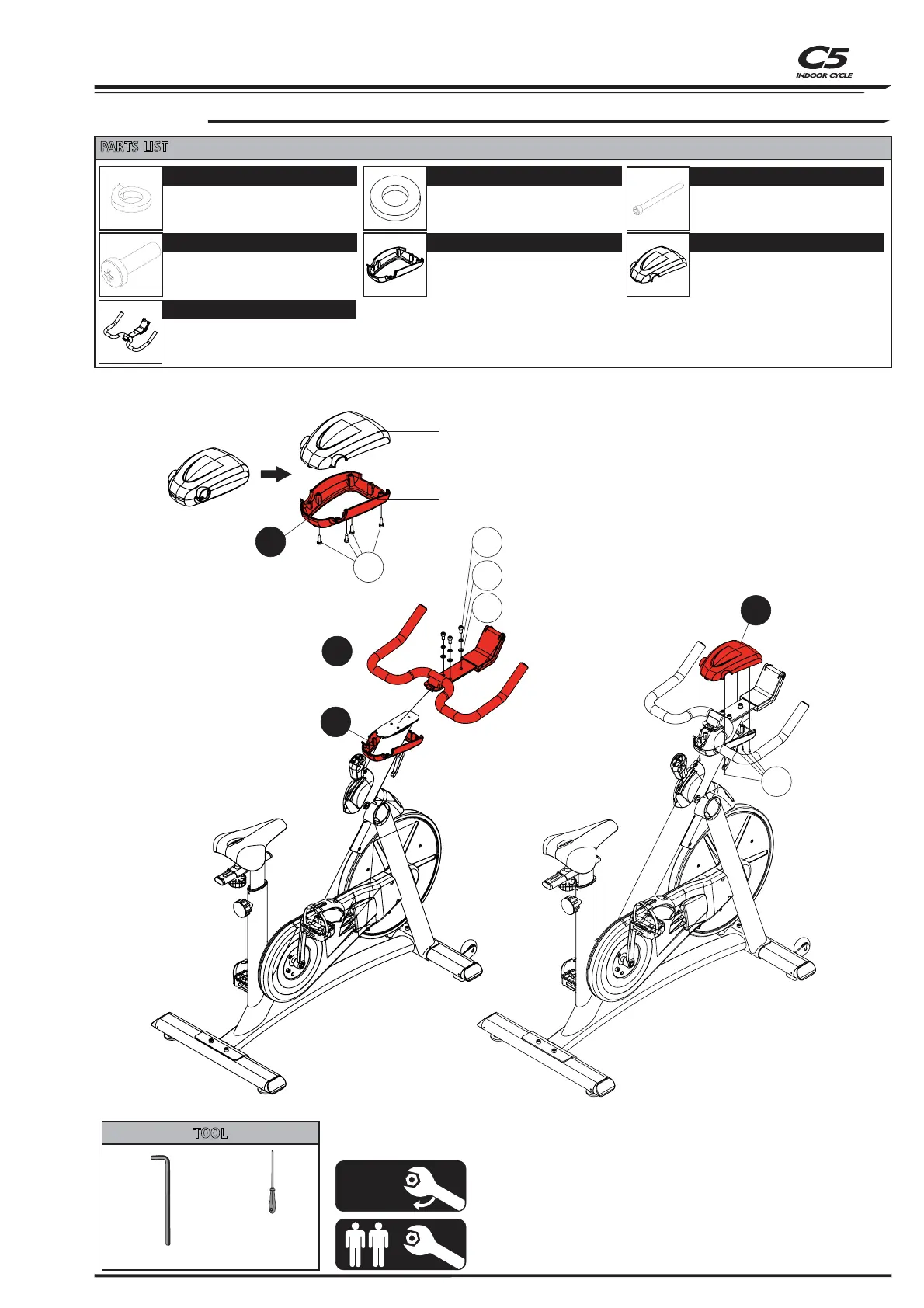

EQUIPMENT ASSEMBLY
STEP 2
19
PARTS LIST
DESCRIPTION
4 - Hex Cyl Head Screw
M8X16
3x
QTD.
DESCRIPTION
5 - Philips screw - M3X8
TOOL
Allen Wrench °6
100%
DESCRIPTION
2 - Pressure washer
3x
QTD.
DESCRIPTION
3 - Flat washer
3x
QTD.
Top cover
Bottom cover
Disassemble cover
5
DESCRIPTION
E2 - Top Cover
DESCRIPTION
E1 - Bottom cover
4
2
3
5
E1
E2
E1
Screwdriver
Philips
DESCRIPTION
G - Handlebar
G
