Movement EDGE - Assemble Protective Shroud (Careen)

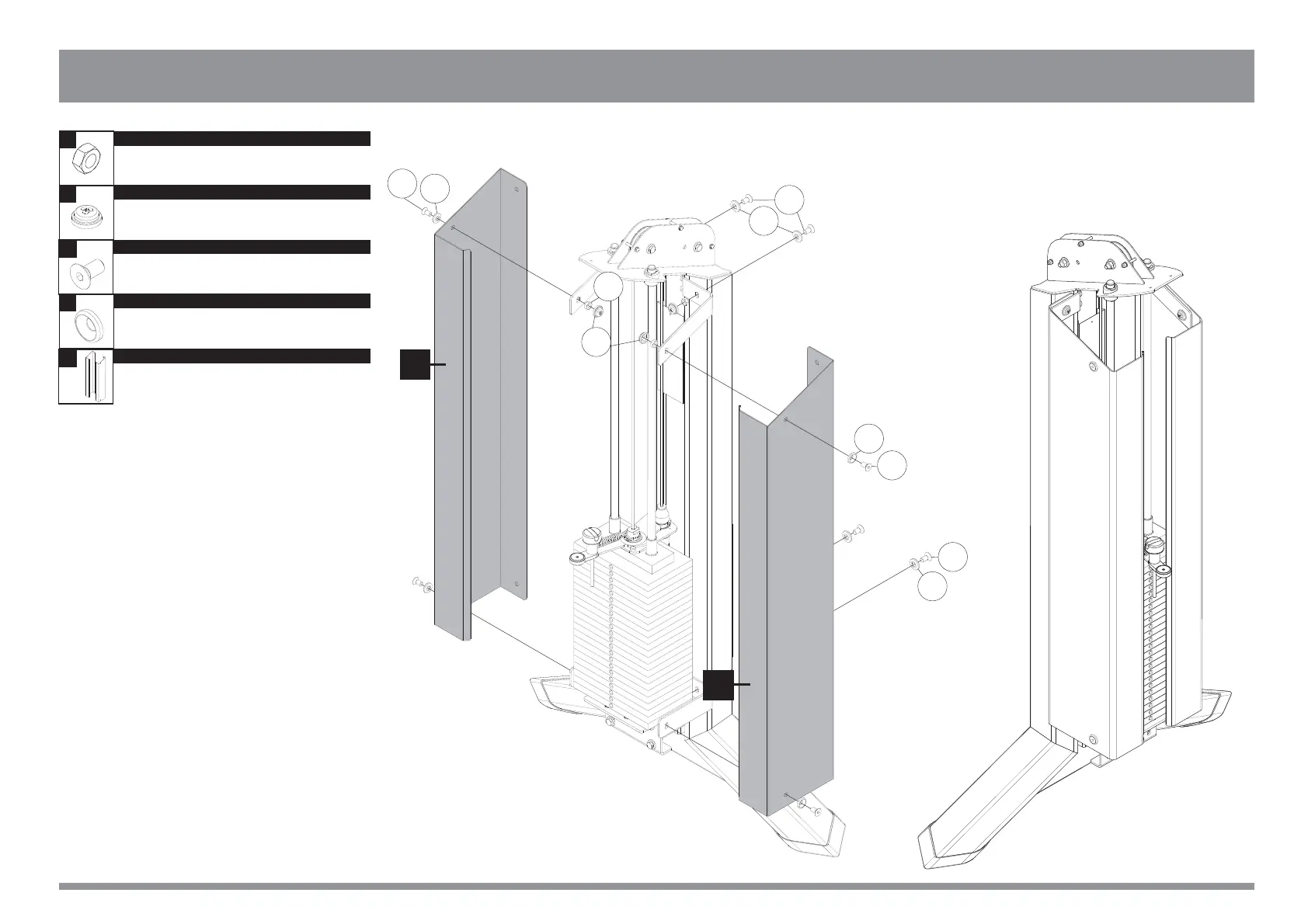

STEP 16 - ASSEMBLE THE CAREEN
31
ASSEMBLE
Internal flat head hex screw
M10X20
NAME Qty.
8x
26
Shroud
NAME
V
Hex Nut nylon
M10
NAME Qty.
8x
3
Plug
NAME Qty.
8x
27
Bush
NAME Qty.
8x
19
V
V
V
19
27
26
27
3
26
27
26
26
27
