ASSEMBLING THE EQUIPMENT
CAUTION!
Before starting to assemble your equipment, it is necessary to pay attention to the following precautions:
•Make sure that the packaging is not damaged and that the parts and components of the equipment are
not damaged.
•It is recommended that the equipment be unpacked at the place where it will be assembled.
•The assembly location must be clean.
•The floor must be flat, level, and rigid to avoid equipment instability.
•It is recommended that the equipment be assembled away from humidity and out of sunlight.

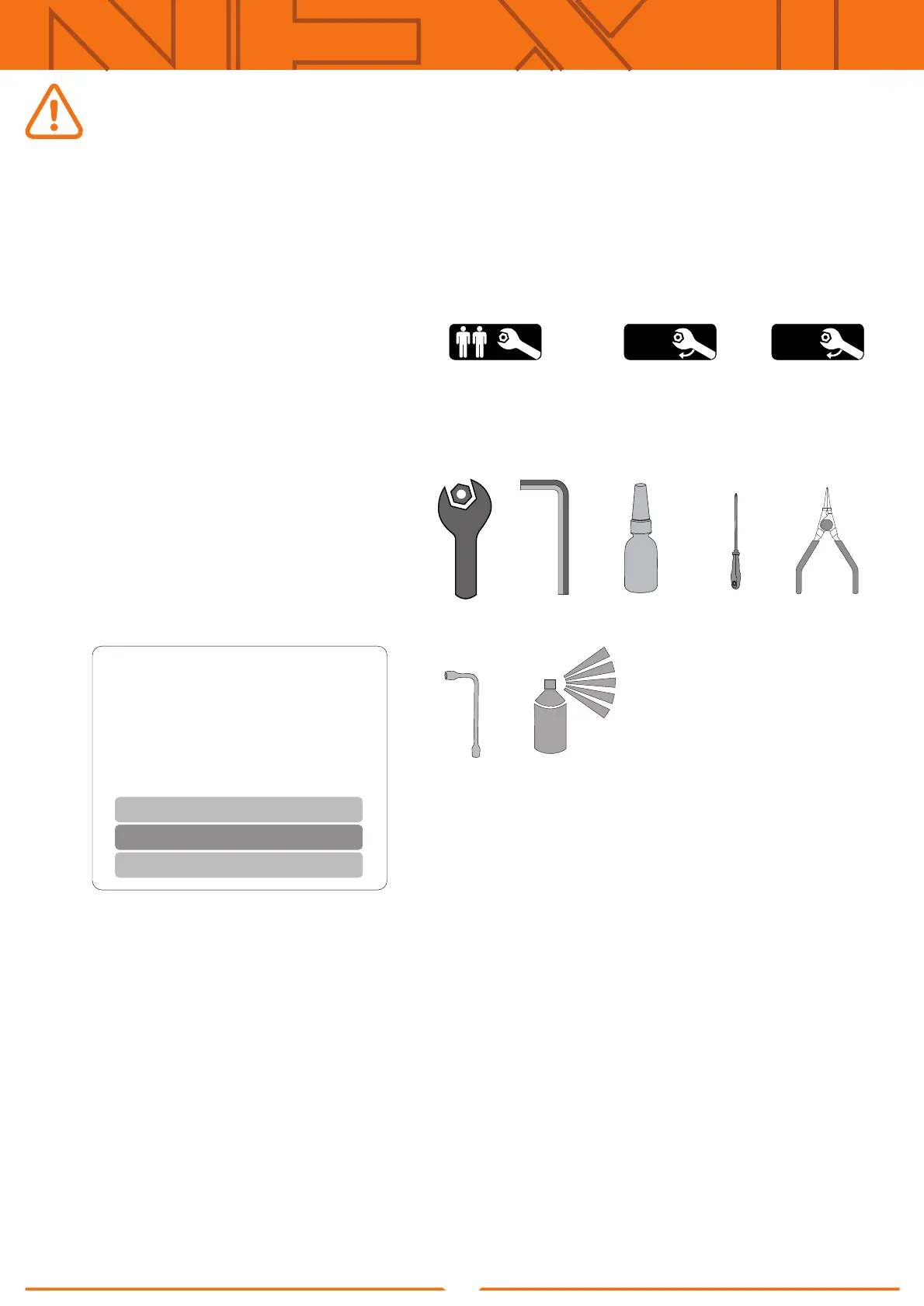

ICONS
50%
Do not tighten
the bolts
all the way
100%
Do not tighten
the bolts
all the way
For this assembly
it is recommended
that it be done
by two people
The icons are meant to instruct good
practices that should be followed
during assembly.
TABLE FOR THE SPECIFICATION OF
THE TIGHTENING TORQUE OF
BOLTS FOR ATTACHING
STEEL STRUCTURES
TOOLS
Use the following tools to assemble
the equipment. The function of the
torque table is to guide how much
tightening a particular bolt can
undergo. The table must be followed
strictly.
Diameter [mm] Torque [N.m]
M6
M8
M10
9-12
22-29
45-58
Allen
Medium Torque
Threadlocker
Philips
screwdriver
Fixed wrench
Elastic
ring pliers
Wrench
Grease
spray
12
