The provided document describes the Sentinel Alarm & Tracking system by Moving Intelligence, specifically designed for caravans. This system offers comprehensive security and tracking features, aiming to protect your investment and provide peace of mind.

Function Description

The Sentinel system is a security and tracking solution for leisure vehicles, developed by Moving Intelligence. It integrates a complete insurance-rated alarm with a Phantom Pro3 GPS tracking system. The core functionality includes:

Alarm System: Detects unauthorized access or movement and triggers an audible siren.
Tracking System (GPS): Allows remote monitoring and control of the caravan's location and status.
Remote Control: Arm and disarm the alarm, and control specific features using a fob.
Mobile App & Online Portal: Provides a user-friendly interface for managing the system, viewing vehicle information, location, battery status, and historical data.
24/7 Monitoring: The Pro3 system includes a central server that checks the device's position and battery level twice daily, recording mileage traveled. It uses a unique SIM card for communication across the UK and 28 European countries.
Movement Alerts: Notifies the user if the caravan moves when the "Shield" function is enabled.
Power Cut (Tamper Alert): Alerts in case of power disconnection.
Low Battery Alert (SMS): Notifies the user when the battery is low.

Important Technical Specifications

While specific technical specifications like battery life in mAh or exact dimensions are not provided, the document highlights several key features:

Sensors:
- Electronic Tilt Sensor: Detects tilting of the vehicle.
- Wireless Passive Infrared (PIR) Sensor: Detects movement within the caravan.
Remote Control (Fob): Comes with two four-button remotes.
Batteries:
- PIR sensor uses 2 CR2032 batteries.
- The system monitors the caravan's battery voltage (e.g., 13.0V, 12.6V shown in examples).
GPS System: Phantom Pro3 GPS system for tracking.
Connectivity: Requires internet connection for app and portal functionality. Uses a unique SIM card for communication across the UK and 28 European countries.
Alarm Duration: Siren triggers for a maximum of 30 seconds.
Alarm Memory: Stores up to 12 slots of alarm events, indicated by high-pitched 'chirps'.
Expandability: Supports pairing of new devices, including additional remotes and wireless PIR sensors (up to 12 slots for alarm memory).
Optional Extras/Upgrades: Window contacts, door contacts, additional PIR sensors.

Usage Features

The Sentinel system offers a range of user-friendly features:

System Arming:
- Press button 1 on the remote.
- Two high-pitched beeps confirm operation.
- Dome light turns ON for approx. 30 seconds.
- A 30-second delay allows exit before the alarm is fully armed.
System Disarming:
- Press button 2 on the remote.
- Three high-pitched beeps confirm disarming.
- Dome light turns ON for approx. 30 seconds.
System Arming without Internal Sensors (Pet Mode/Night Mode):
- Press button 3 on the remote.
- One high-pitched beep confirms arming with sensors excluded. This is useful for pets inside or when sleeping in the caravan.
Tilt Sensor Exclusion:
- Arm the alarm as usual (button 1).
- Wait 4 seconds after the usual two beeps, then press button 3.
- Tilt sensor exclusion is confirmed by one beep.
- Note: Sensor exclusion is bound to a single arming cycle and will automatically be re-enabled the next time the alarm is armed.
Awning Light Control:
- Arming/disarming the alarm activates the awning light for 30 seconds.
- Press button 4 on the remote to activate the light for 5 minutes before it automatically turns off.
- Note: Typically, awning light control is only possible with factory installations.
Tilt Sensor Adjustment:
- The tilt sensor sensitivity is factory set to trigger an alarm if the vehicle is tilted at an angle of approx. 1.5 degrees.
- To adjust: Simultaneously press buttons 1 and 2 on the remote. Two 'Bops' confirm entry into 'Adjustment Mode'.
- Press button 2 once to increase tilt angle to 3.5 degrees (confirmed by 1 beep).
- Press button 2 again to increase tilt angle to 7 degrees (confirmed by 1 beep).
- Press button 2 once more to increase tilt angle to 14 degrees (confirmed by 1 beep).
- To exit adjustment mode: Simultaneously press buttons 1 and 2.
Pairing New Devices:
- Press the LEARN button 5 times in a row within 5 seconds.
- Each press generates a single beep, and then two final beeps confirm the system is in pairing mode for the next 30 seconds.
- Press one of the new remote buttons or trigger the sensor to be paired. A single beep confirms the new device is added.
- To exit pairing mode, press the LEARN button once.

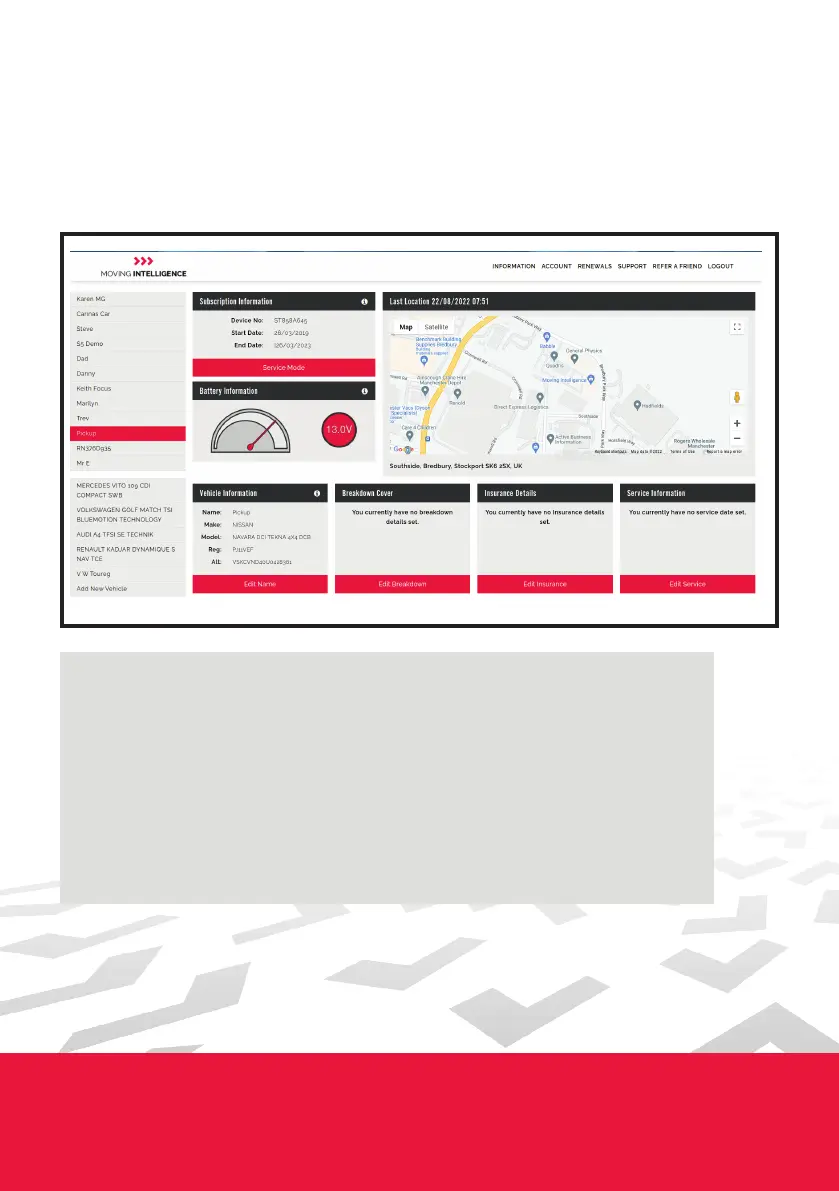

Online Portal (Your Portal):
- Login to view subscription information, last known location (map), battery information, vehicle details (name, make, model, reg, alt), breakdown cover, insurance details, and service details.
- View mileage history graphs and battery history reports.
- Submit support tickets and view past support tickets.
Mobile App (Our App):
- Available on Apple Appstore and Google Play Store.
- Provides an overview of account information, subscription dates, and vehicle info.
- Displays the vehicle's current location on a map.
- Shows battery voltage.
- View mileage history and battery history graphs.
- Shield Function: Enables movement notifications. When enabled, a notification is sent if the vehicle moves. Can be enabled/disabled from the app.
- Service Mode: Temporarily disables alarm and low power alerts. Useful for maintenance or when the caravan is being moved by others.
- Viewers: Allows granting access to others (friends/family) to monitor vehicle location and tracking device settings (Shield, Service Mode).
- Alarm Control: Arm and disarm the alarm from the app. Unlock and lock central locking (if installed).

Maintenance Features

The document outlines several maintenance-related aspects:

Battery Replacement (PIR Sensor):
- When remote batteries are weak, the blue LED will flicker/flash when arming or disarming.
- Replace CR2032 batteries. Instructions show how to detach the cover and replace the batteries.
- The PIR battery running low will trigger a secondary "bop" sound after the usual arming 2 beeps of the siren.
Battery Monitoring (Caravan Battery):
- The online portal and app display the current battery voltage of the caravan.
- Battery history reports (3, 7, or 30 days) help monitor voltage, identify power drains, assess solar panel effectiveness, and predict when recharging is needed.
System Checks: The 'Pro3' system checks into the central server twice a day, every day, reporting its position and battery level.
Remote Monitoring: Users can check the van's current battery level and a historical 30-day graph of voltage levels to ensure longer battery life.
Alerts: Text and phone calls confirm any alerts or power cuts, indicating potential issues requiring attention.
Self-Fit Option: Moving Intelligence offers a "New Portable Self Fit" device (Mi01 Sentry) for theft-reactive waterproof tracking, which provides peace of mind and extra security. This device is not connected to the battery and gives reports and triggers/notifications.

The Sentinel system is a robust solution for caravan security, combining an alarm with advanced GPS tracking and user-friendly interfaces for comprehensive management and peace of mind.
