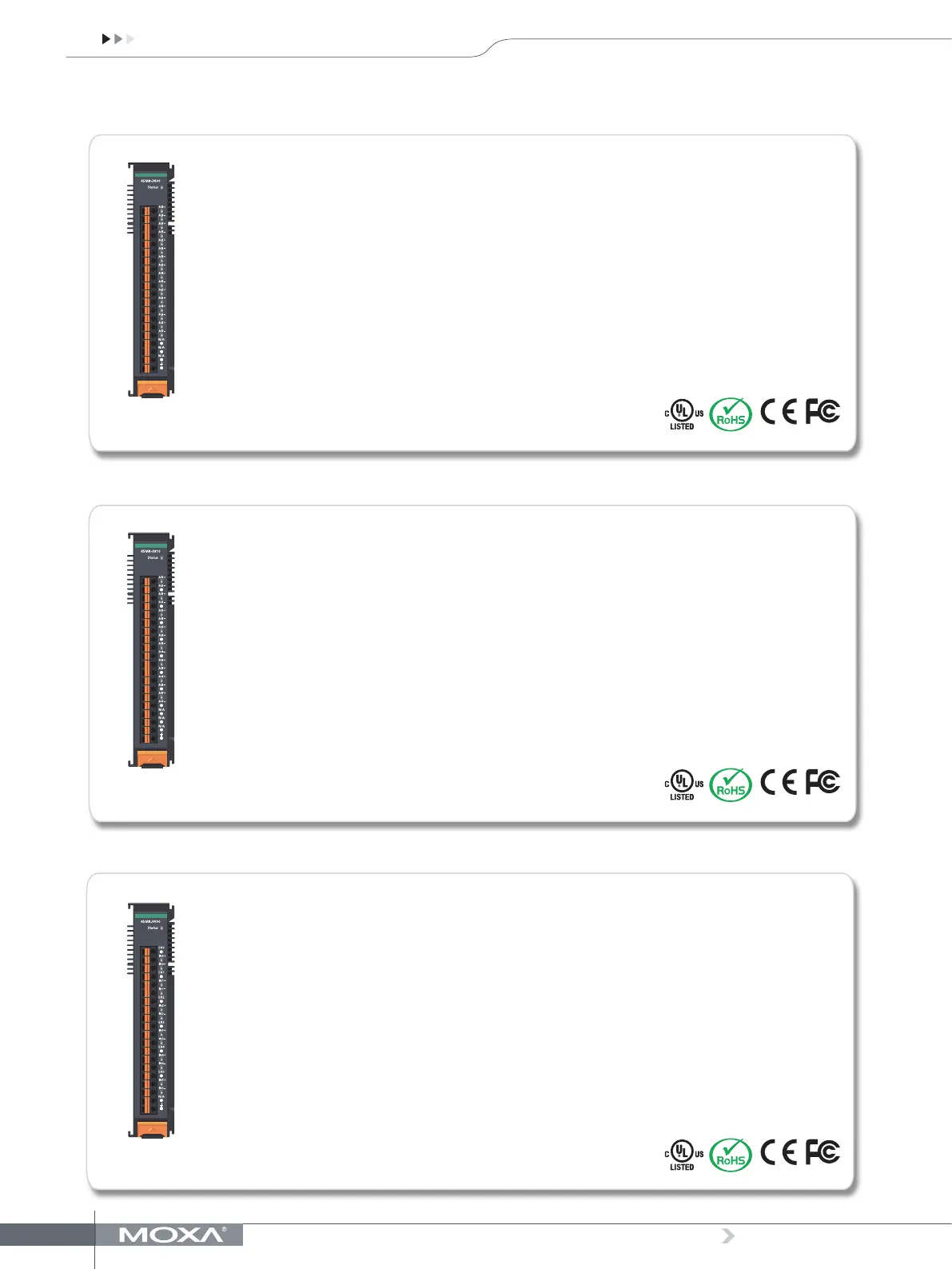

45MR-3800: Module for ioThinx 4500 Series, 8 AIs, 0 to 20 mA or 4 to 20 mA
Inputs and Outputs
Analog Inputs: 8 channels
Isolation: 3k VDC or 2k Vrms
Analog Input
Type: Differential input
Resolution: 16 bits
I/O Mode: Current
Input Range: 0 to 20 mA, 4 to 20 mA, 4 to 20 mA
(burnout detection)
Accuracy:
±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Sampling Rate:
• All channels: 100 samples/sec
• Per channel: 12.5 samples/sec
• Only one channel enabled: 100 samples/sec
Input Impedance: 120 ohms
Physical Characteristics
Weight: 79.8 g (0.176 lb)
Power Consumption (Max.)
System Power: 197.3 mA @ 3.3 VDC
MTBF (mean time between failures)
Time: 2,085,426 hrs
Standard: Telcordia SR332
45MR-3810: Module for ioThinx 4500 Series, 8 AIs, -10 to 10 V or 0 to 10 V
Inputs and Outputs
Analog Inputs: 8 channels
Isolation: 3k VDC or 2k Vrms
Analog Input
Type: Differential input
Resolution: 16 bits
I/O Mode: Voltage
Input Range: 0 to 10 VDC or -10 to 10 VDC
Over-Voltage Protection:
-35 to +35 VDC (power off)
-25 to +30 VDC (power on)
Accuracy:
±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Sampling Rate:
• All channels: 100 samples/sec
• Per channel: 12.5 samples/sec
• Only one channel enabled: 100 samples/sec
Input Impedance: 10 mega-ohms (min.)
Physical Characteristics
Weight: 79 g (0.175 lb)
Power Consumption (Max.)
System Power: 187 mA @ 3.3 VDC
MTBF (mean time between failures)
Time: 2,478,459 hrs
Standard: Telcordia SR332
45MR-6600: Module for ioThinx 4500 Series, 6 RTDs
Inputs and Outputs
RTDs: 6 channels
Isolation: 3k VDC or 2k Vrms
RTD
Sensor Type:
• PT50, PT100, PT200, PT500 (-200 to 850°C)
• PT1000 (-200 to 350°C)
• JPT100, JPT200, JPT500 (-200 to 640°C)
• JPT1000 (-200 to 350°C)
• NI100, NI200, NI500 (-60 to 250°C)
• NI1000 (-60 to 150°C)
• NI120 (-80 to 260°C)
Resistance Type: 310, 620, 1250, and 2200 Ohms
Input Connection: 2 or 3-wire
Sampling Rate:
• All channels: 12 samples/sec
• Per channel: 2 samples/sec
Resolution: 0.1°C or 0.1 ohm
Accuracy:
±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Input Impedance: 625 kilo-ohms
Physical Characteristics
Weight: 78.7 g (0.174 lb)
Power Consumption (Max.)
System Power: 131.7 mA @ 3.3 VDC
MTBF (mean time between failures)
Time: 2,291,755 hrs
Standard: Telcordia SR332
