1. Wheel
2. Chain
3. Chain Ring
4. Pedal
5. Seat Post
6. Seat
7. Fender
8. Frame
9. Steering Tube
10. “Quill” Headset Stem
11. Handlebars
12. Handgrips
13. Brake Lever
14. Fork
15. Caliper Brakes
16. Front Roller Brake
(Marc Only)
17. Rear Roller Brake
18. Kickstand
19. Chain Guard
20. Crank arm
21. Internal Hub
22. Gear Shifter
23. Sprocket
24. Dropouts

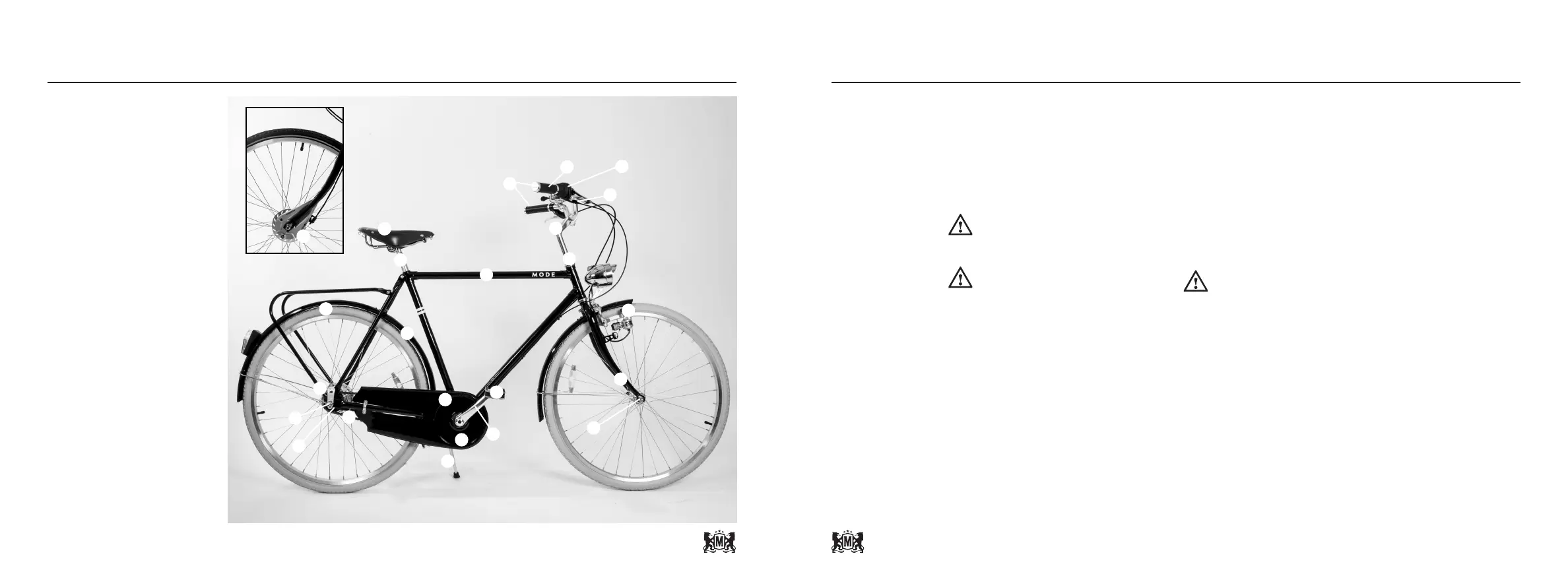

I. BICYCLE DIAGRAM
Like any sport, bicycling involves risk of injury and damage. By choosing
to ride a bicycle, you assume the responsibility for that risk, so you need
to know — and to practice — the rules of safe and responsible riding and
of proper use and maintenance. Proper use and maintenance of your
bicycle reduces risk of injury.
This Manual contains many “Warnings” and “Cautions” concerning the
consequences of failure to maintain or inspect your bicycle and of
failure to follow safe cycling practices.
• The combination of the safety alert symbol and the word
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in serious injury or death.
• The combination of the safety alert symbol and the word
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury, or is an alert against
unsafe practices.
• The word CAUTION used without the safety alert symbol indicates a
situation which, if not avoided, could result in serious damage to the
bicycle or the voiding of your warranty.
Many of the Warnings and Cautions say “you may lose control and fall”.
Because any fall can result in serious injury or even death, we do not
always repeat the warning of possible injury or death.
Because it is impossible to anticipate every situation or condition which
can occur while riding, this Manual makes no representation about the
safe use of the bicycle under all conditions. There are risks associated
with the use of any bicycle which cannot be predicted or avoided, and
which are the sole responsibility of the rider.
A. A special note for parents
As a parent or guardian, you are responsible for the activities and safety of
your minor child, and that includes making sure that the bicycle is properly
fitted to the child; that it is in good repair and safe operating condition;
that you and your child have learned and understand the safe operation of
the bicycle; and that you and your child have learned, understand and obey
not only the applicable local motor vehicle, bicycle and trac laws, but
also the common sense rules of safe and responsible bicycling. As a parent,
you should read this manual, as well as review its warnings and the bicycle’s
functions and operating procedures with your child, before letting your
child ride the bicycle.
WARNING: Make sure that your child always wears an approved
bicycle helmet when riding; but also make sure that your child understands
that a bicycle helmet is for bicycling only, and must be removed when not
riding. A helmet must not be worn while playing, in play areas, on playground
equipment, while climbing trees, or at any time while not riding a bicycle.
Failure to follow this warning could result in serious injury or death.
II. GENERAL WARNING
1
5
8
9
10
11
12
22
13
14
24
23
18
19
21
15
6
7
4
2
3
20
17
16
