MP 401 User Manual

MP Gas Controls S.p.A.
Instructions for installation, use and maintenance
Art. 401
Compile: R.A.
Rev.0 del 01/21
English
Pag. 8 of 11
Art. 401
2.3 – Thermocouple fixing

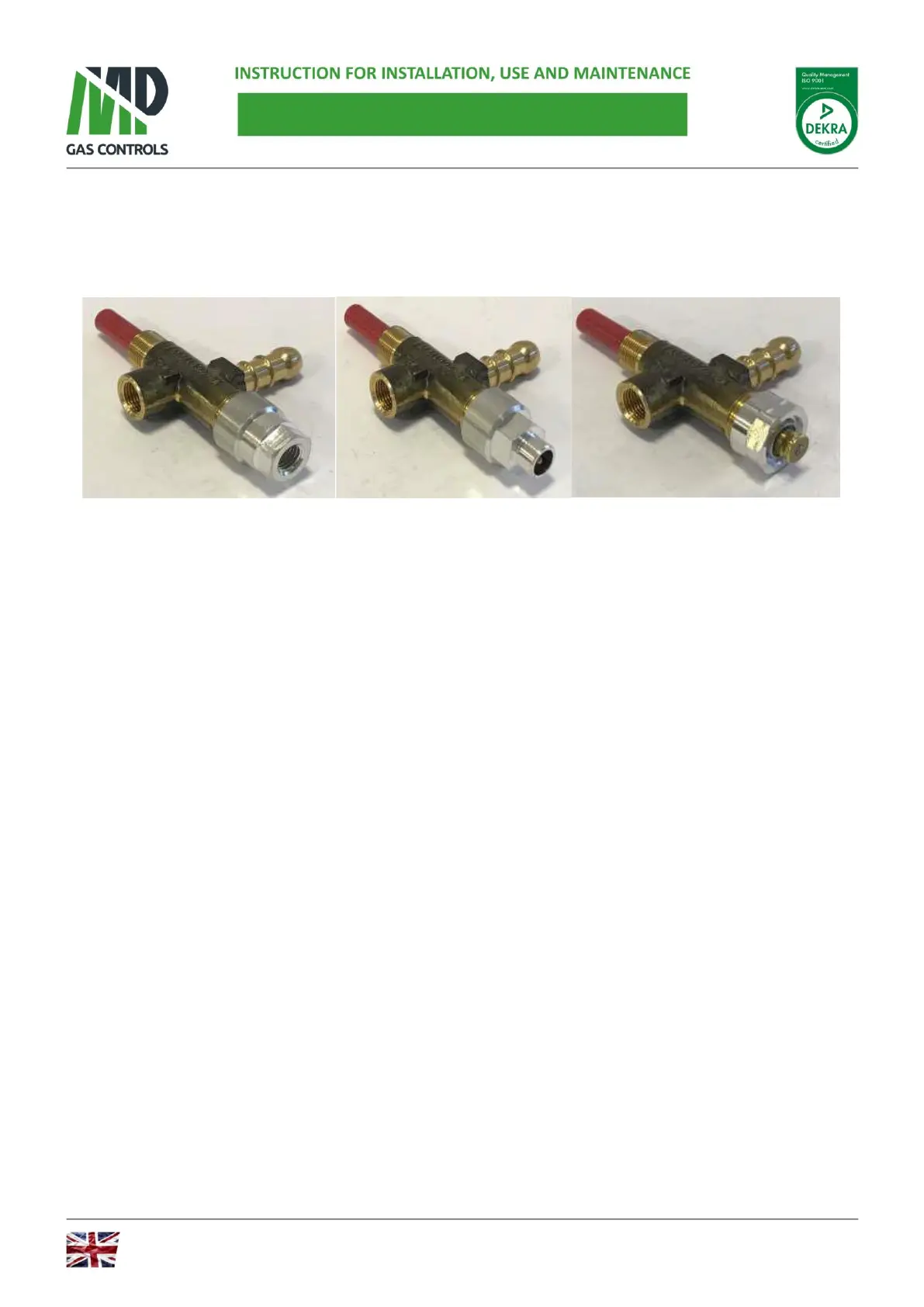

Fix the thermocouple to the gas valve according to the kind of connection provided, as shown on fig. 2.
fig. 2
1. Threaded connection: screw-in the nut of thermocouple with a torque of 4 Nm max.
2. Quick connection: insert the thermocouple connection till the end.
3. Fast-on connection: connect the thermocouple terminal to the fast-on.
Available magnet-on and magnet-off currents:
• 200 / 80 mA
• 290 / 110 mA
• 200 / 40 mA
• 180 / 40 mA
