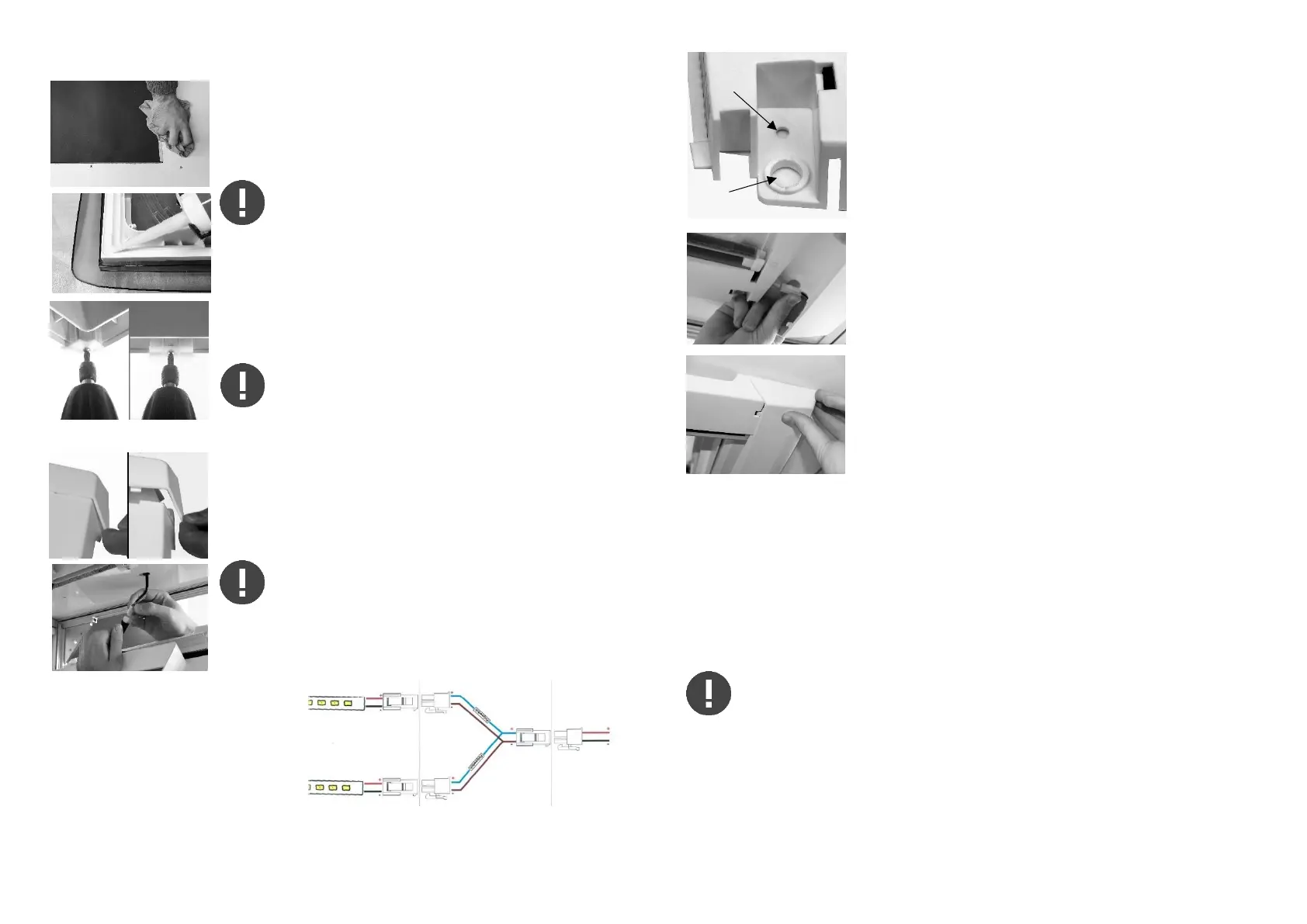

Installation
Please clean the frames carefully before mounting the
sealant.
Follow the instructions of the sealant manufacturer.
Separate the inner and outer frames and fit the outer frame
to the outside of the roof aperture onto a bed of sealant.
The operating handles facing the front and rear of the
vehicle!
Place over the screw holes on the inside of the frame, the 8
fixing brackets; four in each corner, four in the centre of each
side. Secure with screws, stop as soon as the brackets start to
distort.
Max. Torque 0.5 Nm.
Remove the small tabs on the corner bracket before installing
the inner frame.
To fit the inner frame, gently pull out the pointed ends of the
cover profiles to release them and reveal the fixing points.
Turn off the power supply in the vehicle before
proceeding with the connection of the LED lighting.
Connect the supplied connection cable to the power supply
installed in the vehicle.
Connect the Polyswitch cable of the inner frame to the power
supply of the vehicle. Then place the inner frame in the centre
of the cutout.
Version 1: Timber support under the roof lining
Offer up the inner frame into the outer frame. Use the four small
holes to fix the inner frame with standard screws into the timber
support.
Version 2: Inner lining made of plywood / polyester layer
Offer up the inner frame into the outer frame and mark drill
holes (large screw hole).
Pre-drill the screw holes and screw the inner frame tight with
the supplied plastic screws.
Fix the connector from the inner frame with the connector from
the side panel before inserting the side cover.
Refit the inner frame covers by locating the securing lugs
and keeping the covers parallel against the roof whilst sliding
them carefully onto the frame, ‘clicking’ back into position,
without distorting.
Operation
To open the rooflight, press both locking buttons and push the handles upwards.
The rooflight can be opened fully by the handles or in four different directions, so that the
dome can be angled against driving weather conditions.
To close the rooflight, press the locking buttons again and pull the handles down. The roof
hood is locked.
Keep the pleated blinds open while driving to avoid driving noise and damage
from the airstream.
To avoid heat accumulation do not close blind completely during the day. Open
both pleats when not using the vehicle.
