RIBBON CABLE DESCRIPTION
EVKT-USBI2C-02 supports two kinds of ribbon
cable connections between the communication
interface device and the evaluation board, 3-Pin
ribbon cable and 10-Pin ribbon cable. Figure 1
shows the bottom view of the 10-Pin ribbon
cable and Table 1 shows the pin descriptions.

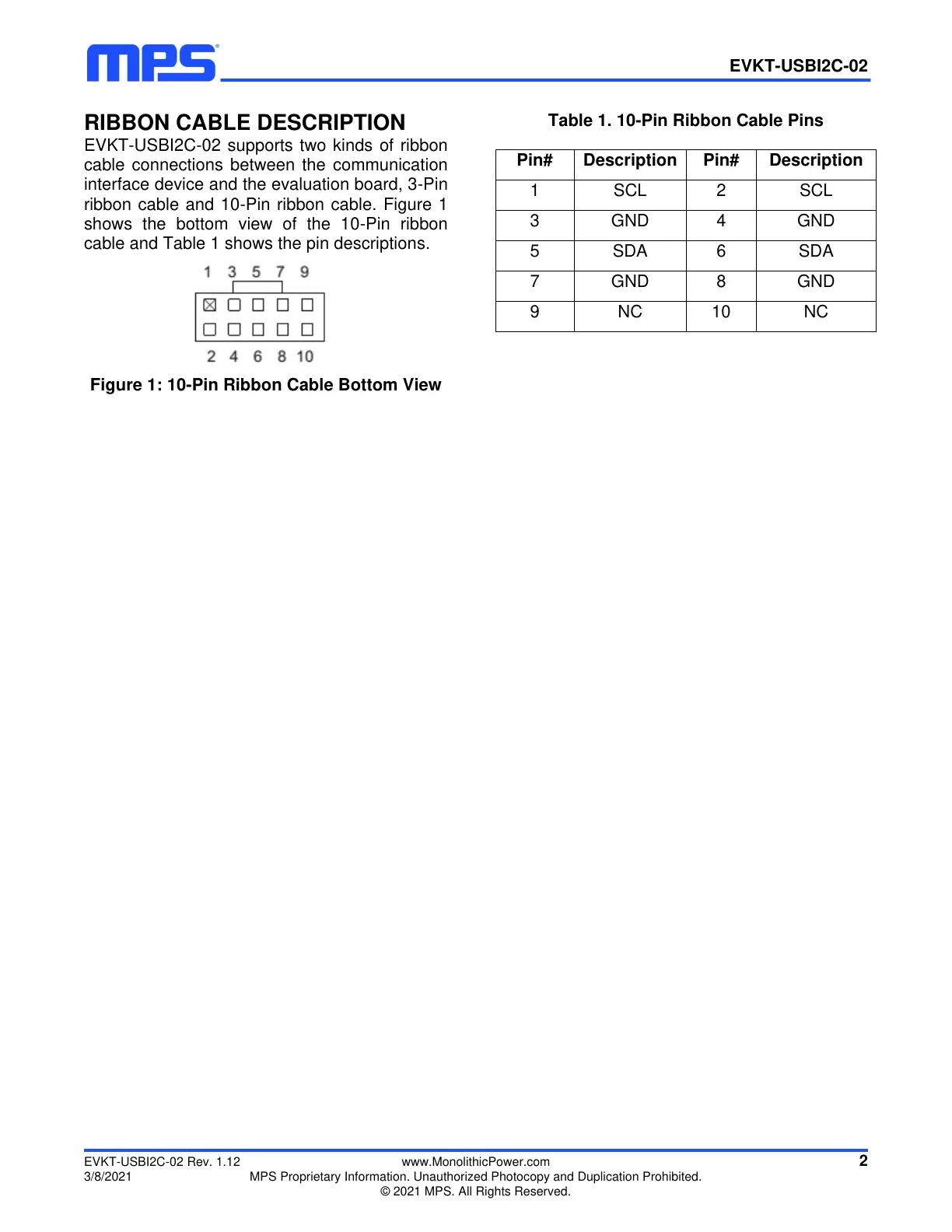

Figure 1: 10-Pin Ribbon Cable Bottom View
Table 1. 10-Pin Ribbon Cable Pins
Pin#
Description
Pin#
Description
1
SCL
2
SCL
3
GND
4
GND
5
SDA
6
SDA
7
GND
8
GND
9
NC
10
NC
