MR. Steak MS-3B-PG - REGULATOR AND LP CYLINDER CONNECTIONS

C
L
O
S
E
O
P
E
N
Collar
6
CAUTION
The gas pressure regulator provided with this grill appliance
must be used.

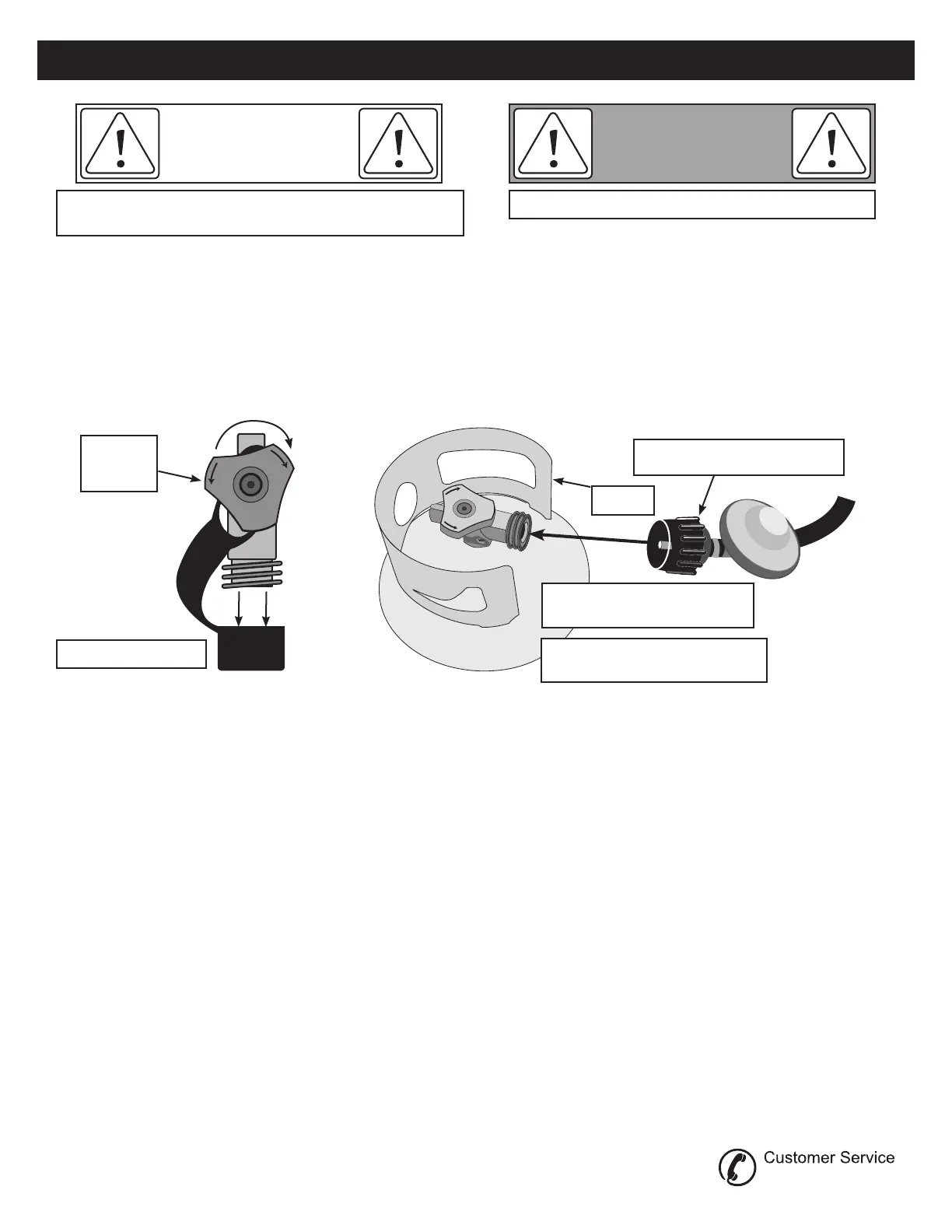

REGULATOR AND LP CYLINDER CONNECTIONS
WARNING
Keep the LP cylinder in the upright position at all times.
GCC 1 Type Connector
Hand
Wheel
This regulator must enter the
cylinder valve in a straight line.
Center the regulator nipple
in the cylinder valve outlet.
1-800-227-7776
• Your regulator is equipped with a GCC Type 1 quick connect system. It will not allow gas to ow until a positive seal
has been made. It has a thermal element that will shut off the ow of gas if the temperature reaches 115ºC (240ºF). It
also has a ow-limiting device that will restrict the ow of gas to 0.28 cubic meters per hour (10 cubic feet per hour).
• This regulator is set for an outlet pressure of 11 inch water column.
• Before each use, check the supply hose for excessive abrasion, wear, cuts, or leaks.
• If any damage is found, call Customer Service to obtain a replacement supply hose.
C
L
O
S
E
O
P
E
N
Remove Dust Cap
TO CONNECT THE REGULATOR AND HOSE TO THE CYLINDER
1. Be sure the propane cylinder is OFF by turning the hand wheel clockwise until it stops.
2. Place the tank under the grill body with the valve facing outward. (See Assembly Instructions
on p. 47 to see how to secure the cylinder to the grill body.)
3. Remove the dust cap from the cylinder valve.
4. Center the nipple of the regulator into the cylinder valve outlet.
5. Turn the black nut clockwise until it stops. Hand tighten ONLY. DO NOT use a wrench.
