5 Mounting
Maschinenfabrik Reinhausen GmbH 201830 1800059/09 ENRS
9. Install the protective relay horizontally in the pipe between on-load tap-
changer head and oil conservator as near as possible to the on-load tap-
changer head.

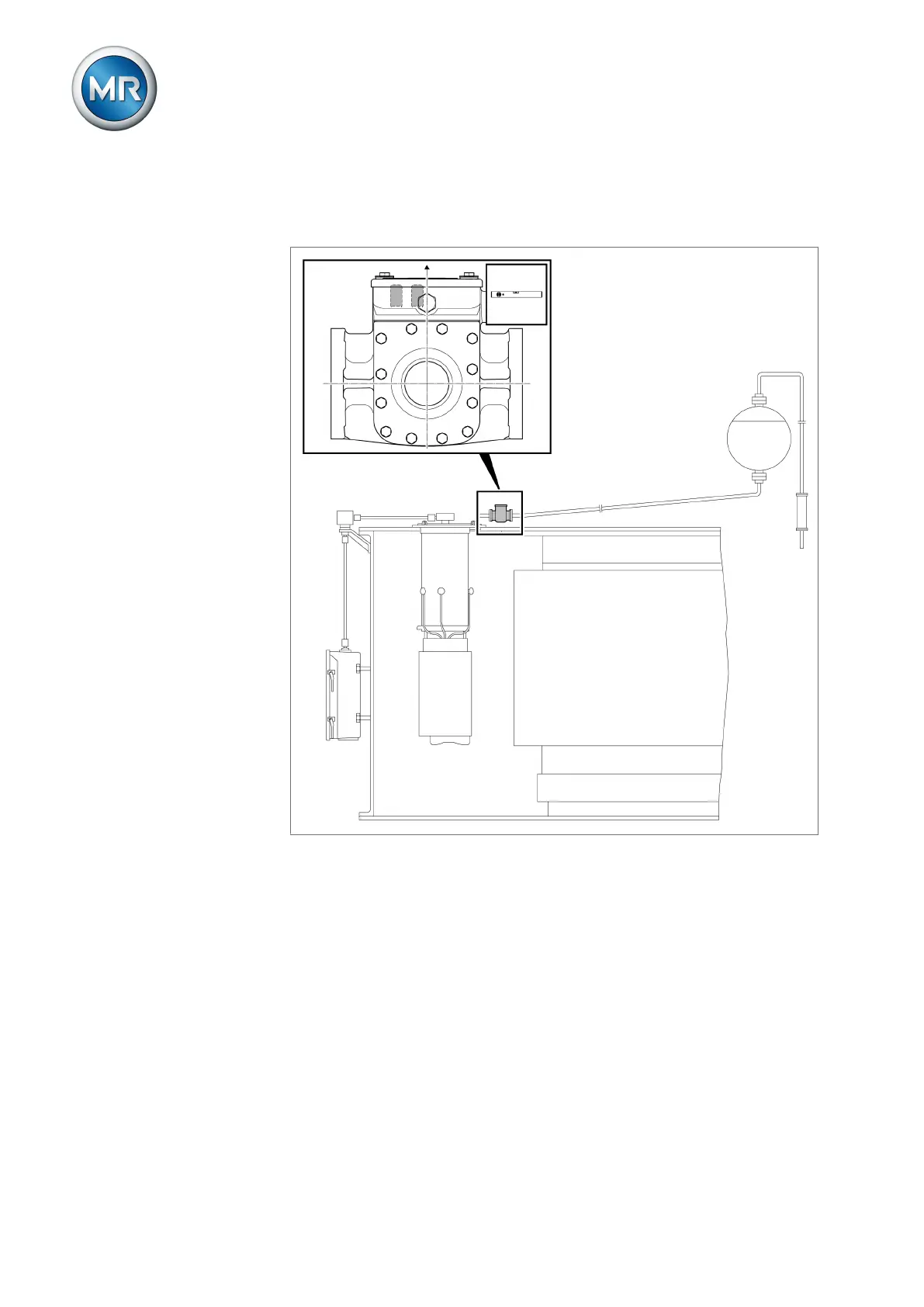

Figure14: Protective relay horizontal and with test button at the top
