Step 1: Switch off power by using the circuit breaker. This is very
important for your safety.
Step 2: Find a point where 24V or 12V is available (In case of
non-availability of 24V/12V point, you can either DIY or
consult a professional installer). Ensure that chosen point
is also in the line of sight of your MRCOOL Ductless
Mini-Split.
Please DO NOT use any other voltage level to power up
the Smart Wi-Fi Mini-Stat.

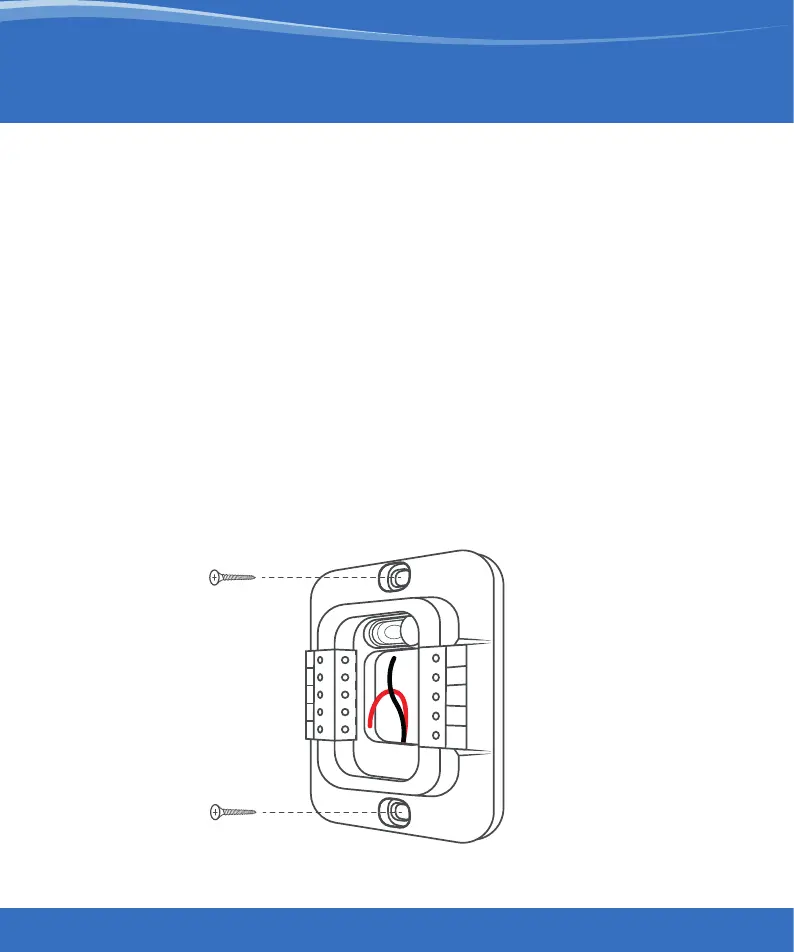

Step 3: Take out the wires through the hole in the middle of the
backplate. Screw in the backplate using the provided pair
of drywall anchors and screws.
C
R
C
3
mrcool.com
Instructions for Wired Connection
