MrCool Signature Series Manual

16 SEER SPLIT SYSTEM AIR CONDITIONER MAC16*A
Page 2

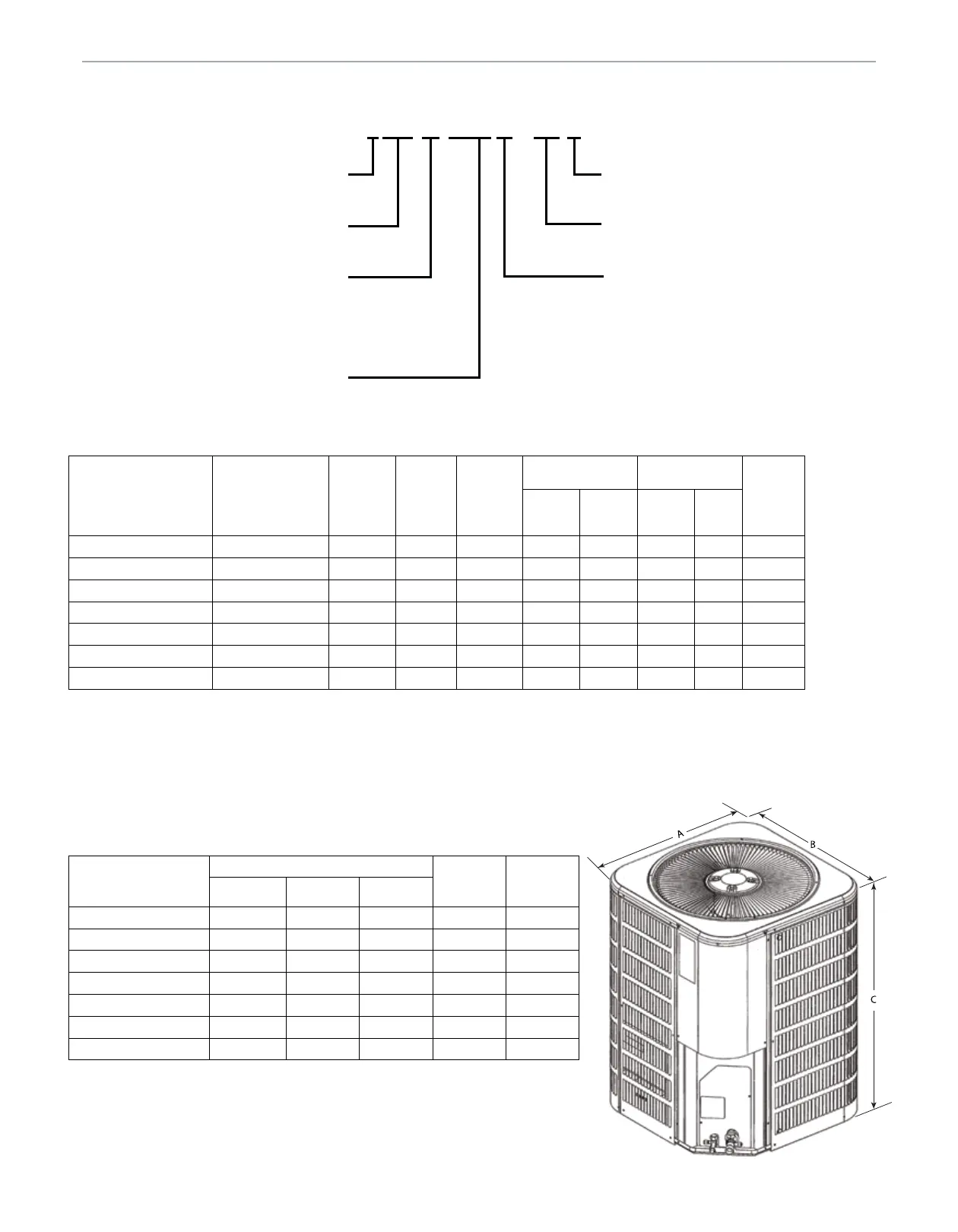

MODEL NUMBER GUIDE
PHYSICAL AND ELECTRICAL DATA
UNIT DIMENSIONS & SOUND RATINGS
Weights listed are unit weights with packaging
+ Factory charged for 15 feet of line set. Adjust per installation instructions.
MINOR REVISION CODE
MAJOR REVISION
50 = COOLGUARD®
ELECTRICAL
P = 208-230V/60HZ/1PHASE
REFRIGERANT
M = R410A
AC
SPLIT AIR CONDITIONER
NOMINAL SEER
16
TONNAGE
18, 24, 30, 36, 42, 48, 60
A 50P 24016 ACM
Model Voltage/Hz/Phase
Voltage
Range
Min.
Circuit
Amp.
Max.
Over
Current
Device
(amps)
Compressor
Outdoor Fan
Motor
Shipping
Weight
(lbs.)
Rated
Load
(amps)
Locked
Rotor
(amps)
Rated
Load
(amps)
Rated
HP
MAC16018P-50A
208-230/60/1 197-253 11.9 20 9 48 0.7 1/10
134
MAC16024P-50A
208-230/60/1 197-253 14.6 25 10.9 59 1 1/6
152
MAC16030P-50A
208-230/60/1 197-253 17 25 12.8 68 1 1/6
169
MAC16036P-50A
208-230/60/1 197-253 18 30 13.6 79 1 1/6
181
MAC16042P-50A
208-230/60/1 197-253 23.4 40 17.9 112 1 1/6
211
MAC16048P-50A
208-230/60/1 197-253 24.2 40 18 117 1.7 1/4
218
MAC16060P-50A
208-230/60/1 197-253 29.6 50 22.2 128 1.8 1/3
226
Model
Dimensions (inch) Shipping
Weight
(Lbs.)
Sound
Rating
(dBA)
A - Width B - Depth C - Height
MAC16018P-50A 24.25 24.25 29 155 73
MAC16024P-50A 28.25 28.25 37 171 76
MAC16030P-50A 28.25 28.25 37 187 76
MAC16036P-50A 28.25 28.25 37 205 76
MAC16042P-50A 28.25 28.25 37 234 76
MAC16048P-50A 28.25 28.25 37 255 78
MAC16060P-50A 32.25 32.25 43 284 80
Note:
Dimensions listed are unit sizes w/o packaging
