Unit Installation
For best performance of the outdoor unit, make sure its installation space conforms to the following
installation dimensions...

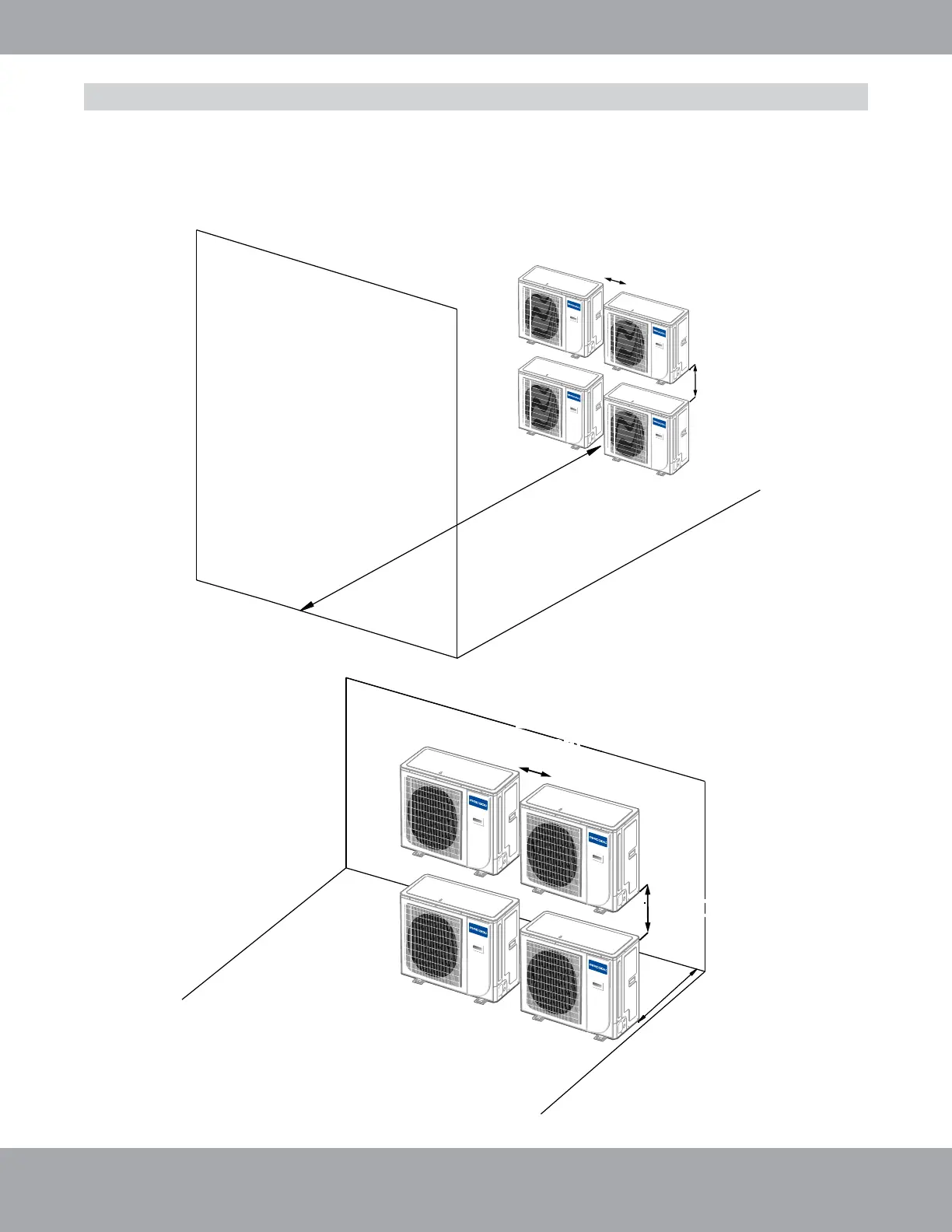

For installation of multiple condensers on a vertical face refer to fig 2.4 below:
≥ 7.874”
2000mm
WALL
≥ 15.75”
400mm
≥ 15.75”
400mm
≥ 15.75”
400mm
≥ 19.69”
500mm
≥ 19.69”
500mm
≥ 19.69”
500mm
≥ 11.81”
300mm
Fig. 2.4
Installation Location
