Unit Installation
If the outdoor unit is located on a level lower
than the indoor unit, arrange the condensate drain
according Fig. 2.21.
1. Drain hose should be placed on the ground
and its end should not be immersed into water.
2. The entire lineset, including drain pipe should
be wound with insulating tape. Wind the insulating
tape from bottom to top.
3. The entire lineset, including drain pipe should
be supported and fixed onto the wall with saddles.
If the outdoor unit is located on a level higher
than the indoor unit, arrange the condensate drain
according Fig. 2.22.
1. Drain hose should be placed on the ground
utilizing a trap
2. The entire lineset, including drain pipe should
be wound with insulating tape to avoid water
returning to the interior. Wind the insulating tape
from bottom to top.
3. The entire lineset, including drain pipe should
be supported and fixed onto the wall with saddles.

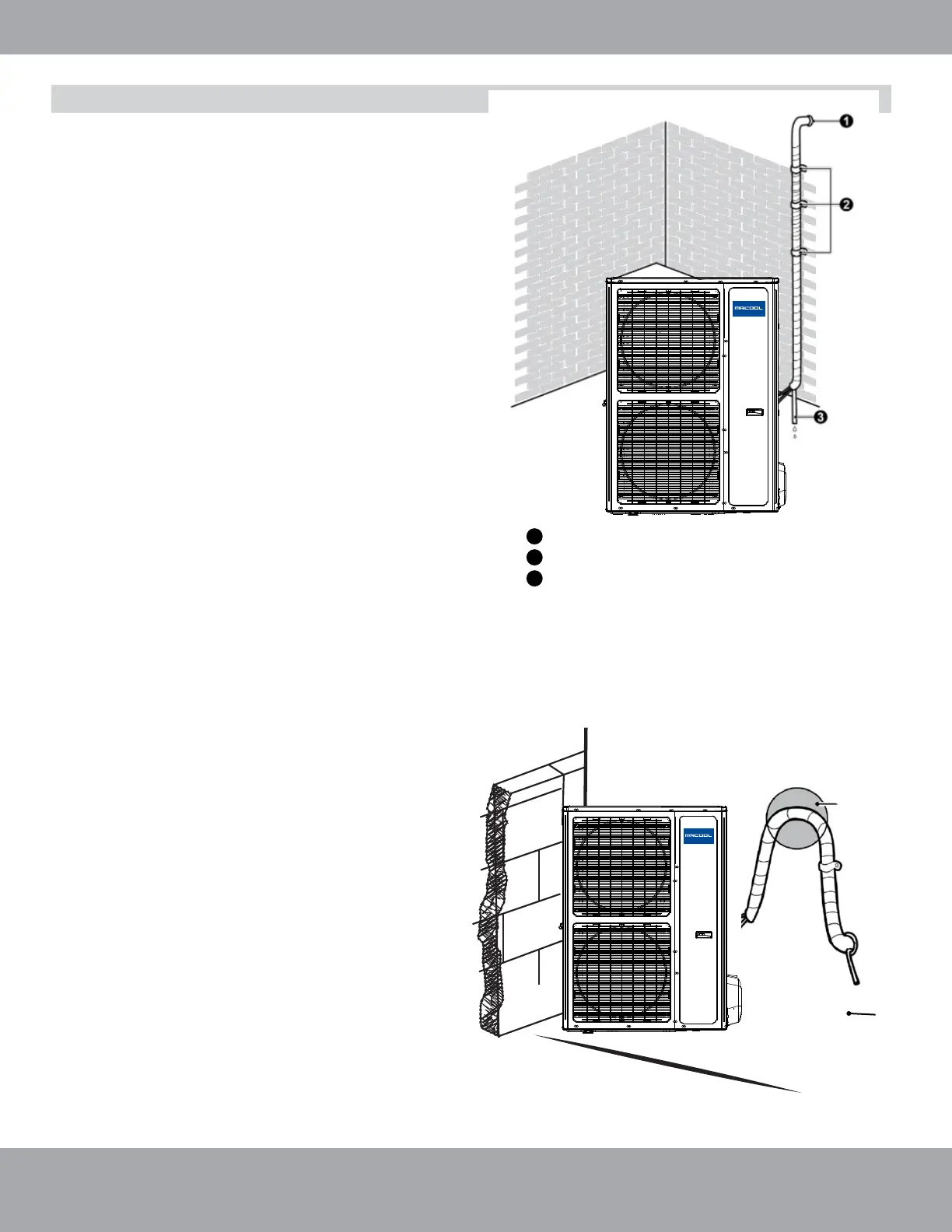

Installation of Drain Pipe
Fig. 2.21
Fig. 2.22
®
®
1
2
3
Sealed
Saddle
Drain Pipe
Non-return
Bend
Trap
