Page 28mrcool.com
Unit Installation
Electrical Connection

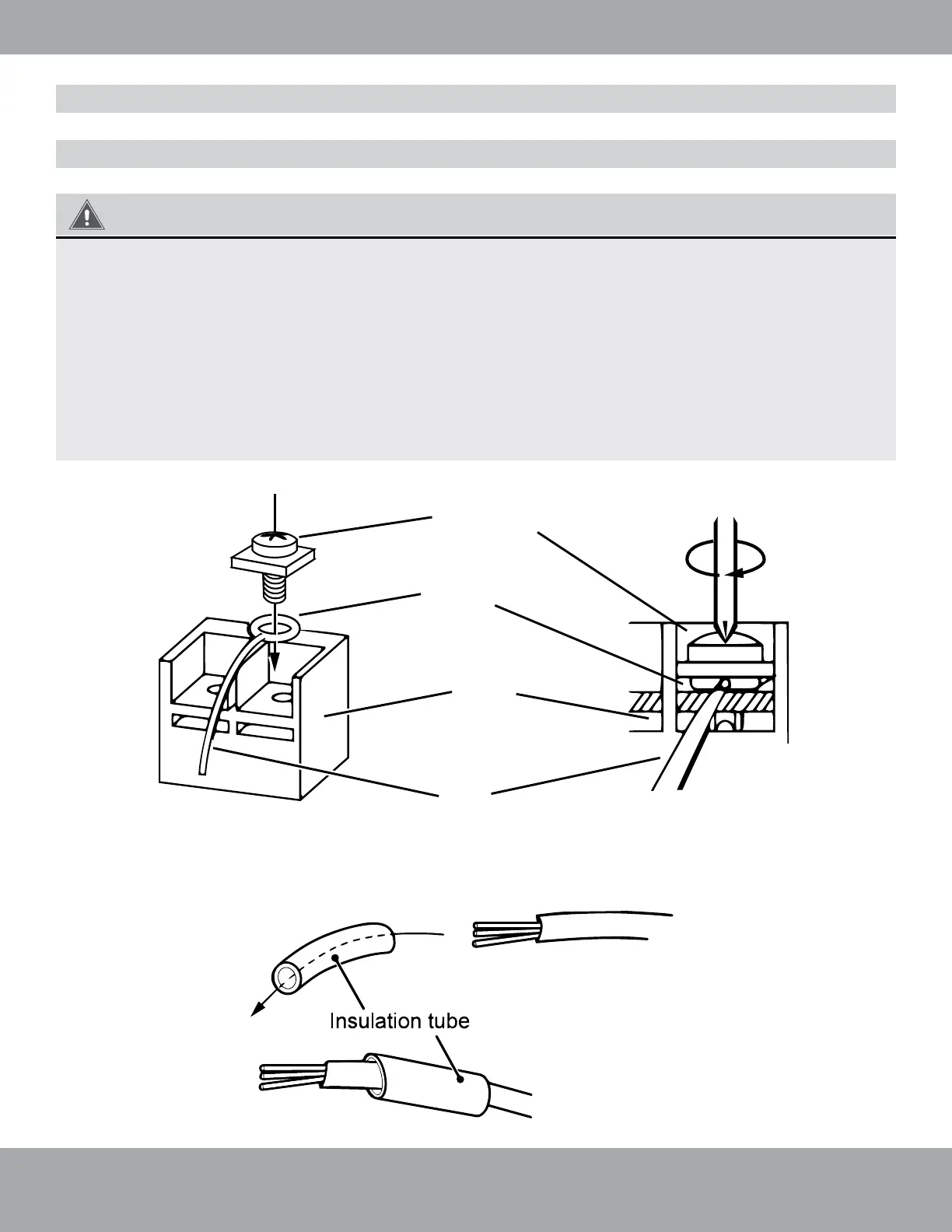

Connecting the Power Cord & Thermostat Wires
Screw with
Special Fastener
Round
Terminal
Wire
Terminal
Board
For all terminal wiring (Refer to Fig. 2.28):
Lead the thermostat wires and power cord through the insulation tube (as shown in Fig. 2.28).
Fig. 2.28
Fig. 2.27
WARNING
1. Before work begins, please check to ensure the unit is powered OFF.
2. Improper wire connection may cause electrical components to burn.
3. Connect the wires firmly to the wiring box. Incomplete installation may create a fire hazard.
5. Ground wire must be connected.
To Next Page
