Faucet Installation
E
C
A

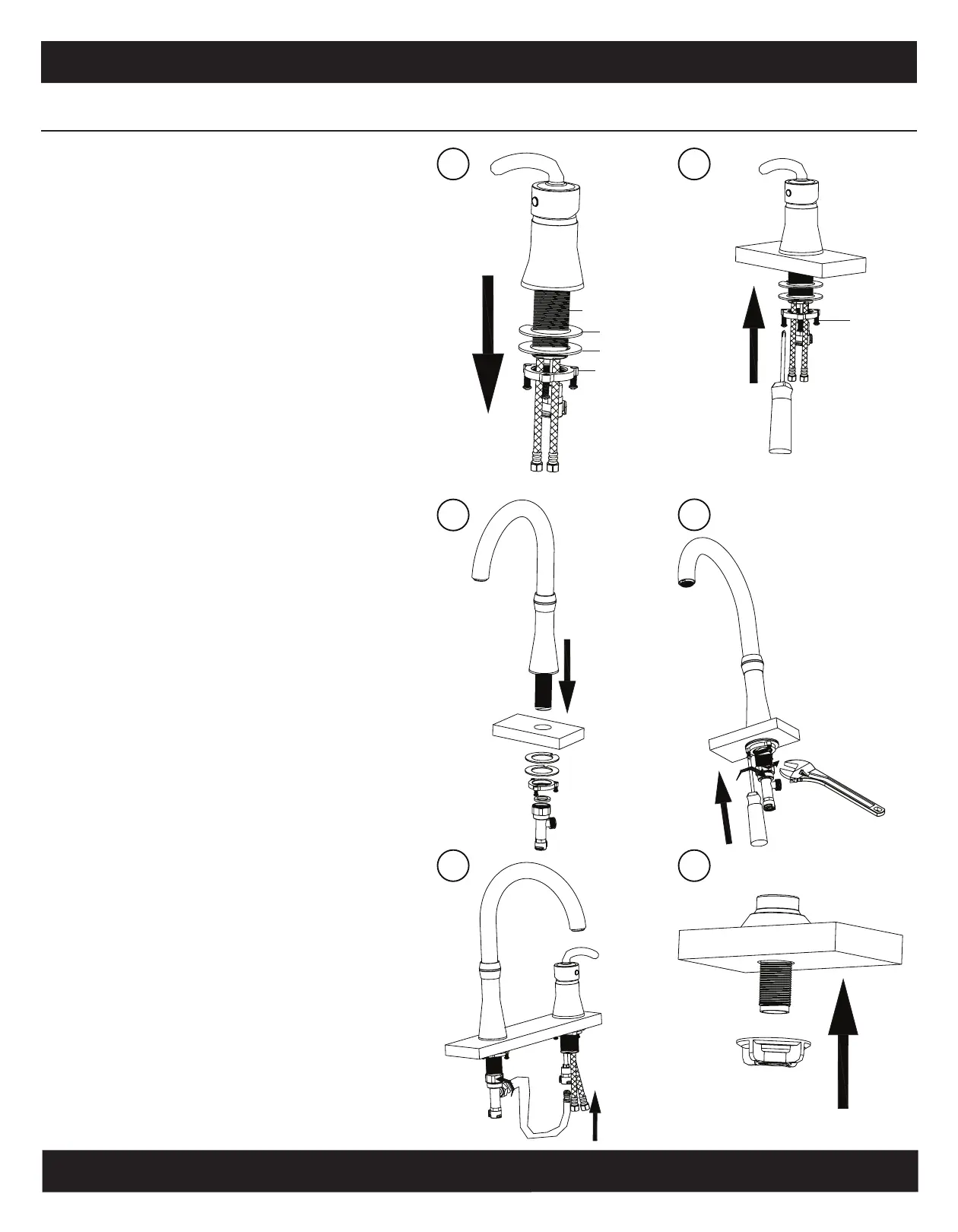

A. Turn o the water supply. Remove the
mounting hardware from the remote
valve shank.
B. From the underside of the sink or
mounting surface, attach the gasket and
washer, followed by the lock nut, onto the
shank.
Tighten mounting screws until secure.
D
B
shank
washer
mounting
screws
lock nut
F
C. Insert the shank of the faucet into the hole
of the sink deck.
From the underside of the sink or
mounting surface, attach the gasket and
washer, followed by the lock nut, onto the
shank.
D. Using a phillips screw driver tighten the
mounting screws untill secure. Attach
the water supply tting at the base of the
fauct shank using an adjustable wrench to
tighten.
E. Connect the supply line from the remote
valve quick connect to the valve body at
the faucet base.
F. Insert the side spray shank into the hole of
the sink deck. Attach lock nut from below
and hand tighten.
gasket
To Next Page
