3
Installation Guide

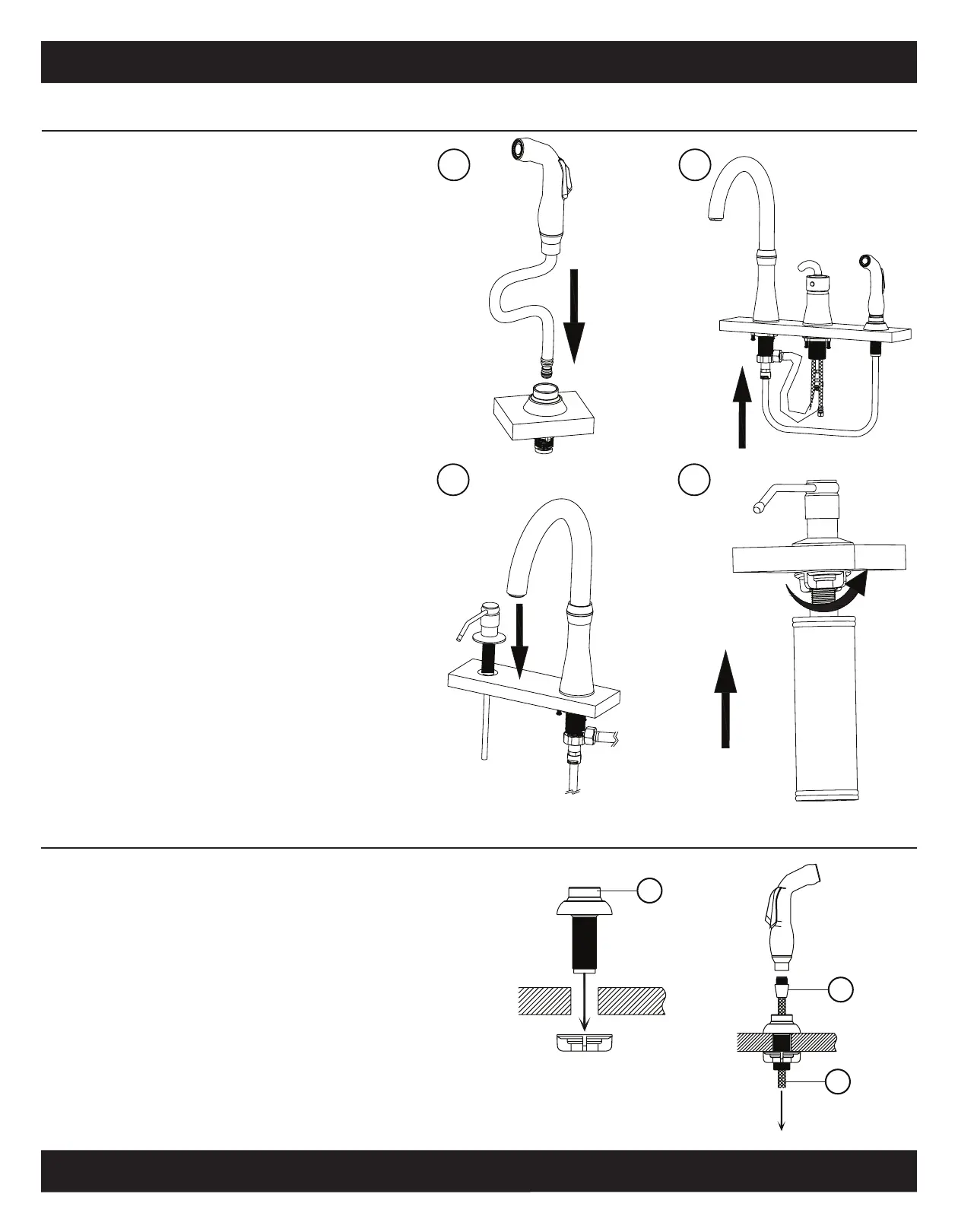

Faucet Installation Continued
A. Insert spray hose assembly (1) to far right hole on the sink,
hand tighten with lock nut from underneath.
B. Insert spray hose (2) down hose assembly.
C. Connect male end (3) with spray and hand tighten.
1
3
2
Side Spray Installation
G
G. Insert the side spray hose into the sink
hole. From under the sink, securely hand
tighten the lock nut.
H. Attach side spray hose to the quick
connect tting at faucet base.
H
I
I. Remove all mounting hardware from soap
dispenser. Position the soap dispenser in
desired mounting hole.
J. From underneath the sink thread the nut
onto the shank. Tighten the nut until the
soap dispenser is rmly held in place.
Fill the dispenser bottle with soap, insert
the pump assembly onto the shank.
J
To Next Page
