MSA F2 X-TREM - Replacing Spare Parts; Chin Strap; Ratchet Headband; Suspension

Replacing Spare Parts
F2 X-TREM
6
GB

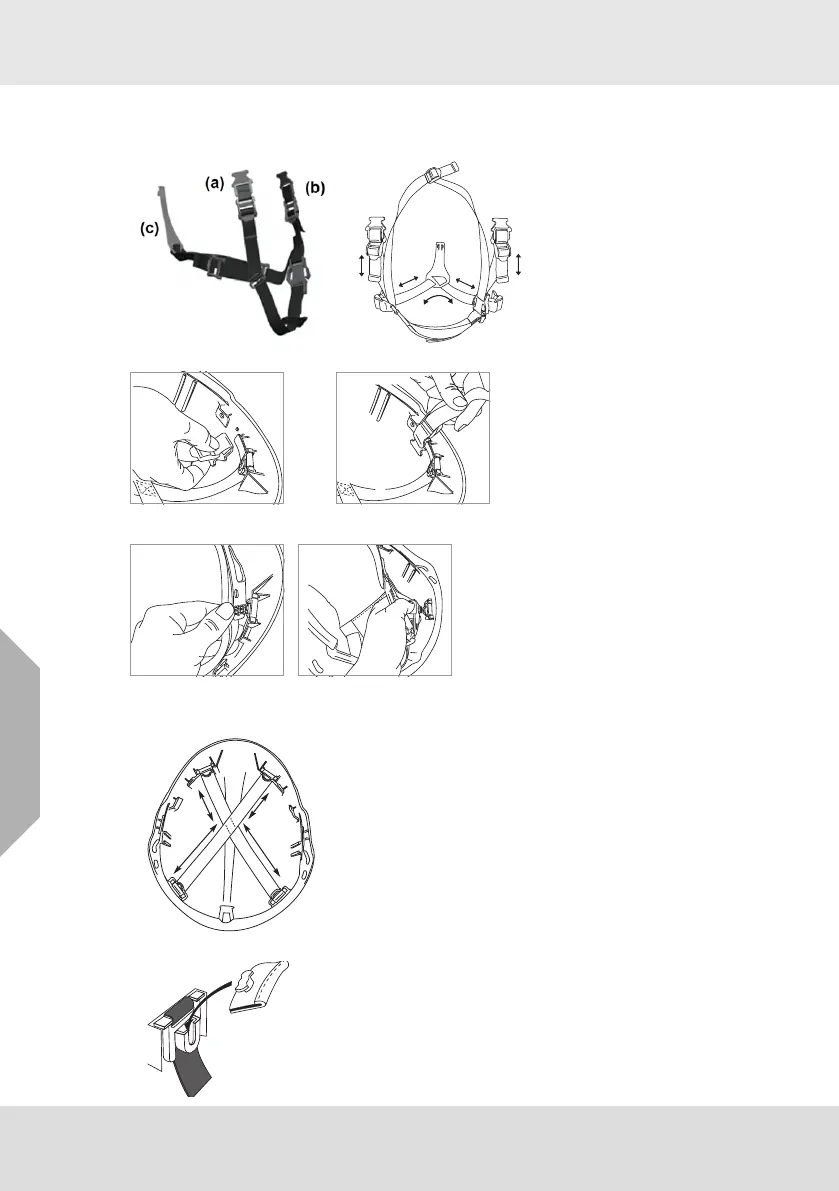

4 Replacing Spare Parts
Chin Strap
Ratchet Headband
Suspension
(1) Remove the rear clamp (c).
EN16471 / EN16473 EN12492
(2) Remove the front points (a)
and (b).
(3) Chin Strap EN12492:
Release top strap.
 Carefully remove the ratchet headband
by undoing the front and rear snaps from
their slots.
Front
(1) Remove the straps by releasing them from their fastening
points.
(2) Fit the suspension system into the four slots, the shortest
straps go into the slots in the front.
Rear
(3) During re-assembly, fit the strap behind the bracket.
(c)
(a)
(b)
