MSD 6520 - HONDA IGNITIONS WIRING (CONT.); Factory External Coil Wiring (Honda;Acura); GENERAL IMPORT WIRING

22 INSTALLATION INSTRUCTIONS
AUTOTRONIC CONTROLS CORPORATION • 1490 HENRY BRENNAN DR., EL PASO, TEXAS 79936 • (915) 857-5200 • FAX (915) 857-3344
Wiring a Toyota with a Tach Adapt PN 8910HEI.

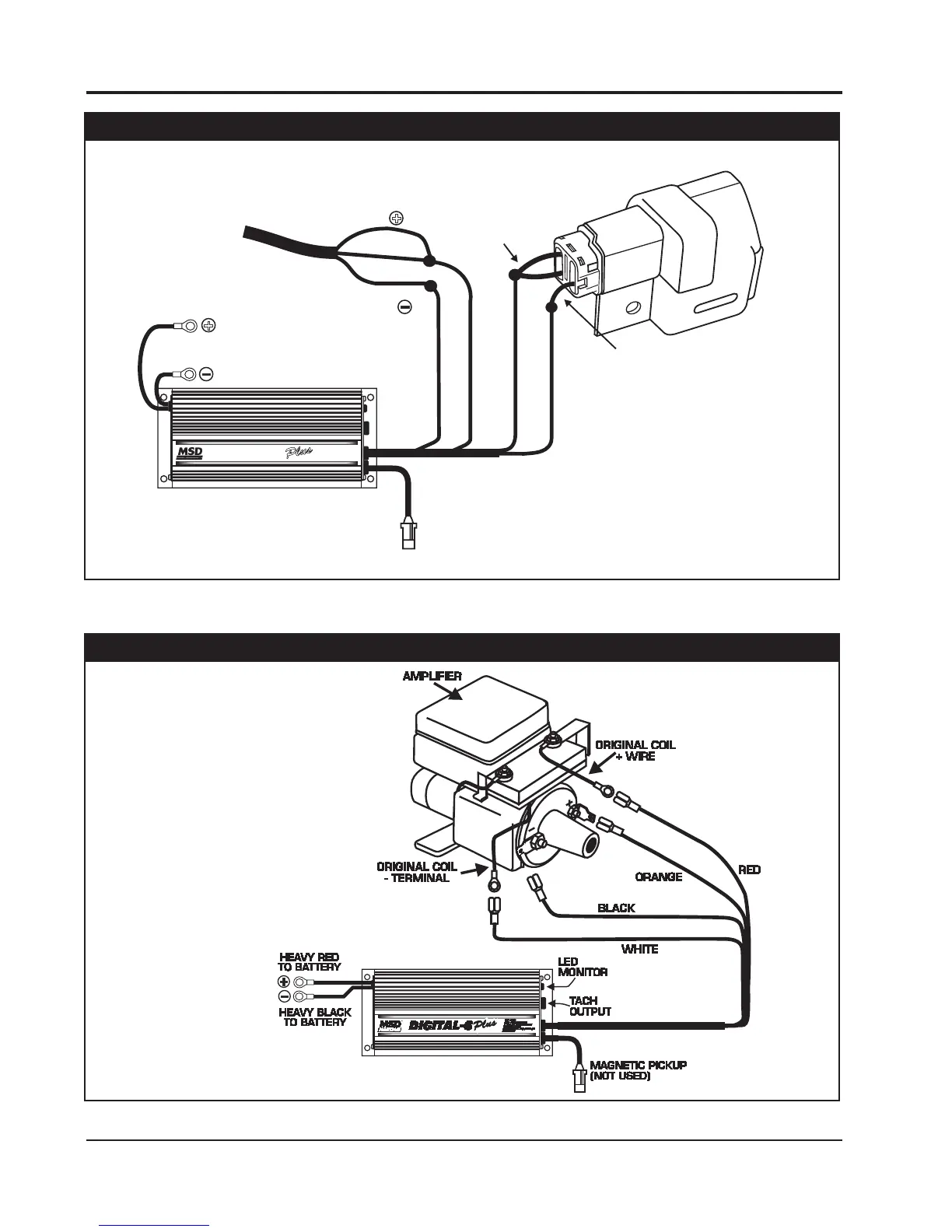

GENERAL IMPORT WIRING
N OT E : R e mo ve th e
coil terminal wires. The
negative wire connects
t o M S D Whi t e. The
positive wire connects
to MSD Red. The MSD
Orange connects to the
coil positive terminal,
Black connects to the
coil negative terminal.
GREEN OR BLUE
GREEN OR BLUE
(ORIGINAL COIL )
YELLOW AND BLACK/YELLOW
(ORIGINAL COIL )
BLACK/YELLOW
YELLOW AND
RED
WHIT
E
ORANGE
BLACK
ORIGINAL COIL
HARNESS
+
MAGNETIC PICKUP
(NOT USED)
HEAVY RED
HEAVY BLACK
TO BATTERY
TO BATTERY
IGNITION
TM
DIGITAL-6
PN 6520
PROGRAMMABLE
2 STAGE REV-LIMITER
STEP RETARD
CAPACITIVE DISCHARGE
IGNITION
Plus
+
HONDA IGNITIONS Wiring a Factory External Coil Honda/Acura .
