MSD 6520 - HONDA IGNITIONS WIRING; Internal Coil Wiring; Blaster Coil and Power Cap Wiring

INSTALLATION INSTRUCTIONS 21
AUTOTRONIC CONTROLS CORPORATION • 1490 HENRY BRENNAN DR., EL PASO, TEXAS 79936 • (915) 857-5200 • FAX (915) 857-3344

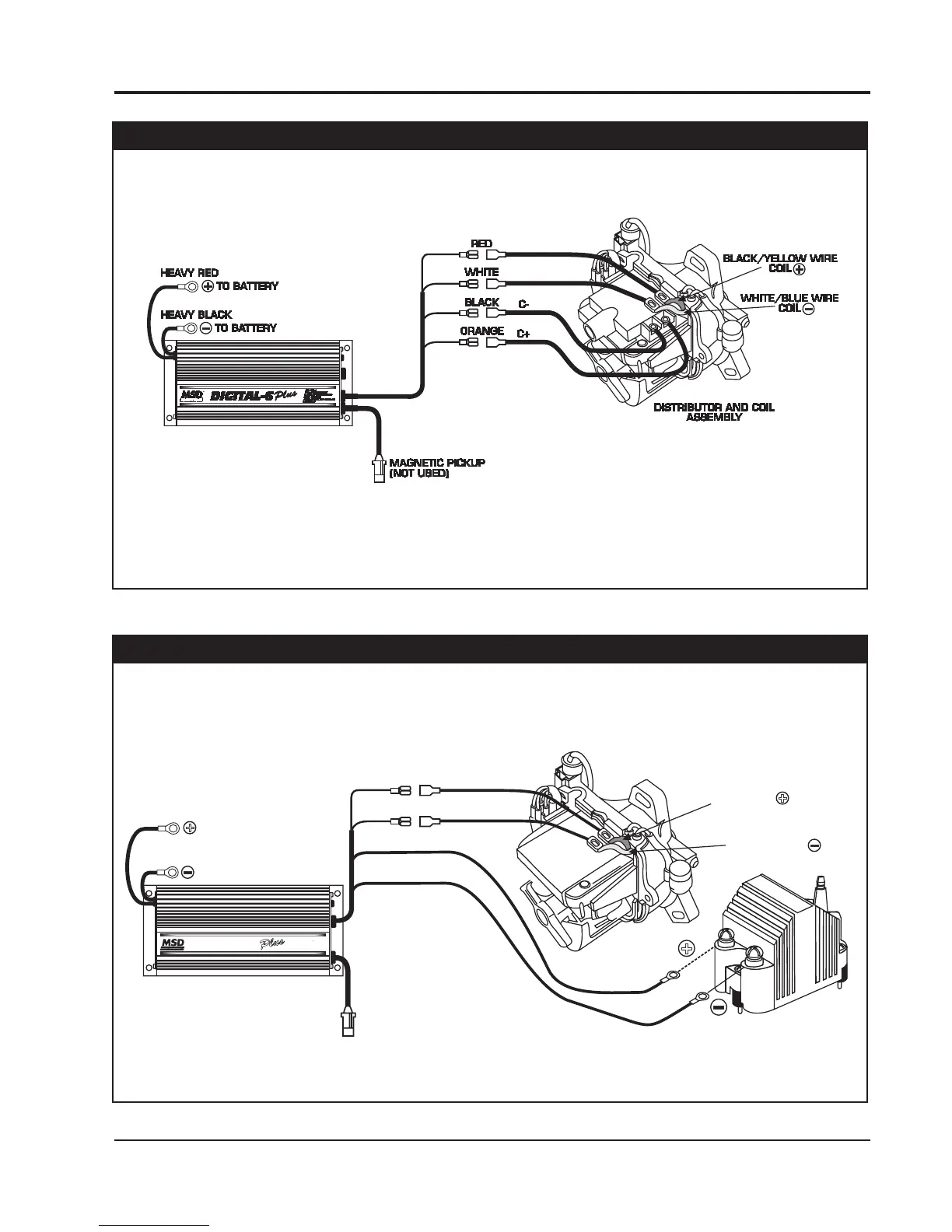

HONDA IGNITIONS Wiring a Honda with Internal Coil.
HONDA IGNITIONS Wiring a Honda with a Blaster Coil and Power Cap.
WHITE
IGNITION 12 VOLTS
BLACK/YELLOW WIRE
ORIGINAL COIL
TRIGGER WIRE
WHITE/BLUE WIRE
ORIGINAL COIL
DISTRIBUTOR
ASSEMBLY
WITHOUT COIL
COIL
REMOVED
BLASTER SS COIL
PN 8207
RED
ORANGE
BLACK
+
ORANGE
BLACK
+
MAGNETIC PICKUP
(NOT USED)
HEAVY RED
HEAVY BLACK
TO BATTERY
TO BATTERY
IGNITION
TM
DIGITAL-6
PN 6520
PROGRAMMABLE
2 STAGE REV-LIMITER
STEP RETARD
CAPACITIVE DISCHARGE
IGNITION
Plus
+
MSD offers a Power Cap to convert your
internal coil Honda to external coil for most
popular models.
