20
INSTALLATION INSTRUCTIONS
AUTOTRONIC CONTROLS CORPORATION • 1490 HENRY BRENNAN DR., EL PASO, TEXAS 79936 • (915) 857-5200 • FAX (915) 857-3344
CHRYSLER IGNITIONS Wiring a Late Model Dodge with 2-pin connector.
Wiring a Toyota with a Tach Adapt PN 8910HEI.

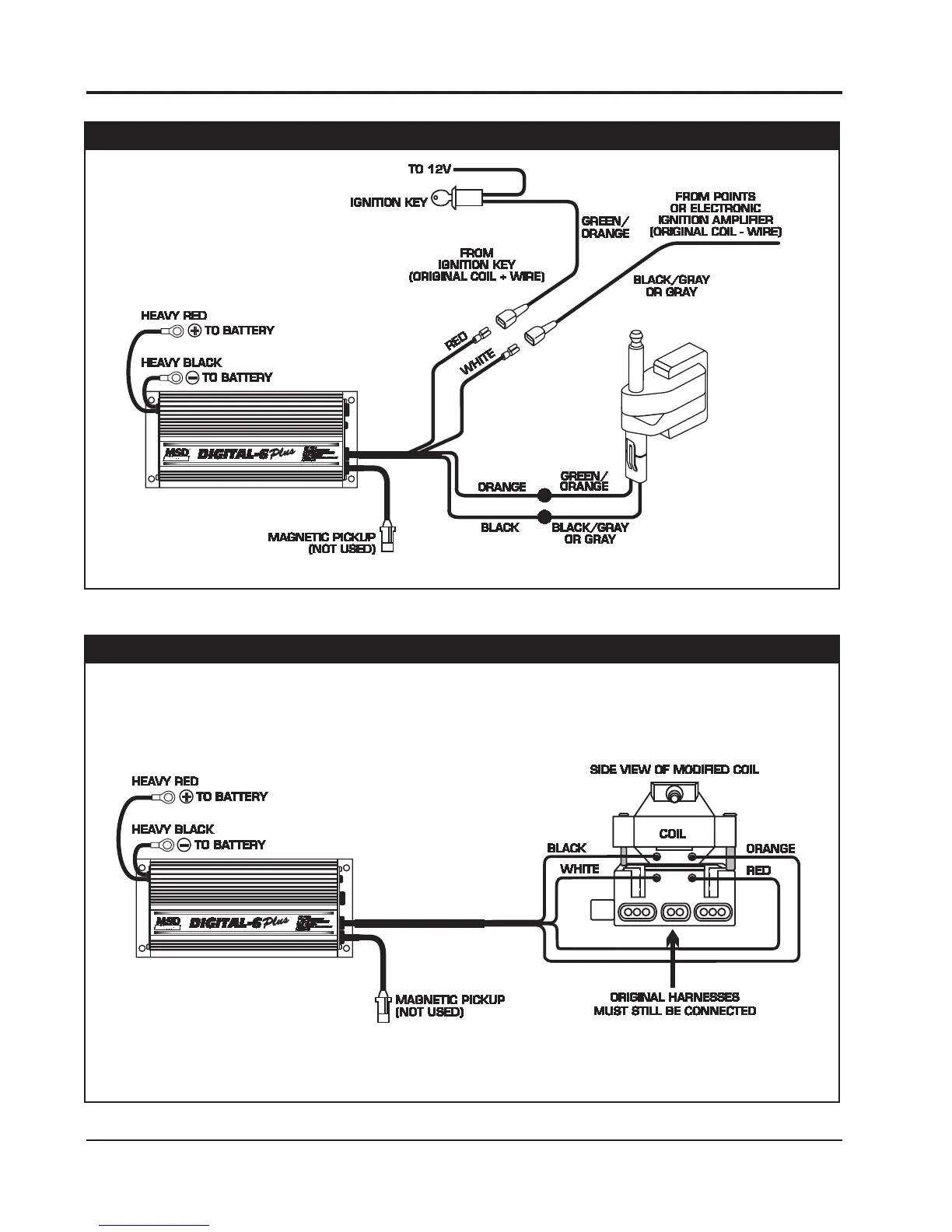

CHRYSLER IGNITIONS Wiring a Jeep with Integrated Coil/Module Assembly.
MSD offers a Wiring Kit, PN 8813, that allows you to modify the original Jeep Ignition
Module/Coil assembly. This style of ignition is used in many 1987-1989 models. The
drawing shows the installation with the coil already modified.
NOTE: Original wiring must be cut.
