INSTALLATION INSTRUCTIONS
5

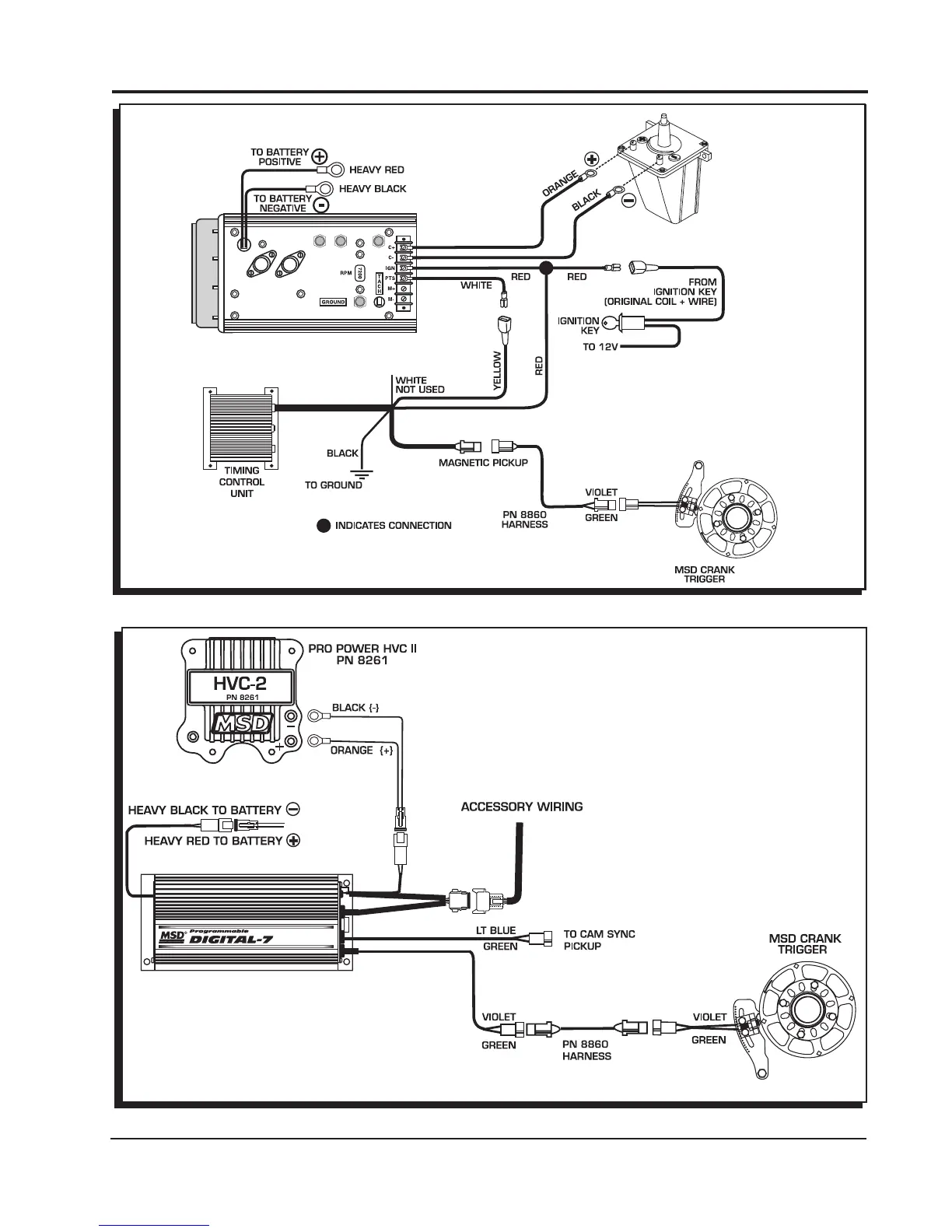

Figure 7 Wiring to an MSD 7AL-2 Ignition and Timing Control.
Figure 8 Wiring to an MSD Programmable Digital-7 Series Ignition Control.
