LGA775 CPU and Cooler Installation (CPU Clip is optional)

When you are installing the CPU, make sure the CPU has a cooler attached on the top to prevent

overheating. If you do not have the cooler, contact your dealer to purchase and install them

before turning on the computer. Meanwhile, do not forget to apply some silicon heat transfer

compound on CPU before installing the cooler for better heat dispersion.

Follow the steps below to install the CPU & cooler correctly. Wrong installation will cause the

damage to your CPU & mainboard.

1. The CPU has a land side cover on the bottom to protect the CPU contact from damage.

Rotate it to make the pin 1 indicator (yellow triangle) in the left-bottom

corner. The availability of it depends on the CPU packing.

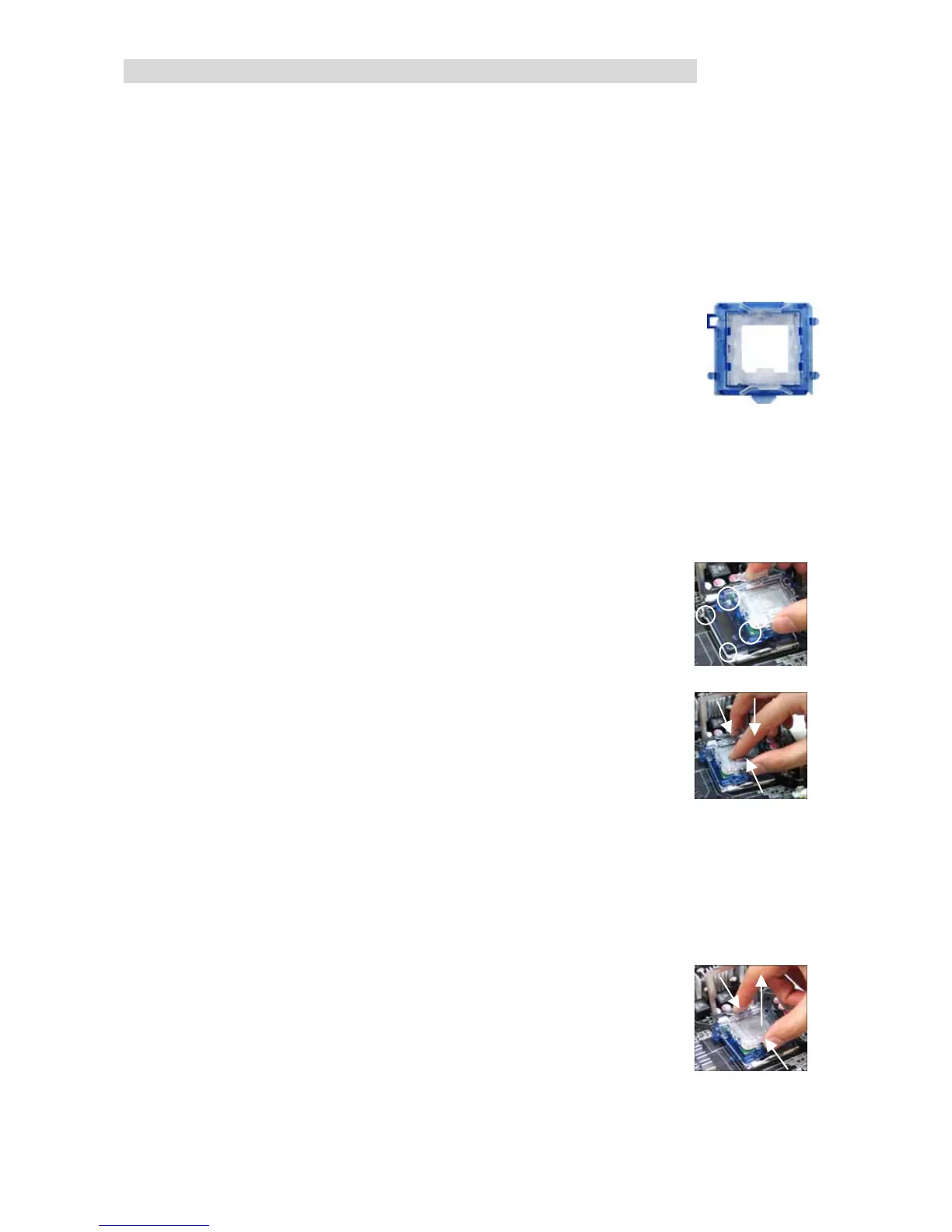

2. Take out the accompanying CPU Clip (shown in the right) and rotate it

for the same direction as the CPU (Pin 1 indicator is in the left-bottom

corner).

3. Use 2 hands to remove the land side cover (if any). Please note not to touch the pins.

4. Align the two pin 1 indicators (the triangles on the CPU & the CPU Clip), and use the CPU

Clip to clip the CPU up, pressing the clips on both sides to the center, as the arrows

shown.

5. The CPU has a plastic cap on it to protect the contact from damage. Before you have

installed the CPU, always cover it to protect the socket pin.

6. Remove the cap from lever hinge side. The pins of socket reveal.

7. Lift the load lever up and open the load plate.

8. Correctly align the triangle of CPU Clip with the CPU chamfer, and

the square on the CPU Clip to the hook of the socket.

9. Use your thumb and the middle fingers to push the clips to release

the CPU, then press down the CPU with your index finger to allow

the whole module to be installed onto the CPU socket.

10. The CPU is installed well on the CPU socket.

11. Visually inspect if the CPU is seated well into the socket, then

remove the CPU Clip with 2 fingers. Then cover the load plate onto

the package.

12. Press down the load lever lightly onto the load plate, and then secure the lever with the

hook under retention tab.

13. Align the holes on the mainboard with the cooler. Push down the cooler until its four clips

get wedged into the holes of the mainboard.

14. Press the four hooks down to fasten the cooler. Then rotate the locking switch (refer to the

correct direction marked on it) to lock the hooks.

15. Turn over the mainboard to confirm that the clip-ends are correctly

inserted.

Note: If you want to uninstall the CPU, align the 4 points (see Point 8 for

details) again and push the clip to lift up the CPU.
