MSI A68HM-E33 Series User Manual

Русский
101


.

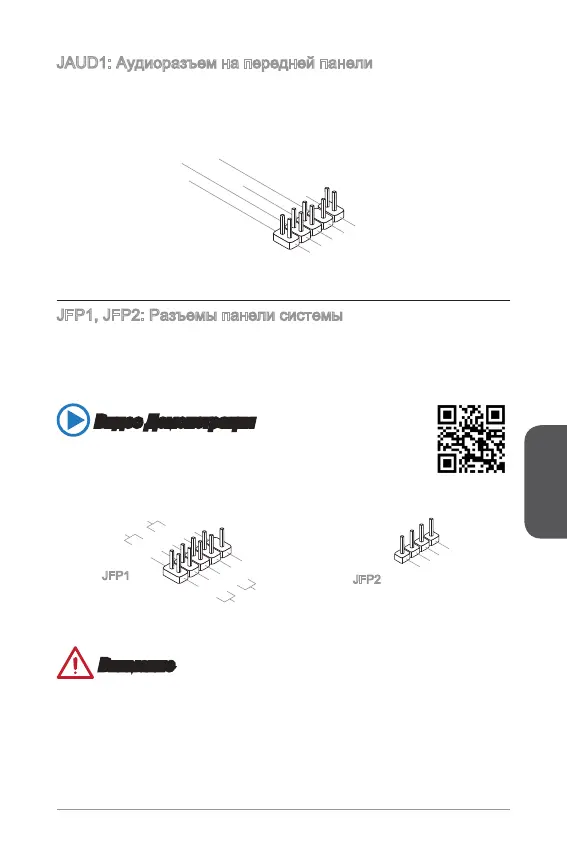

1.MIC L
3.MIC R
10.Head
Phone Detection
5.Head Phone
R
7.SENSE_SEN
D
9.Head Phone
L
8.No Pin
6.MIC Detection
4.NC
2
.Ground








 http://youtu.be/DPELIdVNZUI
3.Speaker
4.VCC5
1.Speaker
2.VCC5
1.+
3.-
10.No Pin
5.-
Reset S
witch
HDD LE
D
P
ower Switch
P
ower LED
7.+
9.Reserved
8.-
6.+
4.-
2.+
JFP1
JFP2

 



 
.

MSI A68HM-E33 Series Specifications

General

Form Factor	Micro ATX
Chipset	AMD A68H
Socket	FM2+
Memory Slots	2 x DIMM
Max Memory	32GB
PCI Slots	1
SATA Ports	4 x SATA 6Gb/s
USB 3.0 Ports	2
Memory Standard	DDR3
Audio	Realtek ALC887
LAN	Realtek RTL8111G
Video Outputs	VGA
USB 2.0 Ports	8 x USB 2.0 (4 rear, 4 via internal headers)
