MSI A68HM-E33 Series User Manual

Русский
91









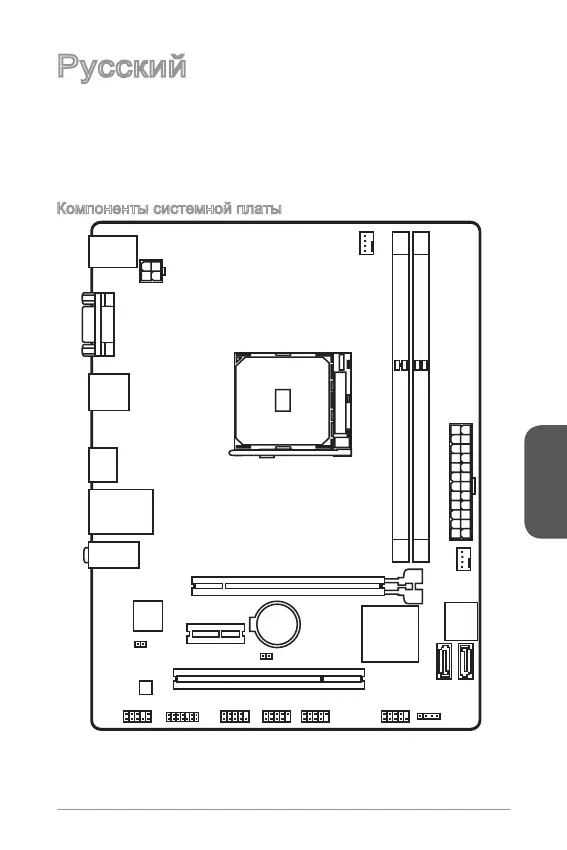

BAT1
Top:LANJack
Bottom: USB2.0 ports
Top
Bottom:
:mouse
keyboard
T:
M:
B:
Line-In
Line-Out
Mic
VGAport
USB3.0 ports
HDMIport
JAUD1
JTPM1
PCI_E1
PCI_E2
PCI1
JCI1
JBAT1
CPUFAN
SYSFAN1
SATA3_4
JPWR1
DIMM1
DIMM2
JPWR2
JCOM1JUSB2 JUSB1 JFP1
JFP2
SATA1SATA2

MSI A68HM-E33 Series Specifications

General

Form Factor	Micro ATX
Chipset	AMD A68H
Socket	FM2+
Memory Slots	2 x DIMM
Max Memory	32GB
PCI Slots	1
SATA Ports	4 x SATA 6Gb/s
USB 3.0 Ports	2
Memory Standard	DDR3
Audio	Realtek ALC887
LAN	Realtek RTL8111G
Video Outputs	VGA
USB 2.0 Ports	8 x USB 2.0 (4 rear, 4 via internal headers)
