English
16
6. Locate the CPUFAN connector on the motherboard.
7. Place the heatsink on the motherboard with the fan’s cable facing towards the
fan connector and the fasteners matching the holes on the motherboard.

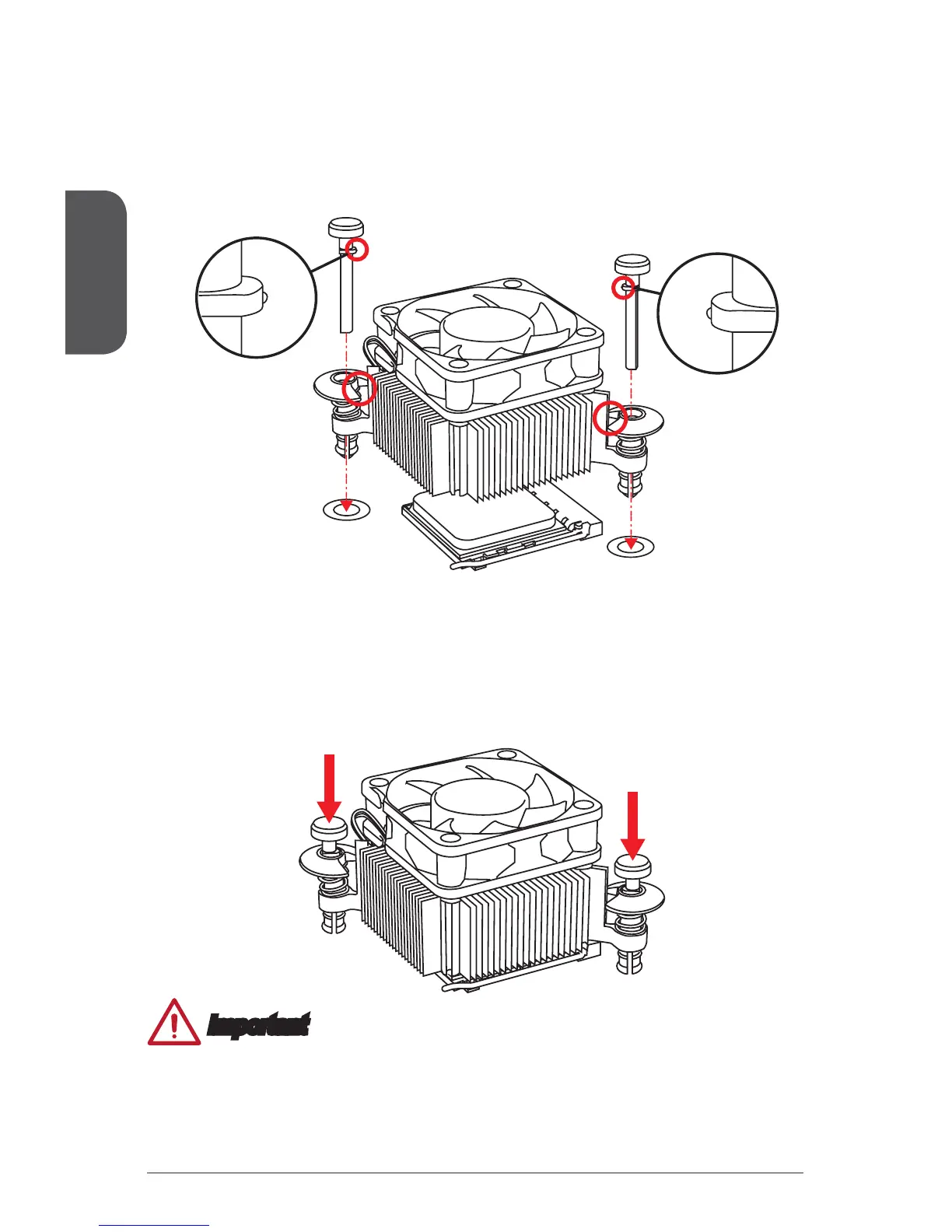

8. Align the protrusion of the push-pin with the notch of the fastener as shown in
the picture. Insert the two push-pins into the two fasteners.
Important
Con󰘰rm that the APU cooler has formed a tight seal with the APU before booting
your system.
Please refer to the documentation in the APU cooler package for more details
about APU cooler installation.
9. Push down the push-pins until the two fasteners get wedged into the holes on
the motherboard. Press the two fasteners down to fasten the heatsink. As each
fastener locks into position a click should be heard.
10. Inspect the motherboard to ensure that the fastener-ends have been properly
locked in place.
11. Attach the fan cable to the CPUFAN connector on the motherboard.
